1973 Yamaha SW433C Head Lamp Diagram

← All diagrams

Find the part on the Head Lamp diagram for your 1973 Yamaha SW433C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

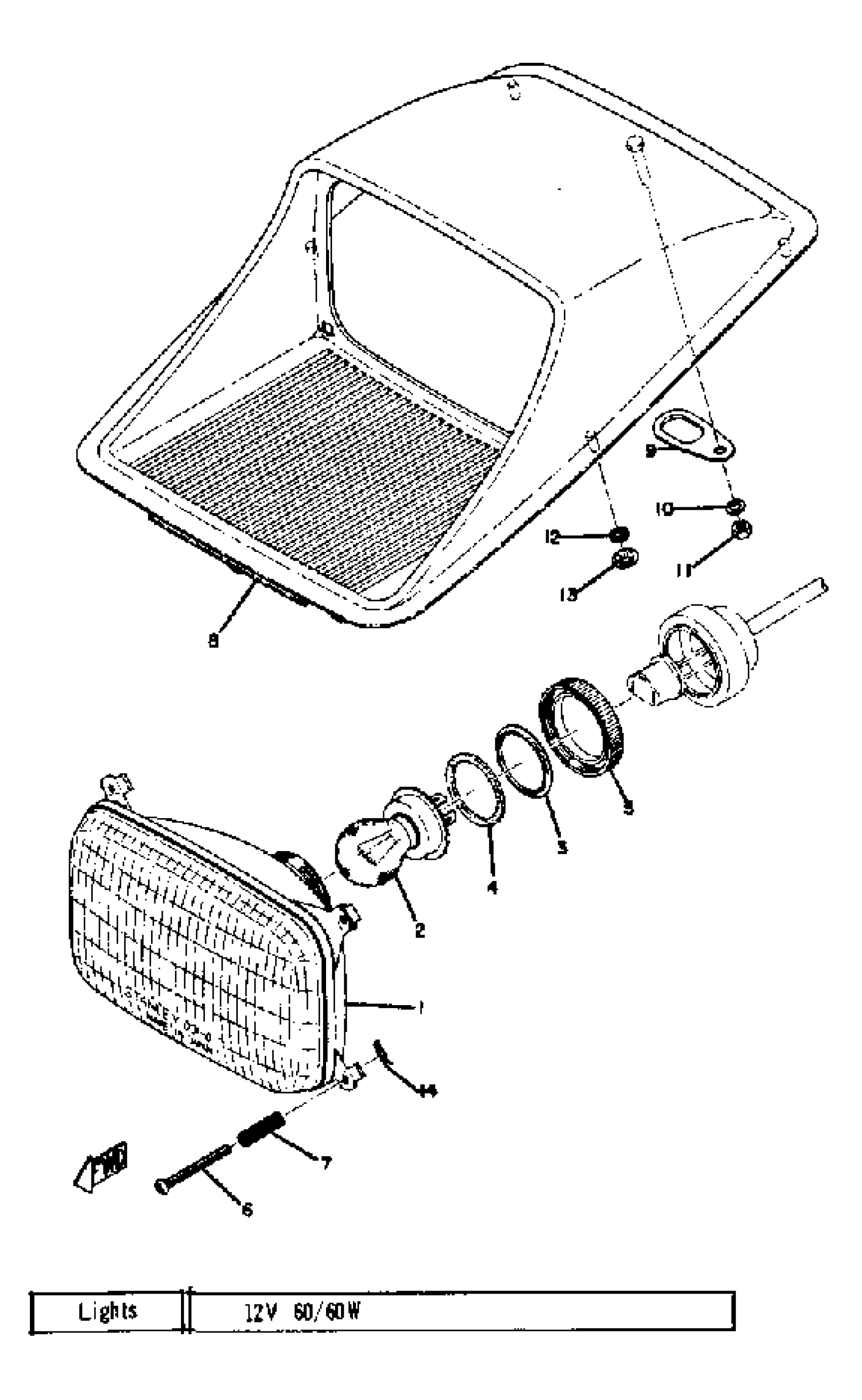

1973 Yamaha SW433C Head Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LENS ASSEMBLY

(838-84320-01-00)

1
Out of stock

2

. BULB, HEADLIGHT

838-84314-00-00

1
Out of stock

3

. SPACER

838-84328-00-00

1
Out of stock

4

. WASHER, SPECIAL

838-84327-00-00

1
Out of stock

5

. NUT

838-84317-00-00

1
Out of stock

6

SCREW, ADJUSTING

8M6-84331-00-00

1

$14.80

In stock

7

SPRING, ADJUST SCREW

8A5-84332-00-00

1

$7.40

In stock

8

BODY, HEADLIGHT

(838-84311-00-00)

1
Out of stock

9

CLAMP

(90464-16009-00)

1
Out of stock

10

WASHER(3SX)

92907-05100-00

1

$6.18

In stock

11

NUT, HEXAGON

95317-05600-00

1

$1.10

In stock

12

EMBLEM 3

838-77143-00-00

1
Out of stock

13

NUT 6504269100

90183-05003-00

1
Out of stock

14

CLAMP, CORD

(807-84351-00-00)

1
Out of stock
