CARBURETOR

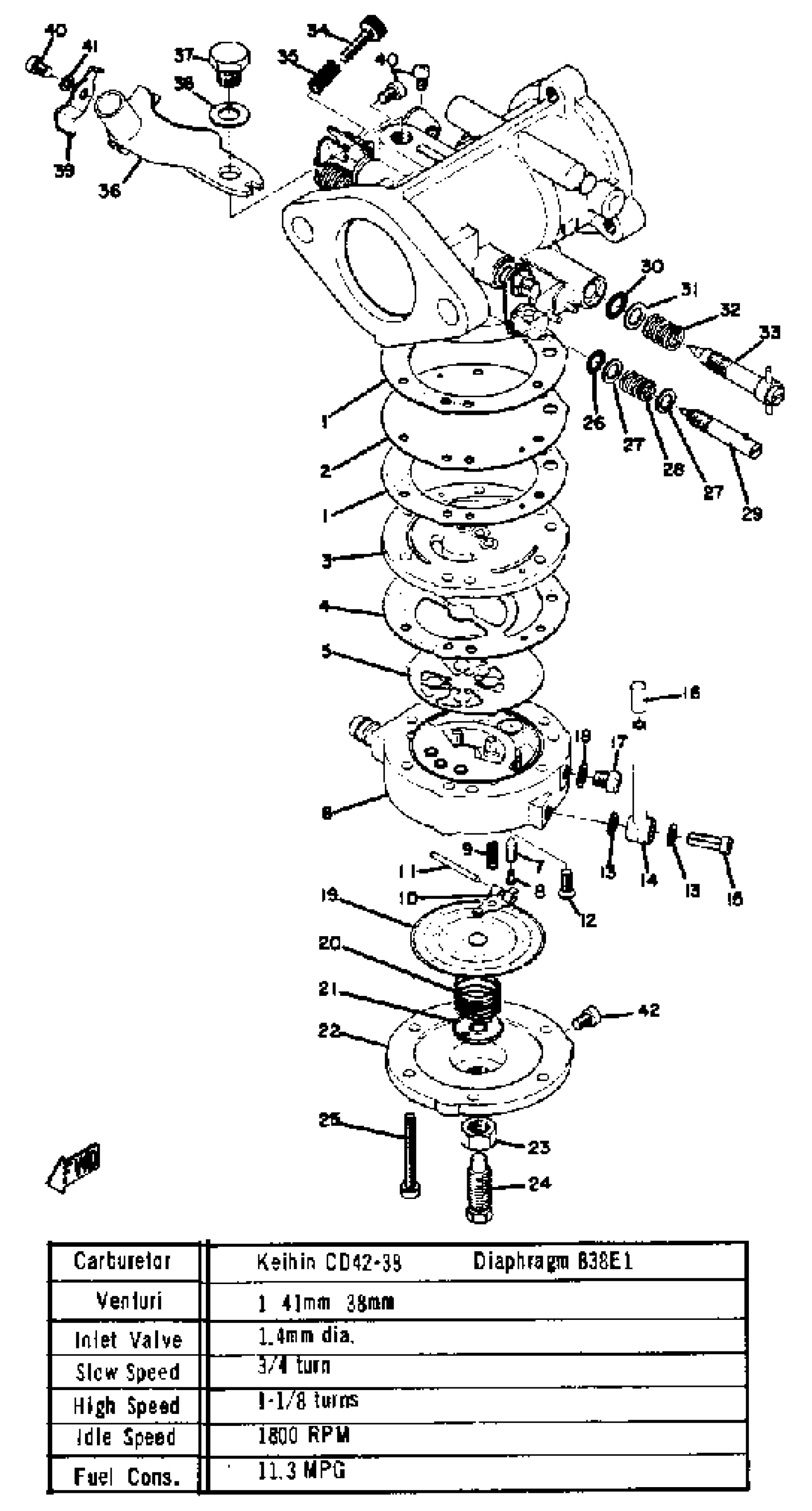

Yamaha SW433C 1973 CARBURETOR Diagram
#
1
CARBURETOR ASSEMBLY 1
(838-14501-00-00)
Unavailable
1
GASKET
838-14536-09-00
Unavailable
2
. DIAPHRAGM, PUMP
834-14541-00-00
Unavailable
3
BODY, PUMP 1
(838-14542-00-00)
Unavailable
4
GASKET
834-14553-09-00
Unavailable
5
VALVE,CHECK
806-14552-01-00
$56.99
6
BODY, PUMP 2
(838-14543-01-00)
Unavailable
7
VALVE
838-14546-00-00
$43.99
8
. PIN, FLOAT
676-14186-00-00
Unavailable
9
. SPRING
810-14556-00-00
Unavailable
10
ARM, FLOAT
(810-14547-00-00)
Unavailable
11
PIN, FLOAT ARM
(806-14548-00-00)
Unavailable
12
SCREW, FLAT
98707-03008-00
$7.49
13
. WASHER
806-14559-00-00
Unavailable
14
. PIPE, AIRVENT
810-14197-02-00
Unavailable
15
. SCREW
8A1-14592-00-00
Unavailable
16
. CAP, BLIND
810-24462-01-00
Unavailable
17
SCREW
(806-14567-01-00)
Unavailable
18
. WASHER
810-14597-00-00
Unavailable
19
DIAPHRAGM
810-14545-00-00
Unavailable
20
SPRING
(810-14555-00-00)
Unavailable
21
SEAT, SPRING
(810-14136-00-00)
Unavailable
22
BODY, PUMP 3
(810-14544-00-00)
Unavailable
23
. NUT
95380-08700-00
Unavailable
24
. SCREW, STOP
824-14565-00-00
Unavailable
25
SCREW
(824-14567-00-00)
Unavailable
26
. O-RING
824-14563-00-00
Unavailable
27
. WASHER
838-14596-00-00
Unavailable
28
SPRING, AJST SCREW
(824-14531-00-00)
Unavailable
29
SCREW, ADJUST
(838-14522-00-00)
Unavailable
30
. O-RING
824-14564-00-00
Unavailable
31
. WASHER
838-14597-00-00
Unavailable
32
SPRING, AJST SCREW
(824-14533-00-00)
Unavailable
33
. SCREW, ADJUST
838-14521-00-00
Unavailable
34
SCREW, STOP
(810-14523-00-00)
Unavailable
35
SPRING, AJST SCREW
(806-14533-00-00)
Unavailable
36
BRACKET, THROTTLE
(824-14571-00-00)
Unavailable
37
BOLT(8X2)
90101-08344-00
Unavailable
38
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
39
PLATE
(826-14527-00-00)
Unavailable
40
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
41
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
42
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
