1972 Yamaha SW433B Transmission Diagram

← All diagrams

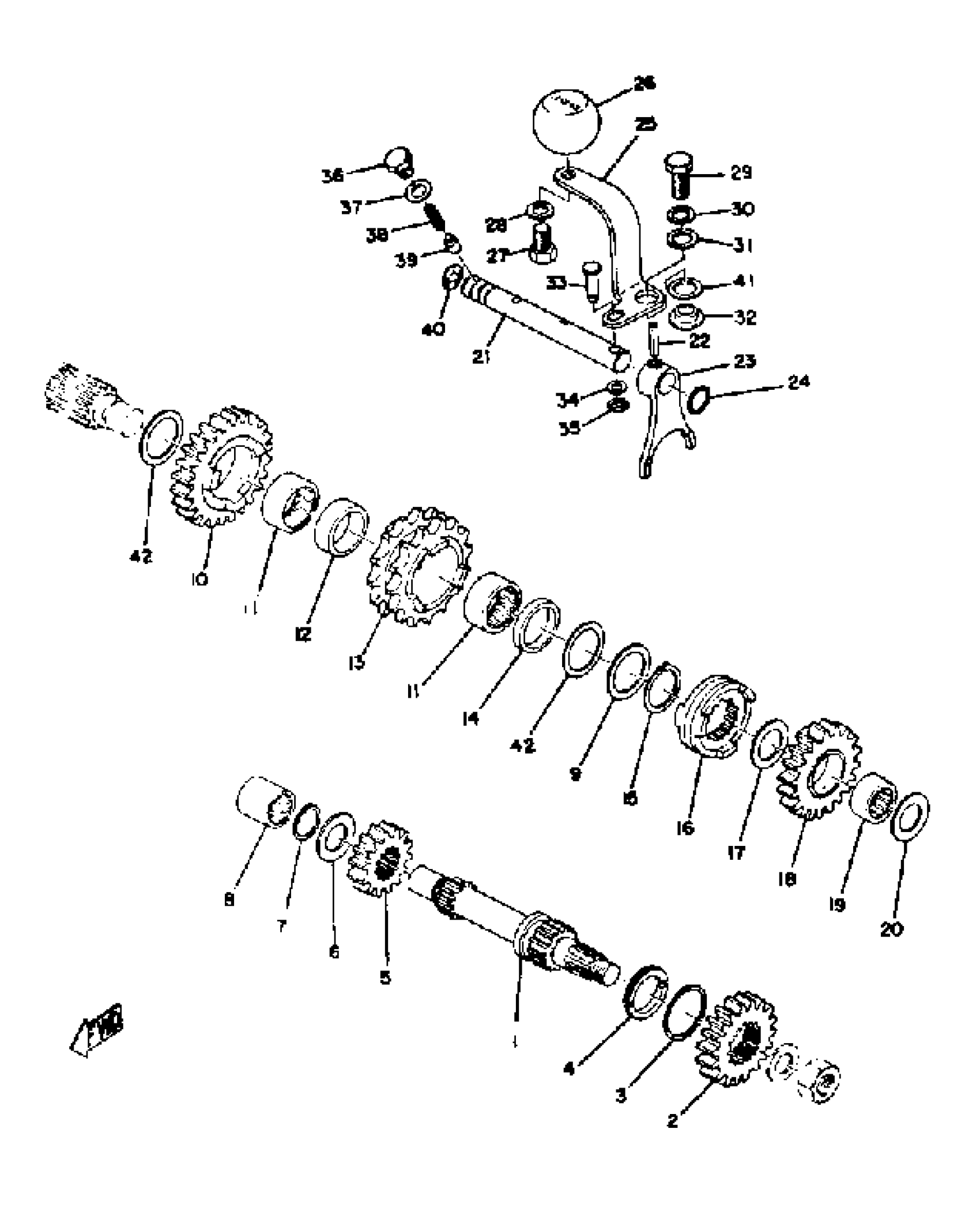

Find the part on the Transmission diagram for your 1972 Yamaha SW433B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha SW433B Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, DRIVE

(826-17421-00-00)

1
Out of stock

2

GEAR, 2ND WHEEL

826-17221-00-00

1
Out of stock

3

CIRCLIP(4A6)

99009-30400-00

1

$6.55

In stock

4

COLLAR

806-17645-00-00

1
Out of stock

5

GEAR, 3RD WHEEL

826-17231-00-00

1
Out of stock

6

SHIM

826-17219-00-00

1
Out of stock

7

CIRCLIP(1AR)

99009-15400-00

1

$5.10

In stock

8

BEARING, CYLINDER.#20

93320-31501-00

1
Out of stock

9

SHIM 3

826-17238-00-00

1
Out of stock

10

GEAR, 3RD PINION

826-17131-00-00

1
Out of stock

11

BEARING, CYLINDER.#15

93315-22414-00

1
Out of stock

12

COLLAR

90387-24183-00

1
Out of stock

13

SPRKT, CHAIN DR 14T

826-17682-40-00

1
Out of stock

13

SPRKT, CHAIN DR 15T

(826-17682-50-00)

1
Out of stock

14

COLLAR

(90387-24182-00)

1
Out of stock

15

CIRCLIP

99009-24400-00

—

$7.49

In stock

16

DOG, TRANS SHIFT

826-17492-00-00

1
Out of stock

17

WASHER, PLATE(39K)

90201-191J4-00

—
Out of stock

18

GEAR, 2ND PINION

826-17121-00-00

1
Out of stock

19

BRG,CYL-CAL ROLLER 12G KY

93315-21813-00

—

$31.48

In stock

20

SHIM 1

136-17417-00-10

1
Out of stock

21

BAR, SHIF FRK GDE 1

(826-18531-00-00)

1
Out of stock

22

PIN, SPRING

91690-40020-00

1

$3.30

In stock

23

FORK, SHIFT 1

826-18511-01-00

1
Out of stock

24

O-RING (137)

93210-12014-00

—

$5.92

In stock

25

LEVER

(826-18198-00-00)

1
Out of stock

26

KNOB, CHANGE

(826-18199-00-00)

1
Out of stock

27

BOLT(62E)

97013-08012-00

—

$2.48

In stock

28

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

29

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

30

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

31

SPACER

(90560-08065-00)

1
Out of stock

31

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

32

COLLAR

90387-08079-00

—
Out of stock

33

PIN, SPEC''L SHAPE

(90249-06019-00)

1
Out of stock

34

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

35

CIRCLIP(22K)

99080-05600-00

—

$6.17

In stock

36

BOLT(8X2)

90101-08344-00

—

$1.12

In stock

37

GASKET

90430-08023-00

1
Out of stock

38

—

$2.37

In stock

39

PIN, SPEC''L SHAPE

90249-07004-00

1
Out of stock

40

PLUG, EXPANSION

(90330-16002-00)

1
Out of stock

41

WASHER, WAVE (17W)

90206-12074-00

—

$6.98

In stock

42

SHIM

826-17229-00-00

1
Out of stock
