1972 Yamaha SW433B Pump Gear Unit Diagram

← All diagrams

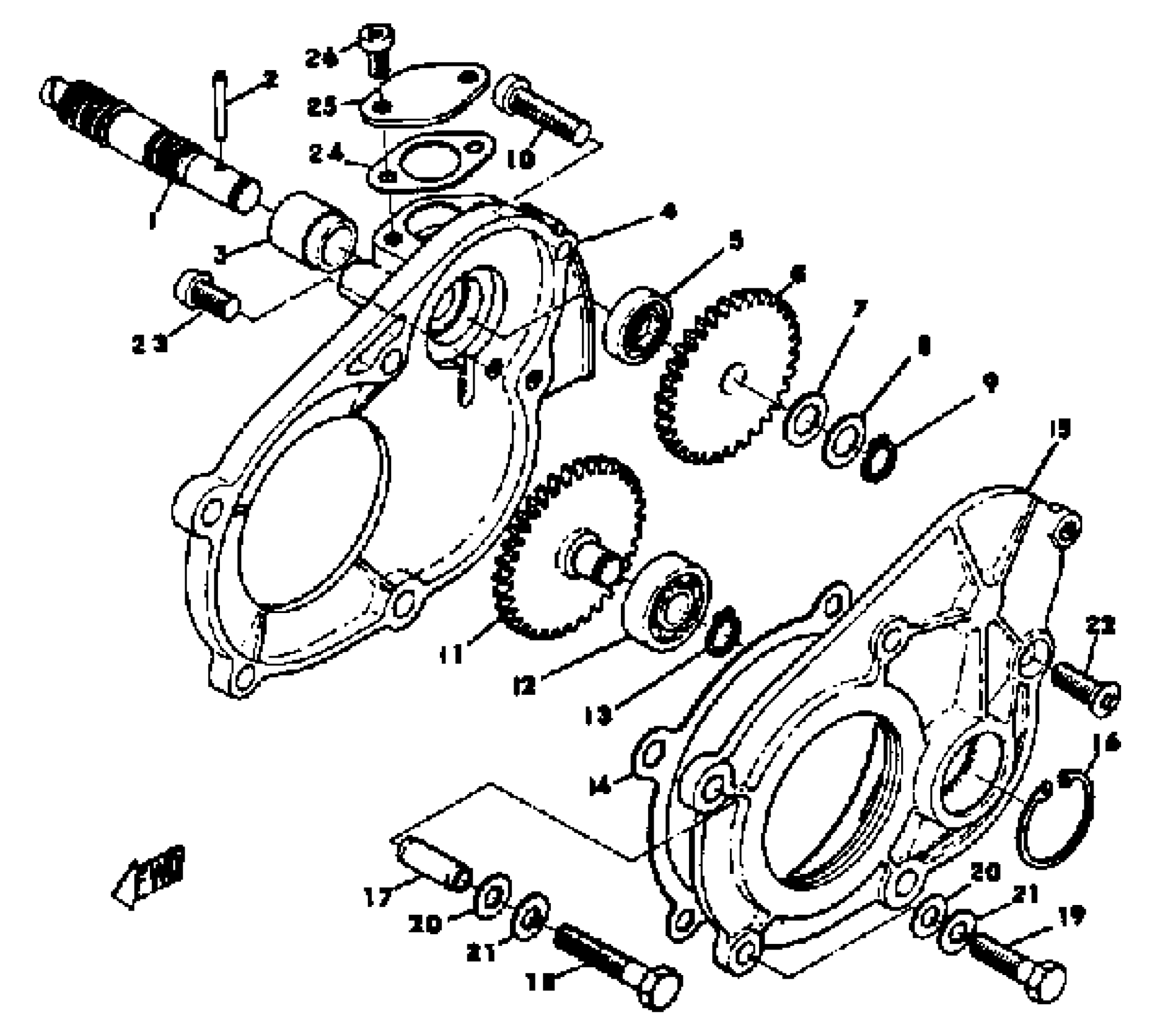

Find the part on the Pump Gear Unit diagram for your 1972 Yamaha SW433B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha SW433B Pump Gear Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, WORM

826-13175-00-00

1
Out of stock

2

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

3

METAL, WORM SHAFT OUTER

821-13176-00-00

1

$6.33

In stock

4

COVER, OIL PUMP

(821-15416-01-00)

1
Out of stock

5

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

6

GEAR, DRIVE 2

821-13188-00-00

—

$26.03

In stock

7

WASHER, WAVE (137)

90206-11016-00

—

$12.72

In stock

8

PLATE, CAM THRUST

137-13148-00-00

—

$3.28

In stock

9

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

10

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

11

GEAR, IDLE

(821-13179-00-00)

1
Out of stock

12

—

$29.35

In stock

13

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

14

GASKET, O/PMP CVR 1

821-15456-00-00

1
Out of stock

15

COVER, OIL PUMP R

(821-15426-01-00)

1
Out of stock

16

CIRCLIP, R-TYPE (R-26)

93420-26024-00

1
Out of stock

17

PIN, DOWEL

91810-18022-00

1
Out of stock

18

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

19

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

20

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

SCREW, FLAT

98707-06014-00

—
Out of stock

23

BOLT (661)

97013-06012-00

—

$4.71

In stock

24

GASKET

821-17818-02-00

—

$5.66

In stock

25

CAP, HOUSING

824-17819-00-00

1
Out of stock

26

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock
