1972 Yamaha SW433B Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1972 Yamaha SW433B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

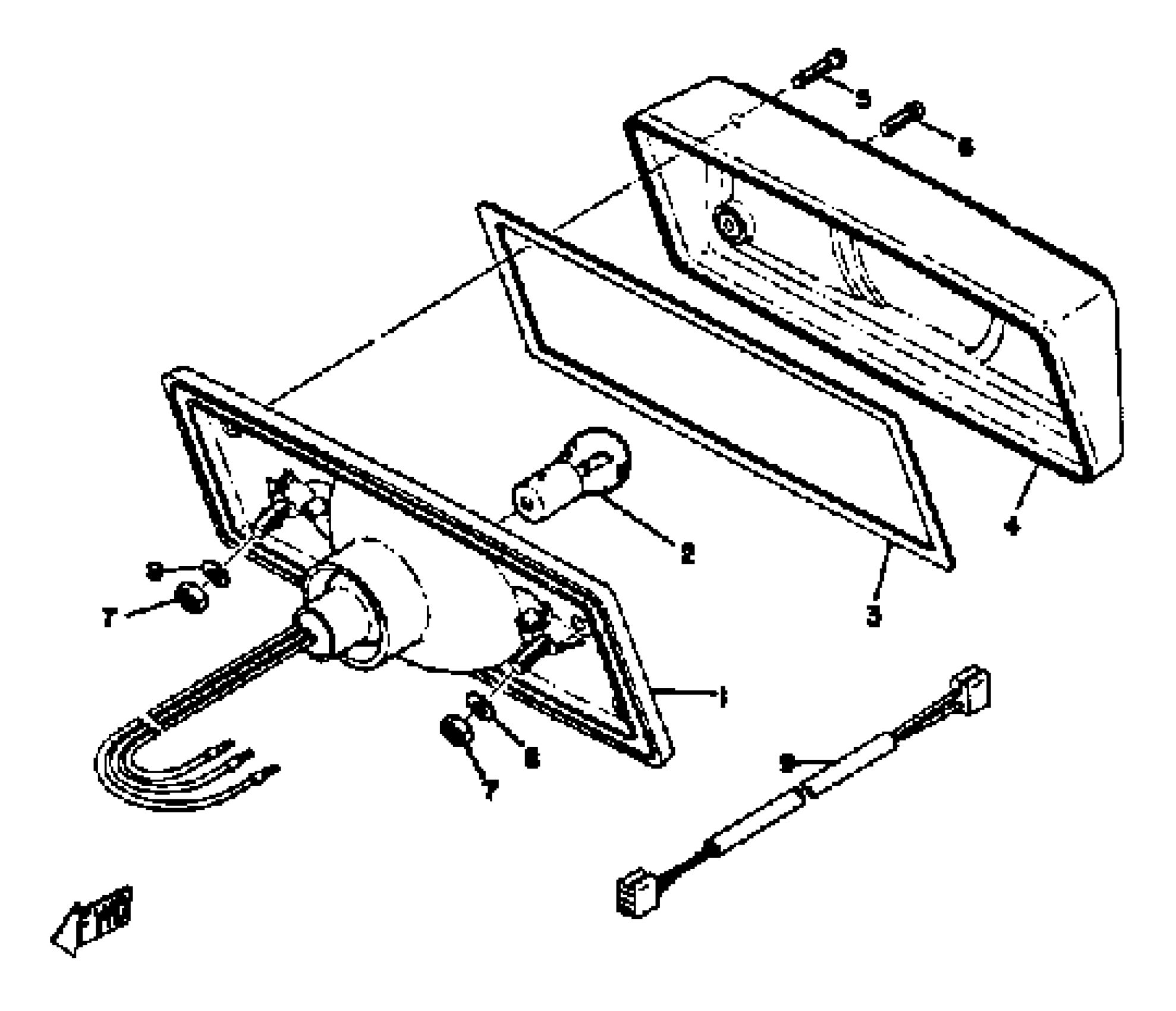

1972 Yamaha SW433B Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSEMBLY

821-84710-00-00

1
Out of stock

1

BASE, TAILLIGHT

(821-84711-01-00)

1
Out of stock

2

. BULB

35R-83311-00-00

1
Out of stock

3

SEAL

3TJ-14457-00-00

—
Out of stock

4

. LENS, TAILLIGHT

821-84721-00-00

1
Out of stock

5

SCREW, PAN

98507-04030-00

1

$1.51

In stock

6

SCREW, PAN HEAD(GA5)

98580-04014-00

1

$2.78

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

9

CORD, TAILLIGHT

822-84727-00-00

1
Out of stock
