1972 Yamaha SW433B Electric Starter Unit Diagram

← All diagrams

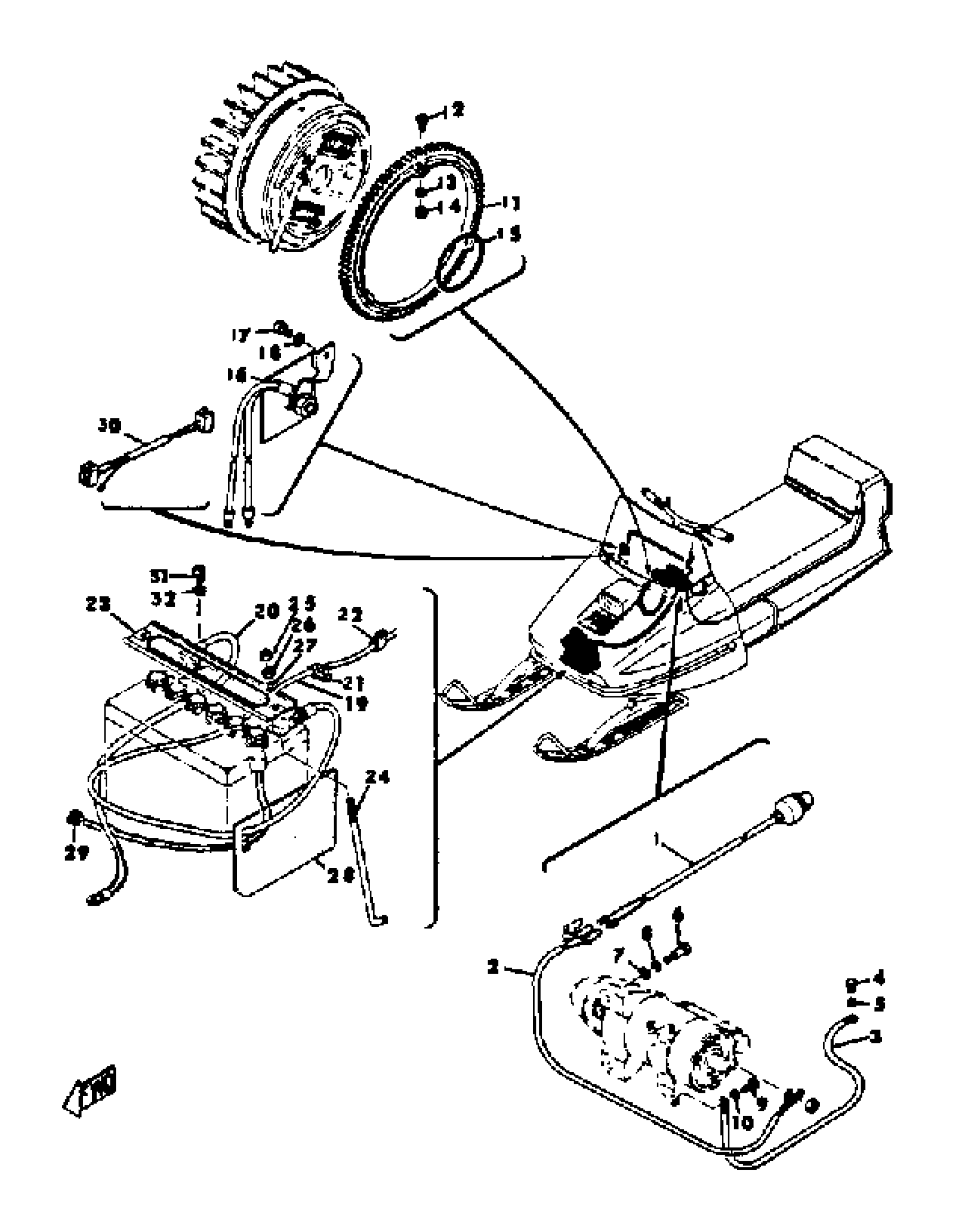

Find the part on the Electric Starter Unit diagram for your 1972 Yamaha SW433B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha SW433B Electric Starter Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER SWITCH ASSEMBLY

(811-83970-00-00)

1
Out of stock

2

WIRE, LEAD 2

(822-82127-00-00)

1
Out of stock

3

WIRE, LEAD

(819-82117-00-00)

1
Out of stock

4

BOLT(3JP)

97017-06010-00

1

$2.62

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

SCREW, SPEC''L SHAPE

90149-08056-00

1
Out of stock

7

WASHER, PLATE

(90201-09116-00)

1
Out of stock

8

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

9

SCREW PAN HEAD

98580-08020-00

—

$3.14

In stock

10

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

11

GEAR, RING

(811-81891-00-00)

1
Out of stock

12

SCREW, SPEC''L SHAPE

(90149-06061-00)

1
Out of stock

13

WASHER, SPECIAL

(811-81894-00-00)

1
Out of stock

14

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

15

O-RING

(93210-61117-00)

1
Out of stock

16

RECTIFIER ASSEMBLY

(812-81970-41-00)

1
Out of stock

17

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

WIRE, PLUS LEAD

824-82115-00-00

1
Out of stock

20

WIRE, MINUS LEAD

822-82116-00-00

1
Out of stock

21

BAND

(822-82591-00-00)

1
Out of stock

22

CLAMP

90465-06013-00

1
Out of stock

23

PLATE, BATT FITTING

(822-82136-00-00)

1
Out of stock

24

SCREW, SPEC''L SHAPE

(90149-06024-00)

1
Out of stock

25

NUT(650)

95380-06700-00

—

$6.17

In stock

26

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

27

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

28

SEAT, BATTERY

807-82122-00-00

1
Out of stock

28

SEAT, BATTERY

(807-82122-01-00)

1
Out of stock

29

GROMMET 152845180000

90480-12013-00

—
Out of stock

30

WIRE, LEAD

(827-82531-00-00)

1
Out of stock

31

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

32

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
