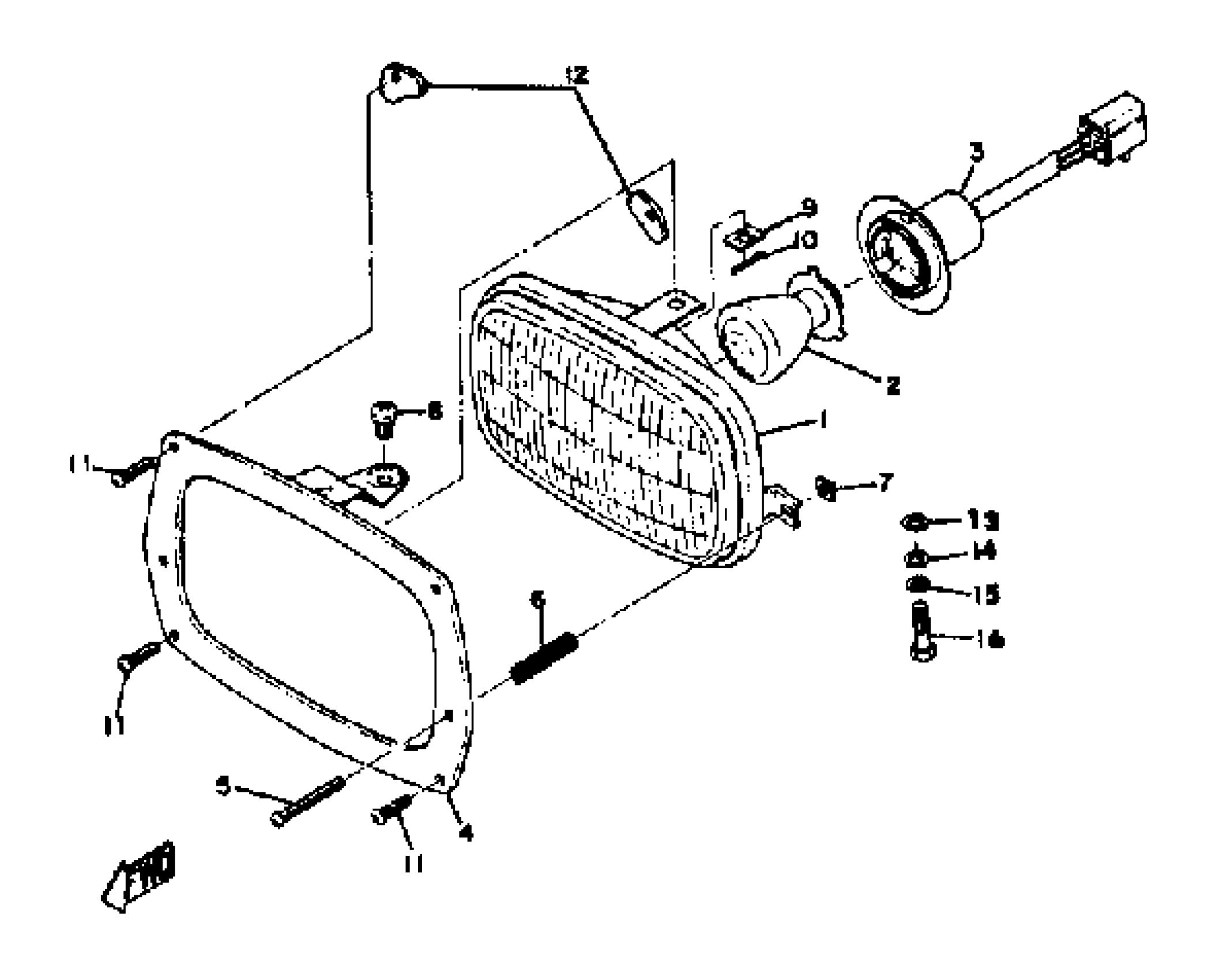

Yamaha SW433B 1972 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSEMBLY

(826-84310-00-00)

Unavailable

1

. LENS ASSEMBLY

826-84320-00-00

Unavailable

2

. BULB, HEADLIGHT

826-84314-00-00

Unavailable

3

. SOCKET

826-84312-00-00

Unavailable

4

RIM, HEADLIGHT

(811-84315-00-00)

Unavailable

5

SCREW, RIM ADJUSTING

(807-84331-00-00)

Unavailable

6

SPRING, SCREW

(807-84332-00-00)

Unavailable

7

NUT, ADJUSTING

(807-84334-00-00)

Unavailable

8

COLLAR, BODY FTNG

(811-84338-00-00)

Unavailable

9

NUT

(807-84326-00-00)

Unavailable

10

CLAMP, CORD

(807-84351-00-00)

Unavailable

11

SCREW, OVAL HEAD

98603-04015-00

Unavailable

12

NUT, BODY FITTING

(811-84316-00-00)

Unavailable

13

WASHER, PLAIN

(807-84344-00-00)

Unavailable

14

WASHER, PLAIN LARGE

92907-05200-00

$4.46

15

WASHER(3SX)

92907-05100-00

Unavailable

16

BOLT(3JK)

97027-05020-00

Unavailable
