FUEL TANK

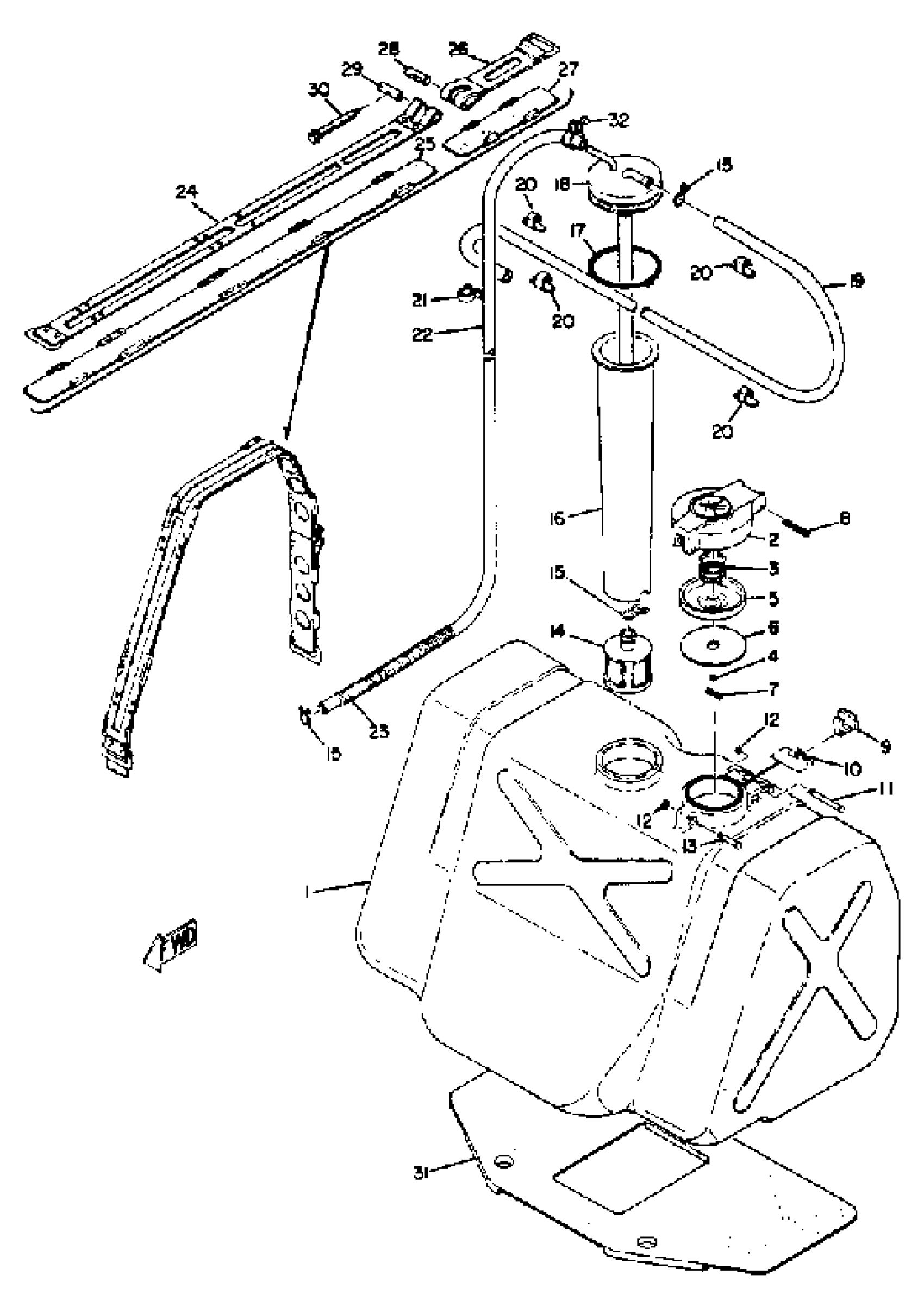

Yamaha SW433B 1972 FUEL TANK Diagram
#
1
FUEL TANK
(826-24111-00-00)
Unavailable
2
BODY, CAP
8A5-24611-00-00
Unavailable
6
GASKET, CAP
256-24612-00-00
Unavailable
7
PIN, SPRING
91690-30016-00
Unavailable
10
SPRING, TORSION (813-24637-00)
90508-08003-00
Unavailable
13
PIN, SPEC''L SHAPE
90249-03016-00
Unavailable
14
FILTER ASSEMBLY
(813-24560-01-00)
Unavailable
16
PIPE, SUCTION 2
(822-24336-00-00)
Unavailable
17
SPRING, TENSION (8R4)
90506-06261-00
Unavailable
18
PIPE, SUCTION 1
(822-24335-00-00)
Unavailable
18
PIPE, SUCTION 1
(822-24335-01-00)
Unavailable
19
PIPE, OVERFLOW
(816-24318-00-00)
Unavailable
19
HOSE
90446-09015-00
Unavailable
20
CLAMP, FUEL PIPE 1
(813-24366-00-00)
Unavailable
21
CLAMP
(90463-07002-00)
Unavailable
22
PIPE, FUEL 1
(826-24311-00-00)
Unavailable
22
HOSE
90446-11040-00
Unavailable
23
SPRING, COMPRESSION (3LD4)
90501-084G9-00
Unavailable
24
BAND, TNK FITTING 1
(822-24173-00-00)
Unavailable
25
DAMPER, LOCATING 3
822-24183-00-00
Unavailable
26
BAND, TNK FITTING 2
810-24199-00-00
Unavailable
26
BAND, TNK FITTING 1
(822-24173-00-00)
Unavailable
26
BAND, TNK FITTING 2
(822-24199-00-00)
Unavailable
27
DAMPER, LOCATING 4
(822-24184-00-00)
Unavailable
28
NUT, SPEC''L SHAPE (806-24146-00)
90179-05030-00
Unavailable
29
CLAMP
806-24135-00-00
Unavailable
30
SCREW, SPEC''L SHAPE (821-24176-00)
90149-05006-00
Unavailable
31
DAMPER, LOCATING 1
(826-24181-00-00)
Unavailable
32
CLIP(3BM)
90467-10135-00
Unavailable
