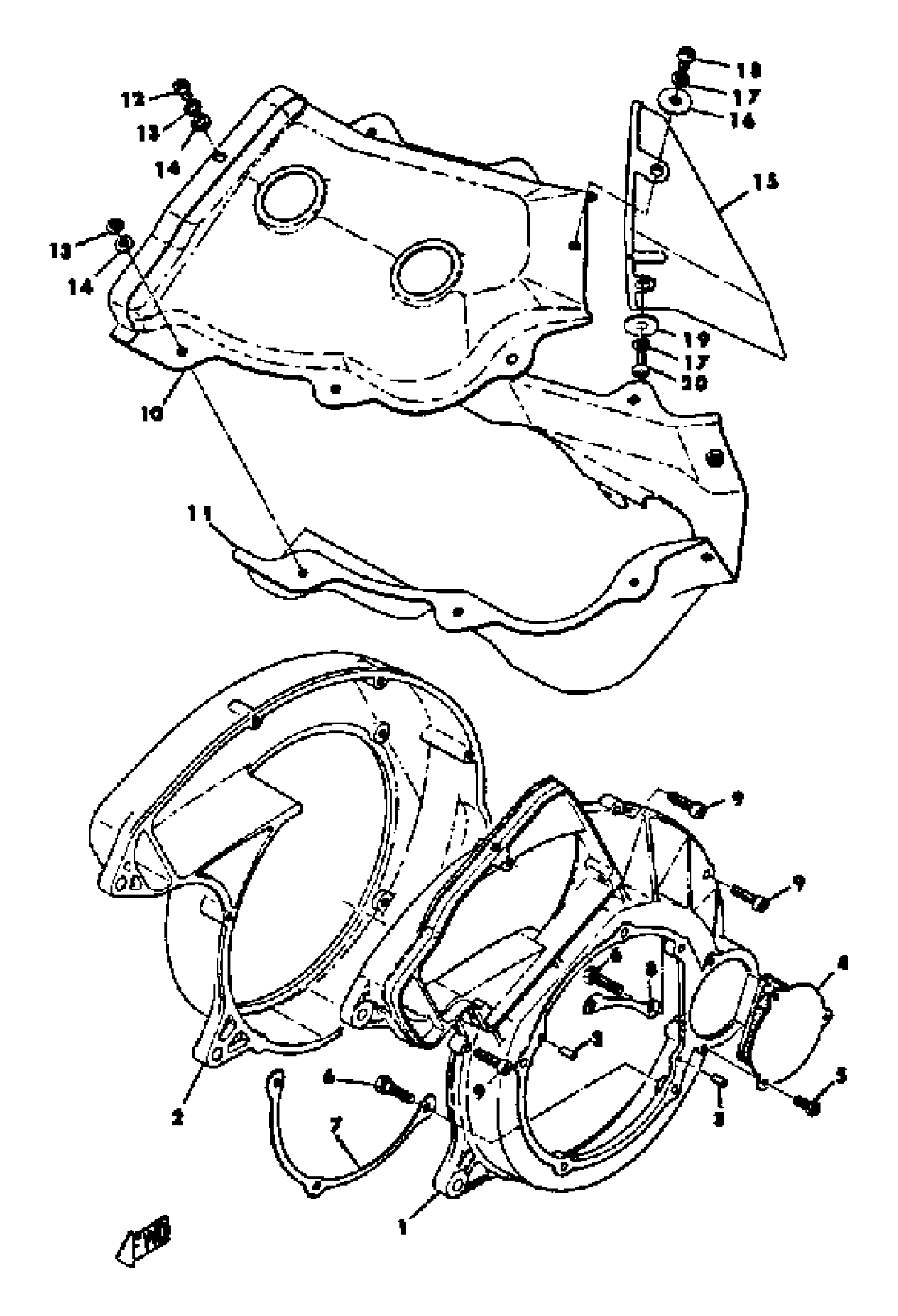

Yamaha SW433B 1972 FAN CASE - AIR SHROUD Diagram

#

Description
Price

1

CASE, FAN

(821-12621-00-00)

Unavailable

1

CASE, FAN

(838-12621-00-00)

Unavailable

2

CASE, FAN 2

(821-12622-00-00)

Unavailable

2

CASE, FAN 2

838-12622-00-00

Unavailable

3

PIN,DOWEL (137)

93604-14012-00

$1.81

4

PLATE

(821-12633-00-00)

Unavailable

5

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

6

BOLT

(807-12623-00-00)

Unavailable

7

WASHER, LOCK 1

(807-12624-00-00)

Unavailable

7

WASHER, LOCK 1

(838-12624-00-00)

Unavailable

8

WASHER, LOCK 2

(807-12625-00-00)

Unavailable

9

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

10

AIR SHROUD, CYLINDER 1

(826-12651-00-00)

Unavailable

11

AIR SHROUD, CYLINDER 2

(826-12652-00-00)

Unavailable

12

SCREW, PAN

98517-06012-00

$3.78

13

WASHER, SPRING

92907-06100-00

Unavailable

14

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

15

DUCT

(811-12661-00-00)

Unavailable

16

COLLAR

(90387-07034-00)

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

SCREW, BINDING

98907-06016-00

Unavailable

19

COLLAR 8111266500

90387-07037-00

Unavailable

20

SCREW, BINDING

98907-06020-00

Unavailable
