Description

Price

1

EXHAUST PIPE ASSEMBLY L

(821-14610-00-00)

Unavailable

2

GASKET, EXHAUST PIPE

89A-14613-00-00

$16.49

3

BOLT, STUD

(90116-08044-00)

Unavailable

4

NUT, U

95617-08100-00

$9.49

5

SPRING, MUFFLER

821-14773-00-00

$18.49

6

MUFFLER ASSEMBLY L

(821-14710-00-00)

Unavailable

7

BOLT

90109-08293-00

Unavailable

8

PLATE, SPRING

812-14793-00-00

Unavailable

9

SPRING, COMPRESSION

(90501-18115-00)

Unavailable

10

WASHER, PLATE(3BM)

90201-105R9-00

$9.49

11

SPACER

(90560-08065-00)

Unavailable

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

13

WASHER, PLATE

(90201-07080-00)

Unavailable

14

PROTECTOR, MUFF 1

(807-14718-00-00)

Unavailable

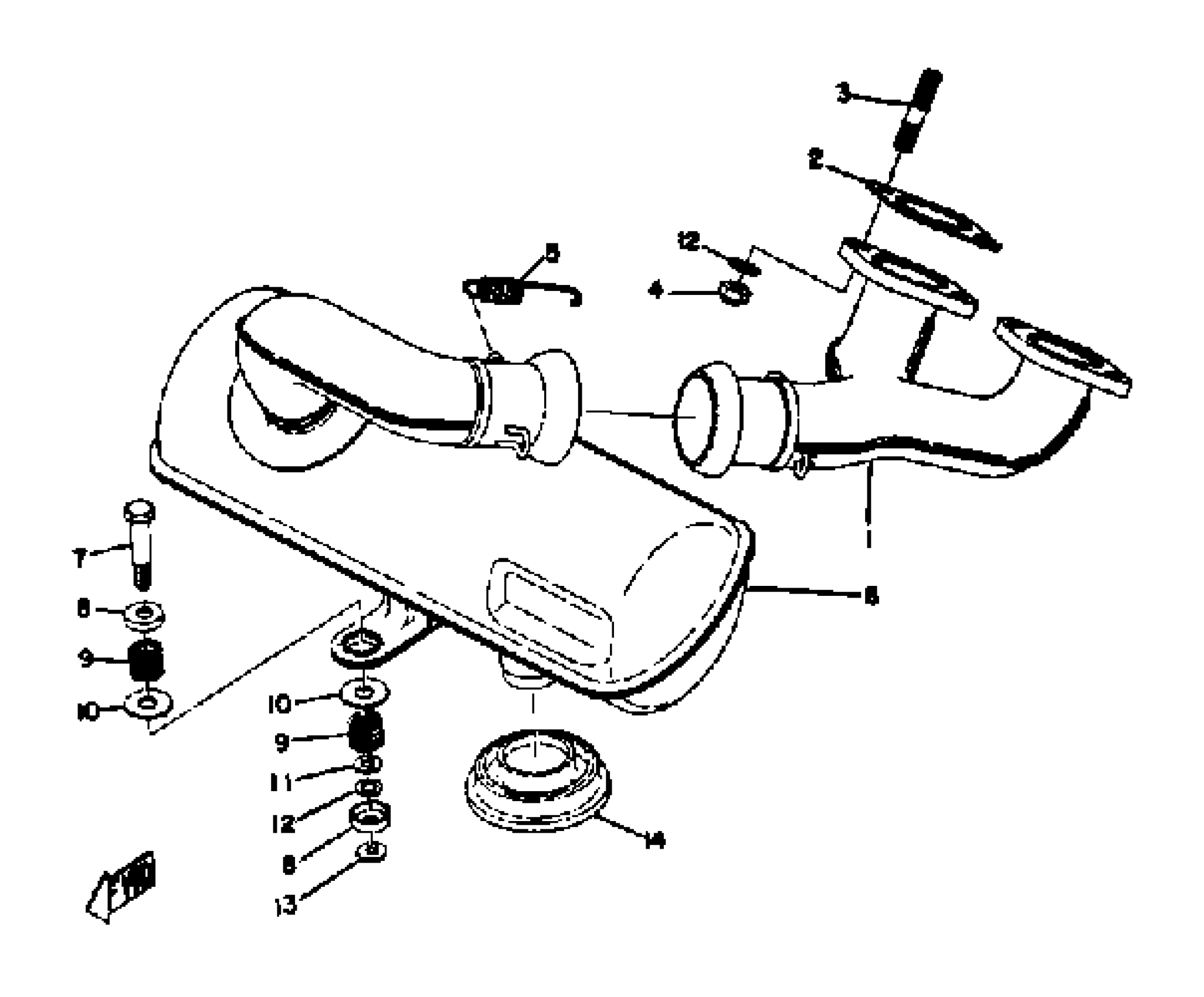

Yamaha SW433B 1972 EXHAUST Diagram

EXHAUST PIPE ASSEMBLY L

GASKET, EXHAUST PIPE

BOLT, STUD

NUT, U

SPRING, MUFFLER

MUFFLER ASSEMBLY L

BOLT

PLATE, SPRING

SPRING, COMPRESSION

WASHER, PLATE(3BM)

SPACER

YBS67-8 WASHER, SPRING

WASHER, PLATE

PROTECTOR, MUFF 1
