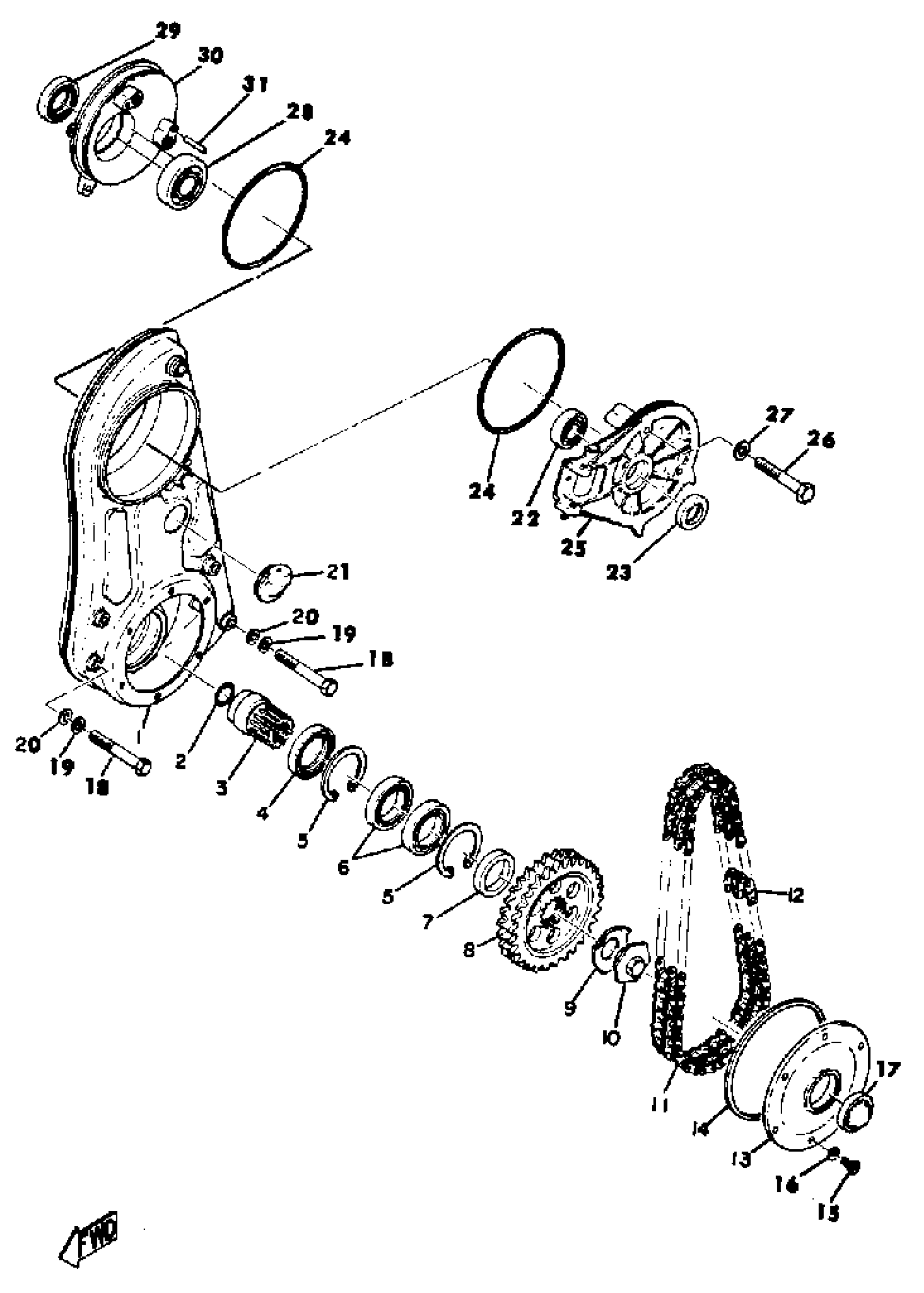

Yamaha SW396 1970 TRACK DRIVE Diagram

#

Description
Price

1

HOUSING, CHAIN

(820-47541-00-00)

Unavailable

2

O-RING (437)

93210-24235-00

$7.49

3

JOURNAL 1

(810-47571-00-00)

Unavailable

4

OIL SEAL, SD-TYPE

93102-40080-00

Unavailable

5

CIRCLIP, R-TYPE

93420-55028-00

Unavailable

6

BEARING

93306-90702-00

Unavailable

7

COLLAR

90387-35205-00

Unavailable

8

SPROCKET, CHN DRVN

(802-47548-40-00)

Unavailable

8

SPROCKET, CHN DRVN

802-47548-50-00

Unavailable

8

SPROCKET, CHN DRVN

(802-47548-60-00)

Unavailable

9

WASHER, LOCK

90215-24029-00

Unavailable

10

BOLT

90109-24203-00

Unavailable

11

CHAIN (DK425-2 62L)

94804-25062-00

Unavailable

11

CHAIN

(94804-25064-00)

Unavailable

12

. JOINT CHAIN

94904-25001-00

Unavailable

13

CAP, HOUSING

(806-47543-00-00)

Unavailable

14

RING, HOUSING

(806-47558-00-00)

Unavailable

15

SCREW

90143-05004-00

Unavailable

16

WASHER, SEAL

90210-05005-00

Unavailable

17

LEVEL, OIL

802-47546-01-00

Unavailable

18

BOLT(6TC)

97027-08070-00

Unavailable

19

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

20

WASHER, PLAIN

92990-08200-00

Unavailable

21

CAP 2

(810-47559-00-00)

Unavailable

22

BEARING(2JN)

93306-00315-00

Unavailable

23

OIL SEAL (22X32X5-818)

93102-22087-00

Unavailable

24

O-RING

93211-13109-00

Unavailable

25

HOUSING, SEC SHAFT

(818-47561-00-00)

Unavailable

26

BOLT (663)

97013-08060-00

Unavailable

27

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

28

BRG,R-B 6304 52MM 144G NT

93306-30407-00

Unavailable

29

OIL SEAL (30X47X7-810)

93102-30083-00

Unavailable

30

HOUSING, SEC SHAFT

810-47562-00-00

Unavailable

31

PIN, DOWEL(4SS)

93604-18251-00

Unavailable
