- Partiron
- OEM Parts
- Yamaha
- snowmobile
- 1970
- SW396 1970
ENGINE BRACKET

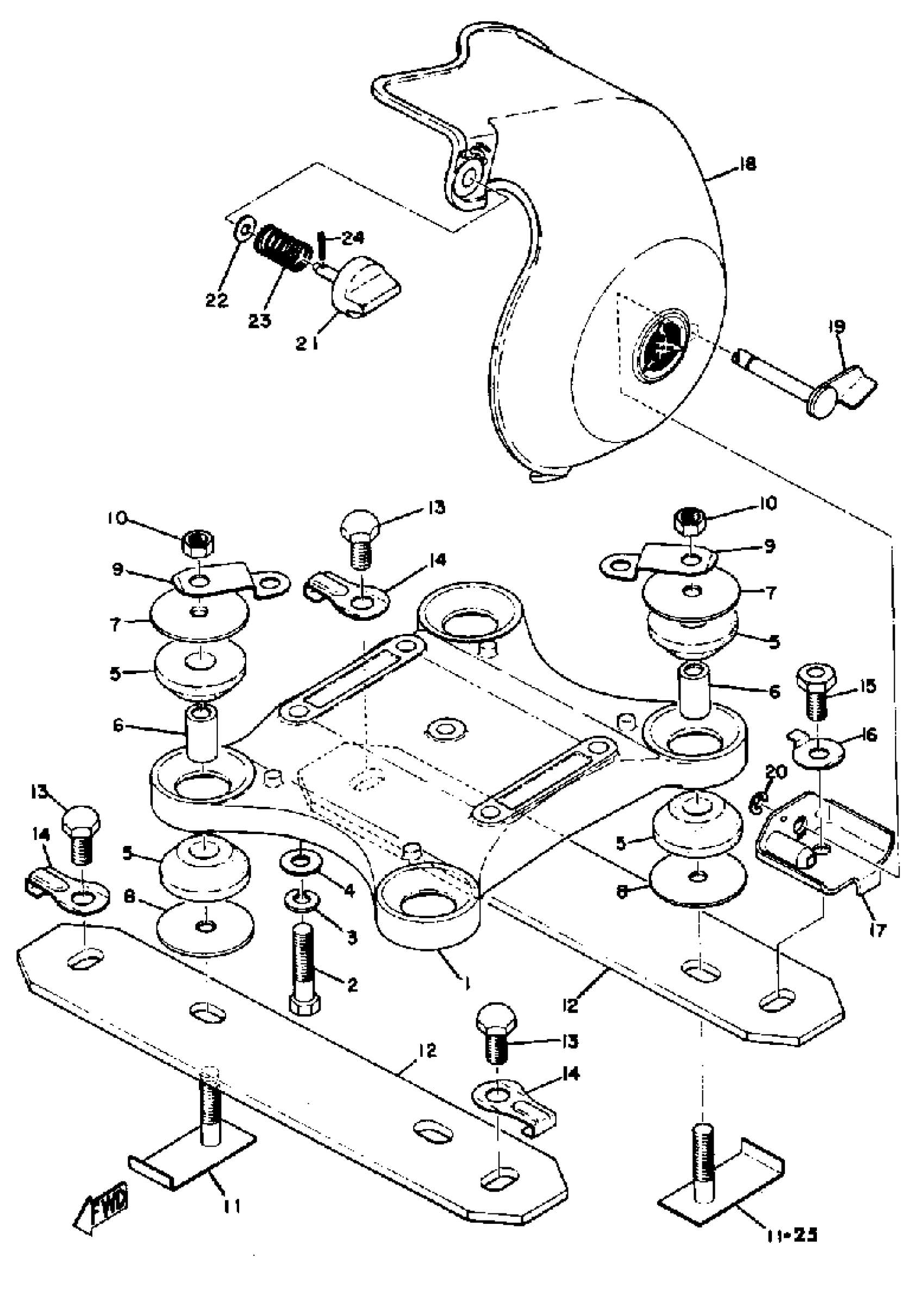

Yamaha SW396 1970 ENGINE BRACKET Diagram
#
Description
Price
1
BRACKET, ENGINE 1
(810-21411-00-00)
Unavailable
2
BOLT,HEXAGON(676)
97013-10050-00
Unavailable
3
YBS67-10 WASHER, SPRING
92990-10100-00
$7.49
4
958-69527-00 WASHER, PLAIN
92990-10200-00
$3.72
5
DAMPER, ENG MOUNT 1
807-15316-00-00
Unavailable
6
SPACER
90560-10020-00
Unavailable
7
WASHER, LOCK
(807-21491-00-00)
Unavailable
8
WASHER, PLATE (807-21492-00)
90201-10152-00
Unavailable
9
GASKET, BLIND PLG 2
(810-15176-00-00)
Unavailable
10
NUT (682)
95380-10700-00
Unavailable
11
BOLT, ENG MNTNG 2
(807-21482-00-00)
Unavailable
12
BRACKET, ENGINE 2
(807-21419-00-00)
Unavailable
13
BOLT(8BT)
97017-10020-00
$8.49
14
WASHER, LOCK
(810-21492-00-00)
Unavailable
15
BOLT
90101-10055-00
Unavailable
16
WASHER 823214910000
90208-10012-00
Unavailable
16
WASHER, LOCK
90215-10073-00
Unavailable
17
BRACKET 1
(806-77315-01-00)
Unavailable
18
GUARD, DRIVE
(810-77311-01-00)
Unavailable
19
ARM, FITTING
806-77314-00-00
Unavailable
20
CIRCLIP(53L)
99001-06600-00
Unavailable
21
KNOB
(806-77324-00-00)
Unavailable
22
WASHER, PLATE
90201-06095-00
Unavailable
23
SPRING 1
806-77325-00-00
Unavailable
24
PIN, SPRING
91690-25016-00
Unavailable
25
BOLT, ENG MNTNG 3
(810-21483-00-00)
Unavailable
