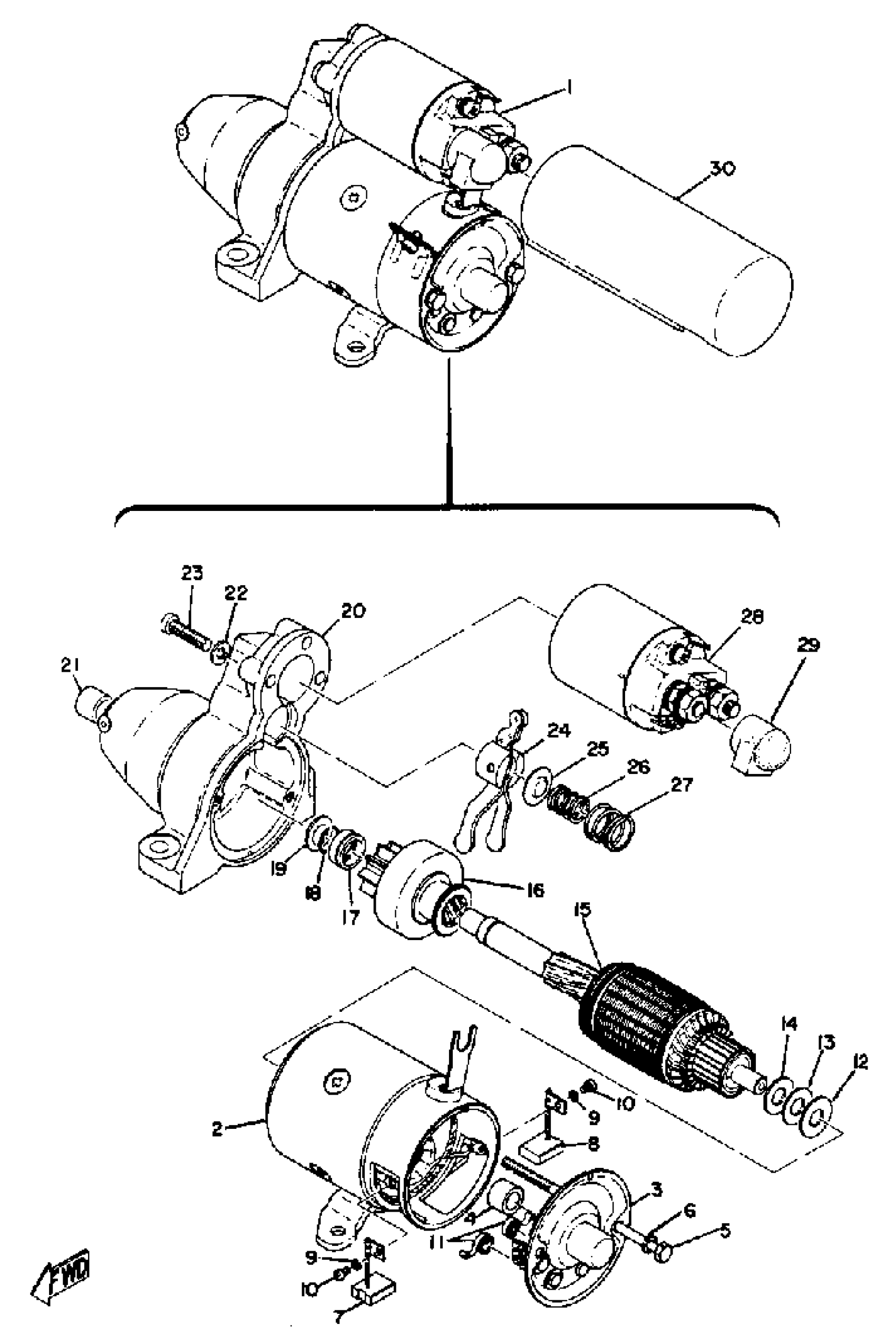

Yamaha SW396 1970 ELECTRIC MOTOR Diagram

#

Description
Price

1

ELECT.STARTER KIT (842-81800-20)

807-81000-00-00

Unavailable

2

STATOR ASSEMBLY

(807-81810-20-00)

Unavailable

3

REAR BRACKET ASSEMBLY

(807-81820-20-00)

Unavailable

4

COVER, SWITCH

(807-81821-20-00)

Unavailable

5

BOLT

(807-81826-20-00)

Unavailable

6

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

7

BRUSH 1

(807-81811-20-00)

Unavailable

8

BRUSH 2

(807-81812-20-00)

Unavailable

9

WASHER, SPRING

92990-03100-00

$8.49

10

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

11

SPRING, BRUSH

(807-81813-20-00)

Unavailable

12

WASHER, INSULATOR

(807-81825-20-00)

Unavailable

13

WASHER 2

(807-81824-20-00)

Unavailable

14

STAY, STARTING MTR

(807-81823-20-00)

Unavailable

15

ARMATURE ASSEMBLY

(807-81850-20-00)

Unavailable

16

CLUTCH, OVER RUN

(807-81832-20-00)

Unavailable

17

RING, STOP

(807-81833-20-00)

Unavailable

18

RING

(807-81834-20-00)

Unavailable

19

WASHER

(807-81835-20-00)

Unavailable

20

FRONT BRACKET ASSEMBLY

(807-81830-20-00)

Unavailable

21

METAL, FRONT

(807-81831-20-00)

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

SCREW

(807-81846-20-00)

Unavailable

24

LEVER ASSEMBLY

(807-81839-20-00)

Unavailable

25

HOLDER, SPRING

(807-81838-20-00)

Unavailable

26

SPRING, LEVER

(807-81836-20-00)

Unavailable

27

SPRING, LEVER

(807-81837-20-00)

Unavailable

28

SWITCH ASSEMBLY

(807-81860-20-00)

Unavailable

29

CAP

(807-81862-20-00)

Unavailable

30

COVER, SWITCH

(819-81821-00-00)

Unavailable
