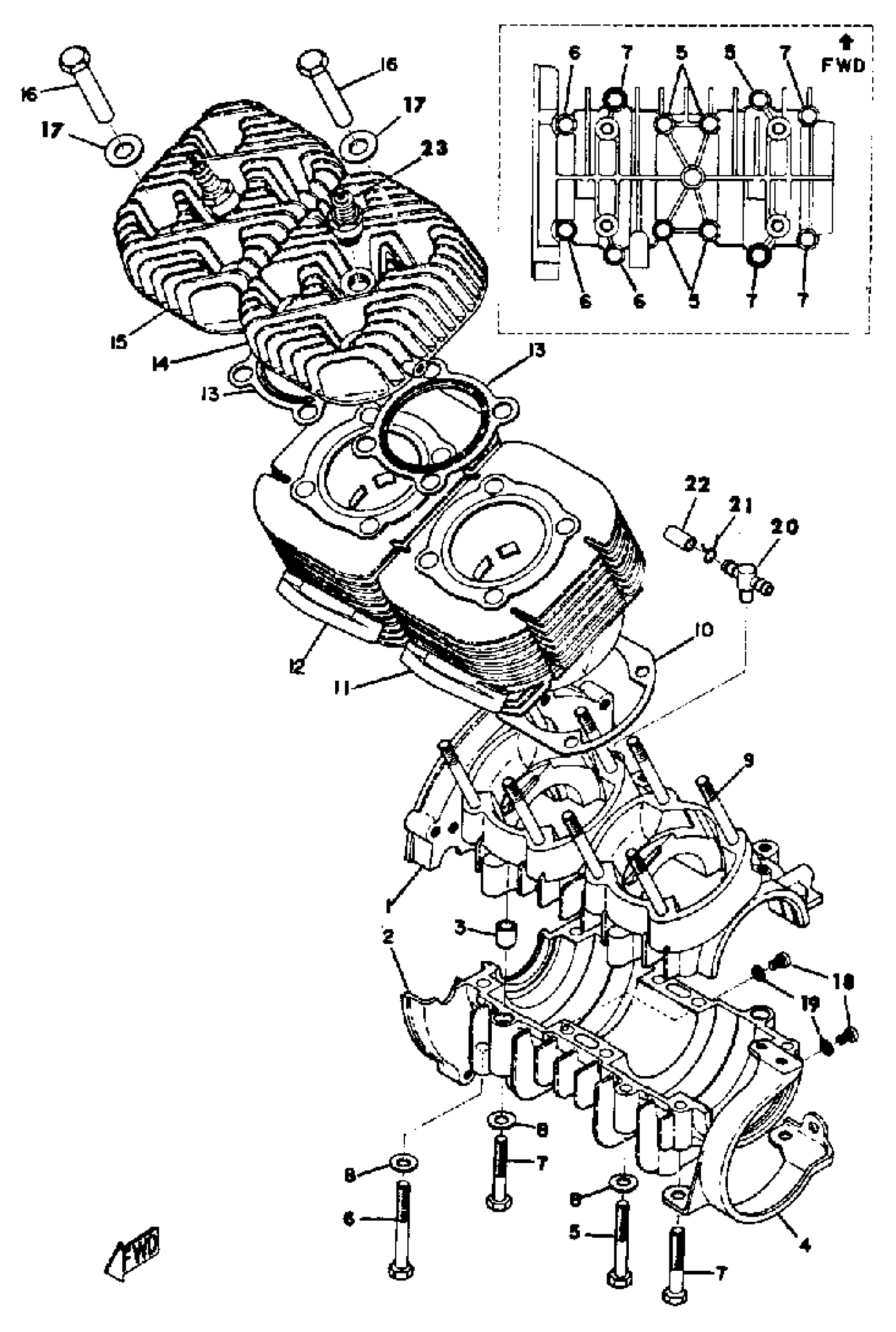

Yamaha SW396 1970 CRANKCASE - CYLINDER Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

(811-15100-00-00)

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

PROTECTOR

(810-15491-02-00)

Unavailable

5

BOLT (663)

97013-08060-00

$4.41

6

BOLT(6TC)

97027-08070-00

Unavailable

7

BOLT, HEXAGON

97013-08050-00

Unavailable

8

WASHER, PLAIN

92990-08200-00

Unavailable

9

BOLT (248-11361-00)

90116-08064-00

$7.49

10

GASKET, CYLINDER

857-11351-09-00

$4.42

11

CYLINDER 1

(811-11311-00-00)

Unavailable

12

CYLINDER 2

(811-11321-00-00)

Unavailable

13

GASKET, CYLINDER HEAD 1

811-11181-00-00

Unavailable

14

HEAD, CYLINDER 1

(811-11111-00-00)

Unavailable

15

HEAD, CYLINDER 2

(811-11121-00-00)

Unavailable

16

NUT, SPEC''L SHAPE

90179-08076-00

Unavailable

17

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

18

SCREW PAN HEAD

98580-06010-00

Unavailable

19

GASKET

90430-06017-00

Unavailable

20

PIPE, JOINT

(807-24461-00-00)

Unavailable

21

CLIP

90467-090A2-00

Unavailable

22

CAP, BLIND

807-24462-09-00

Unavailable

23

B7HS NGK 4PK

B7H-S0000-00-00

Unavailable
