CARBURETOR

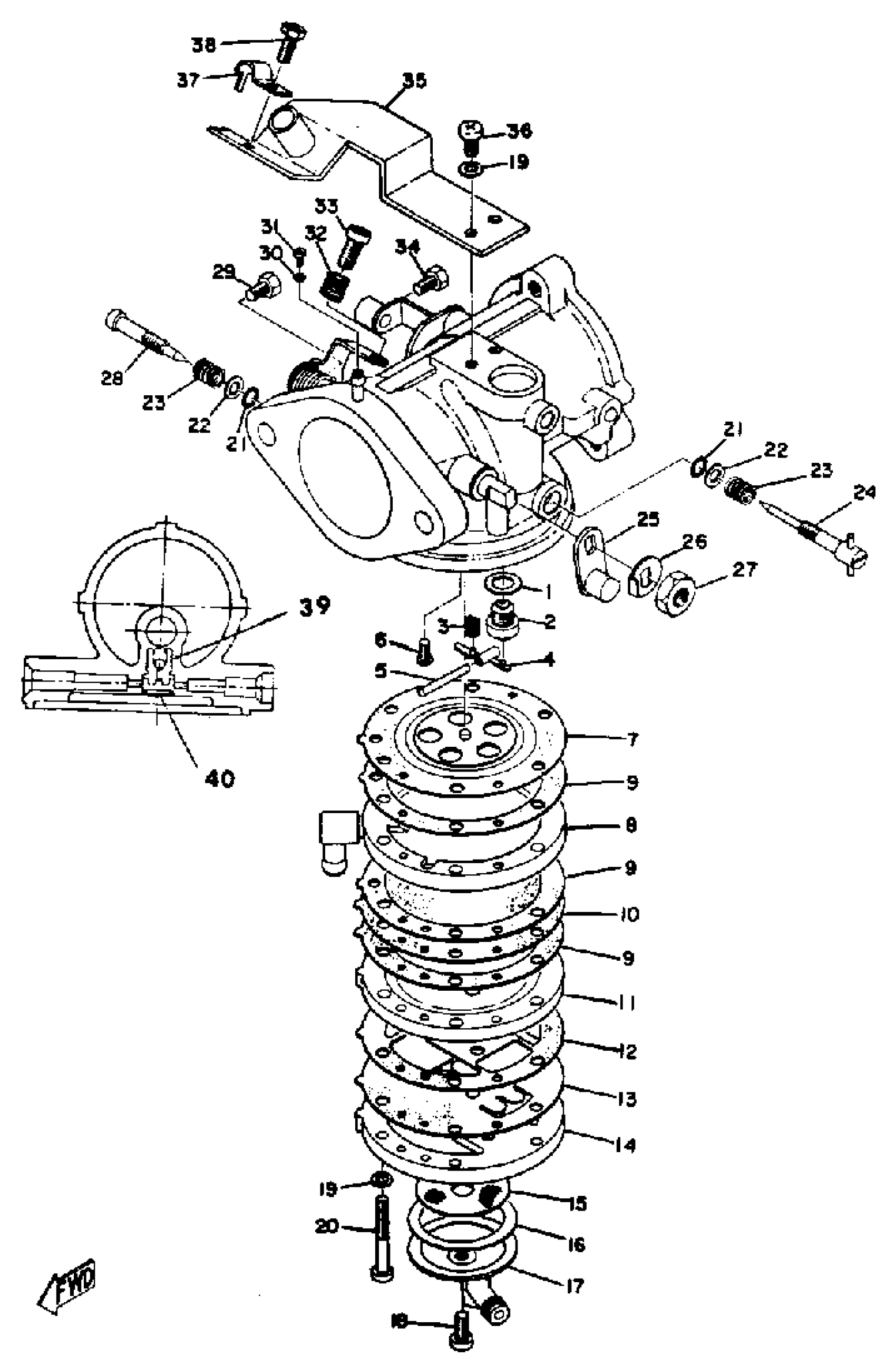

Yamaha SW396 1970 CARBURETOR Diagram
#
1
WASHER, VALVE SEAT
127-14195-00-00
$7.99
1
CARBURETOR ASSEMBLY 1
(811-14101-00-00)
Unavailable
2
VALVE SEAT ASSY
620-14190-20-00
Unavailable
3
SPRING, DIAPHRAGM
(811-24423-00-00)
Unavailable
4
ARM, DIAPHRAGM
812-14387-00-00
$17.49
5
. PIN, FLOAT
439-14186-00-00
Unavailable
6
SCREW, FLAT
98707-03008-00
$7.49
7
. DIAPHRGM
812-24471-00-00
Unavailable
8
BODY 1
(812-24412-00-00)
Unavailable
9
. GASKET, BODY
812-24434-00-00
Unavailable
10
. DIAPHRAGM
812-24411-00-00
Unavailable
11
BODY 2
(812-24413-00-00)
Unavailable
12
. GASKET, BODY 2
812-24435-00-00
Unavailable
13
. VALVE, CHECK
812-24421-00-00
Unavailable
14
BODY 3
(812-24414-00-00)
Unavailable
15
NET, FILTER
(812-24451-00-00)
Unavailable
16
. GASKET
812-24468-00-00
Unavailable
17
. COVER
812-24452-00-00
Unavailable
18
. SCREW
812-24453-00-00
Unavailable
19
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
20
. SCREW, PAN HEAD (811-14125-0)
619-81345-20-00
Unavailable
21
. O-RING
6K8-14562-00-00
Unavailable
22
WASHER,NEEDLE
812-14235-00-00
Unavailable
23
. SPRING, AIR ADJUSTING
137-14134-00-00
Unavailable
24
SCREW, AIR ADJUSTING
(812-14123-00-00)
Unavailable
25
LEVER
(811-14582-00-00)
Unavailable
26
WASHER
(812-14596-00-00)
Unavailable
27
NUT
812-14594-00-00
Unavailable
28
SCREW, MAIN ADJUST
(812-14125-00-00)
Unavailable
29
SCREW, ROD
(193-14486-00-00)
Unavailable
30
WASHER, PLUG SCREW
(811-14117-00-00)
Unavailable
31
PLUG, DRAIN
(811-14191-00-00)
Unavailable
32
SPRING, THRTL STOP
(811-14133-00-00)
Unavailable
33
SCREW, PAN HEAD(GA5)
98580-04014-00
Unavailable
34
SCREW, ROD
(193-14486-00-00)
Unavailable
35
BRACKET, THROTTLE
(811-14571-00-00)
Unavailable
36
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
37
PLATE
(811-14243-00-00)
Unavailable
38
SCREW, ROD
(811-14486-00-00)
Unavailable
39
. NOZZLE, MAIN
822-14141-00-00
Unavailable
40
. PLUG, DRAIN
812-14191-00-00
Unavailable
