Description

Price

1

ARM, PIVOT 1

8NN-G7331-20-00

Unavailable

2

NIPPLE, GREASE 1

8JP-RAL01-00-00

$2.44

3

BUSH, 5

8JP-RA814-00-00

$4.46

4

SHAFT 4

8JP-G7486-20-00

$63.99

5

WASHER, TOOTH M10

8JP-RA457-00-00

$0.43

6

BOLT, FLG. M10X1.2

8JP-RA199-00-00

$3.18

7

SCREW, 7

8JP-RA296-00-00

$3.88

8

COLLAR, 16

8JP-RA733-00-00

Unavailable

9

WASHER, PLAIN

8JP-RA462-00-00

$0.74

10

NUT, FLG. LOCKING

8JP-RA360-00-00

$1.16

11

BOLT, FLG. M6X1.0X

8JP-RA183-00-00

$1.16

12

WASHER, 6.87X25.4X

8JP-RA450-00-00

$0.85

13

STOPPER 1

8NN-G7495-00-00

$17.99

14

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.07

15

SCREW, 12

8JP-RA2A1-00-00

Unavailable

16

RIM,GUIDE WHEEL

8JR-G7513-00-00

Unavailable

17

DAMPER SUB ASSY

8NN-F2201-00-00

Unavailable

18

. LABEL, WARNING

8JP-F2259-70-00

Unavailable

19

COLLAR, 22.4

8JP-RA730-00-00

Unavailable

20

COVER

8JP-F2211-00-00

Unavailable

21

SPRING

8JX-G7336-00-00

Unavailable

22

GUIDE, SPRING 1

8JP-F2214-00-00

Unavailable

23

COLLAR, 14

8JP-RA726-00-00

Unavailable

24

BOLT, FLG. M10X1.2

8JP-RA1A2-10-00

Unavailable

25

LOCK NUT

8JP-RA378-01-00

Unavailable

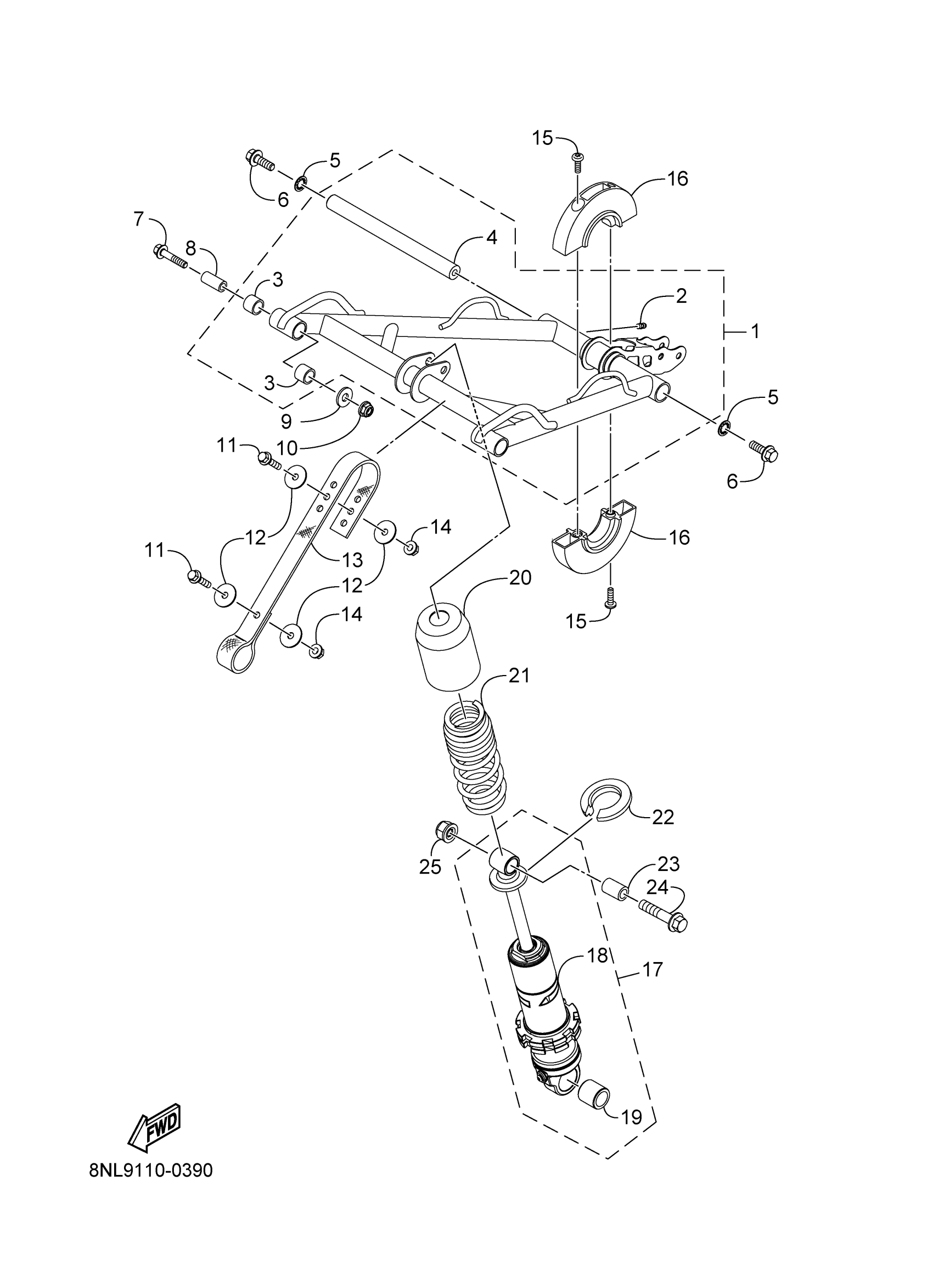

Yamaha SW1NXSSB (SIDEWINDER XTX SE) 8NL9 2025 TRACK SUSPENSION 3 Diagram

ARM, PIVOT 1

NIPPLE, GREASE 1

BUSH, 5

SHAFT 4

WASHER, TOOTH M10

BOLT, FLG. M10X1.2

SCREW, 7

COLLAR, 16

WASHER, PLAIN

NUT, FLG. LOCKING

BOLT, FLG. M6X1.0X

WASHER, 6.87X25.4X

STOPPER 1

NUT,FLG. M6-1.0

SCREW, 12

RIM,GUIDE WHEEL

DAMPER SUB ASSY

. LABEL, WARNING

COLLAR, 22.4

COVER

SPRING

GUIDE, SPRING 1

COLLAR, 14

BOLT, FLG. M10X1.2

LOCK NUT
