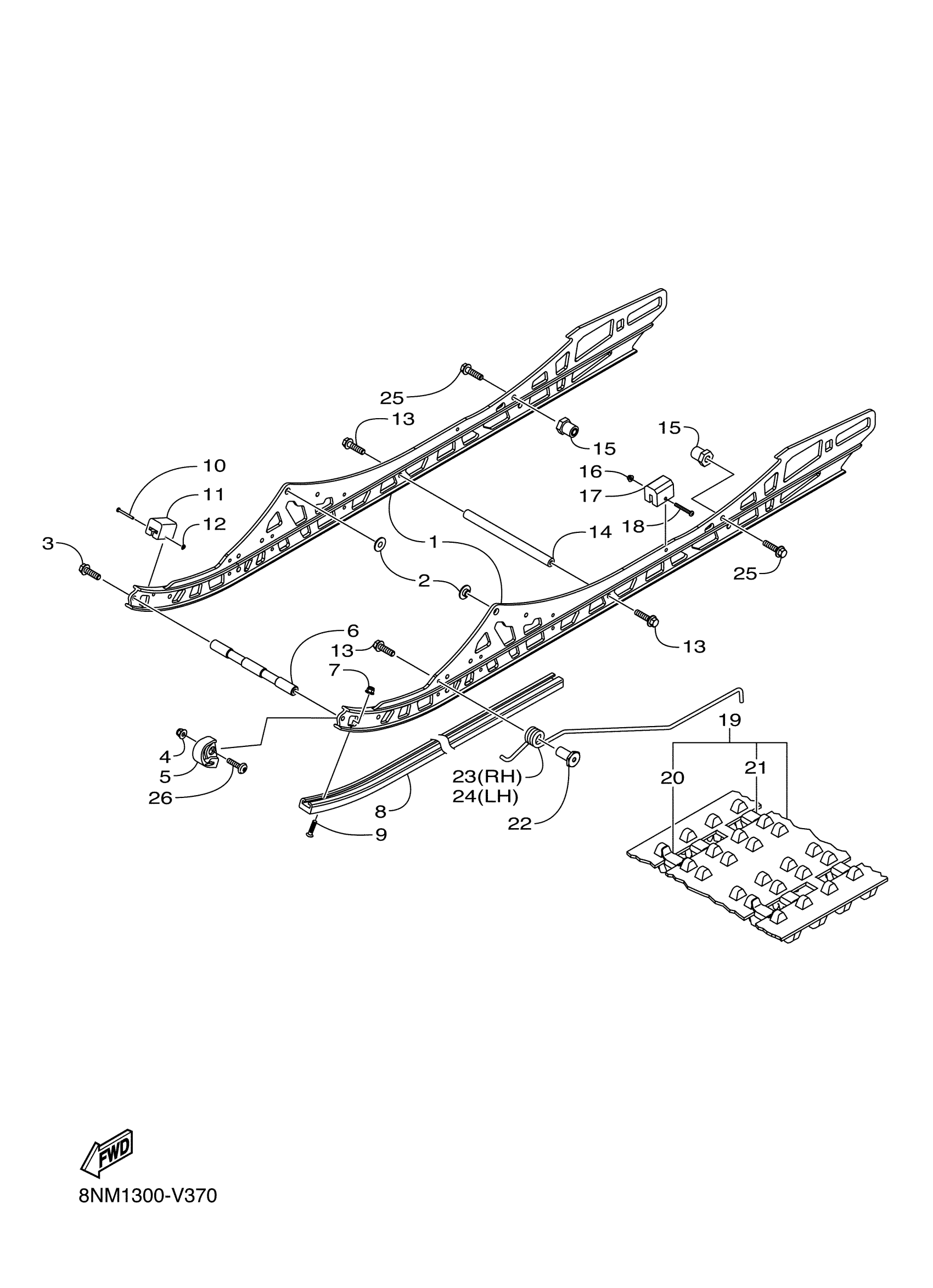

Yamaha SW1NXSRL (SIDEWINDER XTX SE 146) 8NL7 2024 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

FRAME, SLIDING

8NN-G741A-80-00

Unavailable

2

COLLAR, 13

8JP-RA725-00-00

$4.14

3

BOLT, FLG. M8X1.25

8JP-RA189-00-00

Unavailable

4

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.07

5

RUNNER, SLIDING 2

8JP-G7422-10-00

Unavailable

6

SHAFT 3

8JR-G7485-00-00

Unavailable

7

NUT, FLG. LOCKING

8JP-RA357-00-00

$0.54

8

RUNNER, SLIDING 1

8LN-G7421-10-00

$45.99

9

SCREW,MACH-PHFH 1/4-20 X 1 1/8

8JM-RA206-00-00

$1.43

10

RIVET, SOLID - 1/8 X 1.50

8JM-RAY02-00-00

$1.06

11

PAD, SHOCK - RUBBER

8JM-G7456-00-00

$7.49

12

NUT, 0.125

8JP-RA346-00-00

$1.64

13

BOLT, FLG. M8X1.25

8JP-RA186-00-00

$0.54

14

SHAFT, PIVOT

8JR-G7337-10-00

$21.99

15

NUT

8JP-G7368-00-00

$4.56

16

NUT, FLG. LOCKING

8JP-RA363-00-00

Unavailable

17

DAMPER 2

8JP-G7457-00-00

Unavailable

18

SCREW, M5X0.8X40

8JP-RA249-00-00

Unavailable

19

TRACK ASSY

8NN-G7110-10-00

Unavailable

20

PLATE, REINFORCEME

8JP-G7113-00-00

Unavailable

21

METAL, SLIDE

8JP-G7115-00-00

Unavailable

22

BUSH, PIVOT

8KG-G7371-00-00

Unavailable

23

SCRAPER

8KG-G381D-10-00

Unavailable

24

SCRAPER

8KG-G381D-00-00

Unavailable

25

BOLT, FLG. M10X1.2

8JP-RA199-00-00

Unavailable

26

SCREW, M6X1.0X30

8JP-RA266-00-00

Unavailable
