- SW1NXSRL (SIDEWINDER XTX SE 146) 8NL7 2024
RADIATOR & HOSE

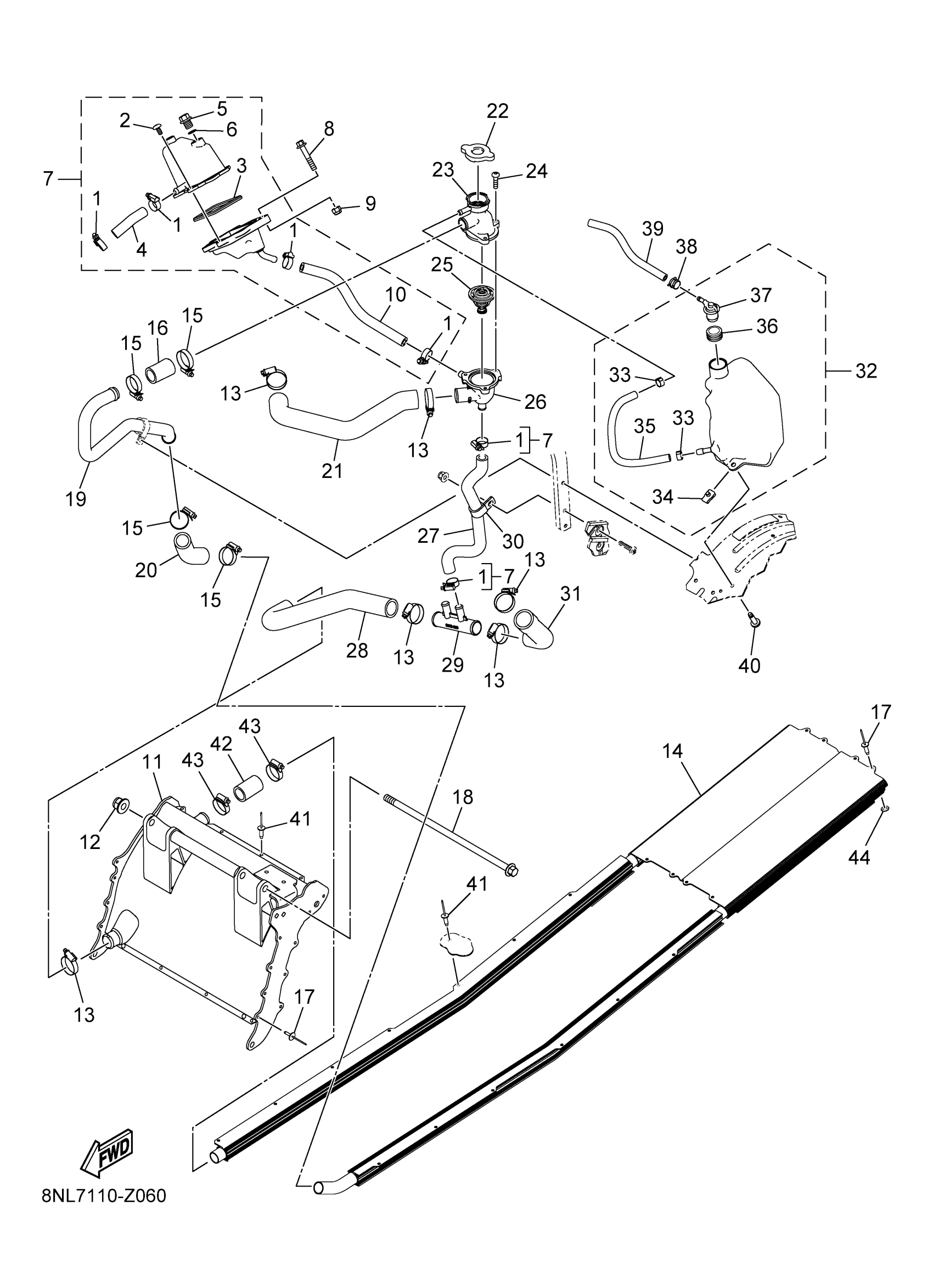

Yamaha SW1NXSRL (SIDEWINDER XTX SE 146) 8NL7 2024 RADIATOR & HOSE Diagram
#
1
CLAMP, HOSE
8JP-F1823-00-00
$3.40
2
SCREW, 6
8KC-RA295-00-00
Unavailable
3
SEAL
8KC-E2877-00-00
$7.49
4
HOSE 2
8KC-E243E-00-00
Unavailable
5
PLUG, DRAIN
8JP-F15A1-00-00
$16.99
6
O-RING, 3
8JP-RAF05-00-00
$0.54
7
TANK ASSY
8KC-E2490-00-00
Unavailable
8
BOLT FLANGE M6X1.0X
8KN-RA183-00-00
Unavailable
9
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
10
HOSE,3
8KC-E243F-00-00
$18.99
11
HEAT EXCHANGER ASS
8MG-E2440-00-00
$579.99
12
NUT, FLG. LOCKING
8JP-RA362-00-00
$1.75
13
CLAMP,26
8JP-RAB29-00-00
$3.50
14
HEAT EXCHANGER
8MF-E240E-00-00
$343.99
15
CLAMP, 22
8JP-RAB24-00-00
Unavailable
16
HOSE, 4
8KC-E244G-00-00
Unavailable
17
RIVET, 12
8JP-RA521-00-00
Unavailable
18
BOLT, ENGINE MOUNT
8KC-F1481-00-00
Unavailable
19
PIPE 1
8KC-E2481-00-00
Unavailable
20
HOSE 5
8MG-E244H-00-00
Unavailable
21
HOSE 1
8KC-E243A-00-00
Unavailable
22
CAP, RADIATOR
8JP-E2462-00-00
Unavailable
23
NECK, FILLER
8KC-E2521-00-00
Unavailable
24
SCREW, M5X0.8X20
8JP-RA244-00-00
Unavailable
25
THERMOSTAT ASSY
8JP-E2410-00-00
Unavailable
26
HOUSING, THERMOSTA
8KC-E2417-00-00
Unavailable
27
HOSE 8
8KC-E2552-00-00
Unavailable
28
HOSE 6
8KC-E244J-00-00
Unavailable
29
JOINT
8KC-E2446-00-00
Unavailable
30
CLAMP, 3
8KC-RAB05-00-00
Unavailable
31
HOSE 7
8KC-E2551-00-00
Unavailable
32
RECOVERY TANK ASSY
8KC-F1870-00-00
Unavailable
33
CLAMP, HOSE-10.8 MM TO 13.3 MM
8JM-RAC02-00-00
Unavailable
34
NUT, CLIP M6
8JP-RA354-00-00
Unavailable
35
. HOSE, 6 (25 FEET)
8JP-RA910-00-00
Unavailable
36
STOPPER
8KC-E2437-00-00
Unavailable
37
VALVE, CHECK 1
8JP-F4362-00-00
Unavailable
38
CLAMP, 3
8KC-RAB02-00-00
Unavailable
39
HOSE, 3 (50 FEET)
8JP-RA907-00-00
Unavailable
40
BOLT 1
8LN-K7537-00-00
Unavailable
41
RIVET, 11
8JP-RA520-00-00
Unavailable
42
HOSE, 4
8MF-E244G-10-00
Unavailable
43
CLAMP, 22
8MF-RAB24-00-00
Unavailable
44
WASHER,FLAT .194X.50X.048
8JM-RA411-00-00
Unavailable
