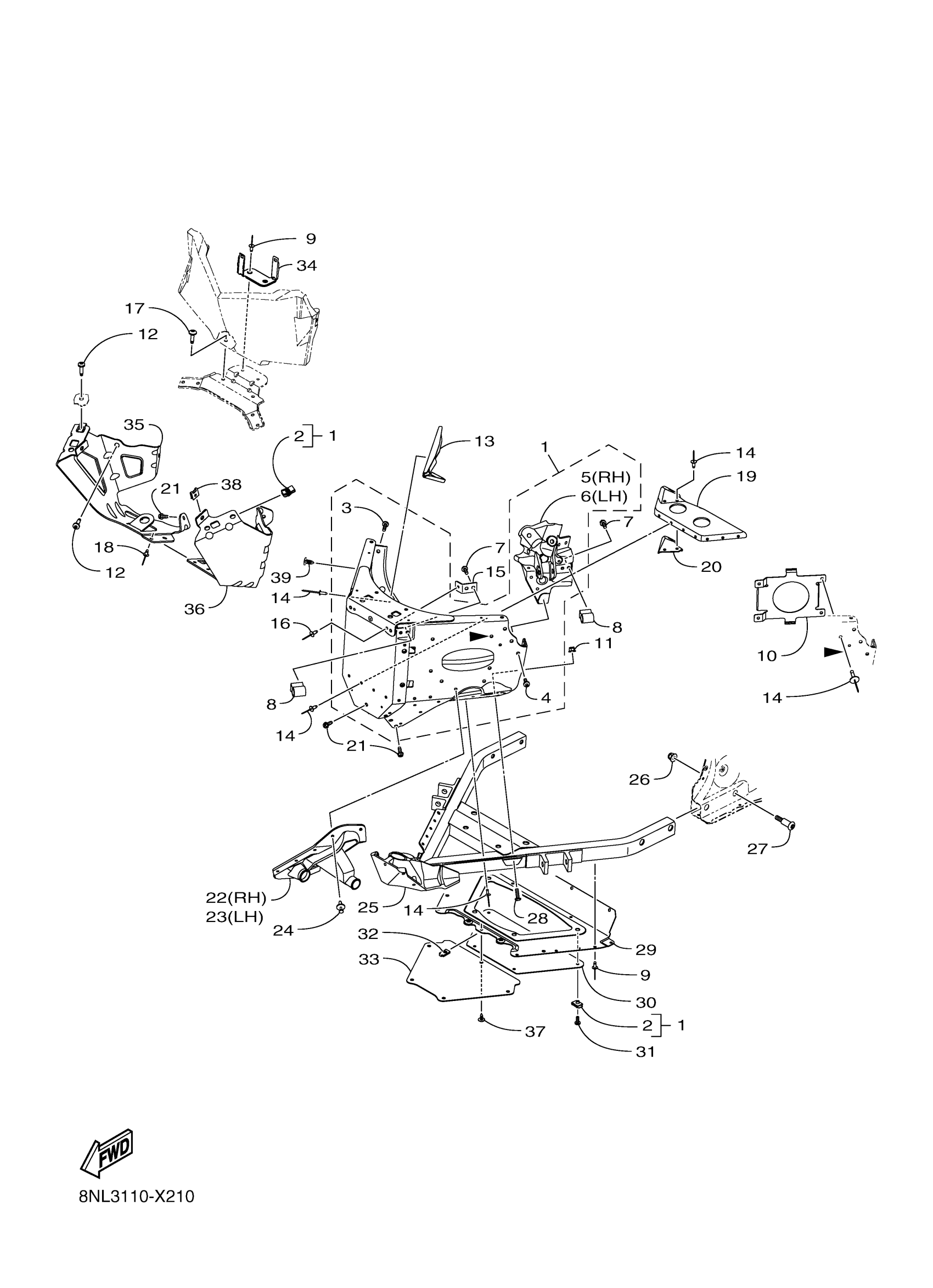

Yamaha SW1NXSRL (SIDEWINDER XTX SE 146) 8NL7 2024 FRAME 1 Diagram

BULKHEAD

8MS-F191A-00-00

Unavailable

NUT, CLIP M6

8JP-RA354-00-00

$0.96

. SCREW, TAPPING

8JP-RA281-00-00

Unavailable

SCREW, M6X1X16

8JP-RA271-00-00

$0.96

HOLDER, ABSORBER

8KC-F376J-00-00

$150.99

HOLDER, ABSORBER 2

8KC-F377J-00-00

$125.99

BOLT, FLG. M6X1.0X

8JP-RA180-00-00

Unavailable

BRACKET, UPPER

8JP-F2219-00-00

Unavailable

RIVET, 9

8JP-RA518-00-00

$0.59

BRACKET, UNIT

8KC-H5991-00-00

Unavailable

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.07

SCREW, M6X18

8KC-RA270-00-00

$1.86

BRACKET, STOPPER S

8JP-F131G-00-00

$33.99

RIVET, 11

8JP-RA520-00-00

$0.70

GUSSET

8JP-F1138-00-00

Unavailable

RIVET, 3/16

8JP-RA527-00-00

Unavailable

SCREW, M6X1X16

8KC-RA271-00-00

Unavailable

RIVET, 3/16

8JP-RA528-00-00

Unavailable

REINF.,FRAME FR. 3

8JP-F1922-00-00

Unavailable

BRACKET, STEERING

8JP-F1947-00-00

Unavailable

SCREW, TAPPING

8JP-RA201-00-00

Unavailable

COVER 3

8JP-F198J-00-00

Unavailable

COVER 1

8JP-F198F-00-00

Unavailable

RIVET, 2

8JP-RA511-00-00

Unavailable

FRAME UNDER 1

8KC-F196A-10-00

Unavailable

NUT,HEX FLG-NYL LOCK M8X1.25

8JM-RA301-00-00

Unavailable

SCREW, M8X1.25X44.

8JP-RA275-00-00

Unavailable

SCREW, M6X1.0X20

8JP-RA258-00-00

Unavailable

FRAME, UNDER 2

8KC-F196E-00-00

Unavailable

COVER, UNDER

8JP-F2863-00-00

Unavailable

SCREW, M6X1.0X16

8JP-RA255-00-00

Unavailable

NUT, CLIP

8JP-RA349-00-00

Unavailable

PANEL, UNDER

8JP-F114G-00-00

Unavailable

BRACKET

8KC-H1948-00-00

Unavailable

BRACKET, FRONT BUM

8KC-F1959-00-00

Unavailable

BRACKET, FRONT

8KC-F1949-00-00

Unavailable

SCREW, 10-12X3/4

8KC-RA290-00-00

Unavailable

NUT, CLIP 10

8JP-RA352-00-00

Unavailable

RIVET, 2

8NL-RA511-00-00

Unavailable
