CRANKSHAFT & PISTON

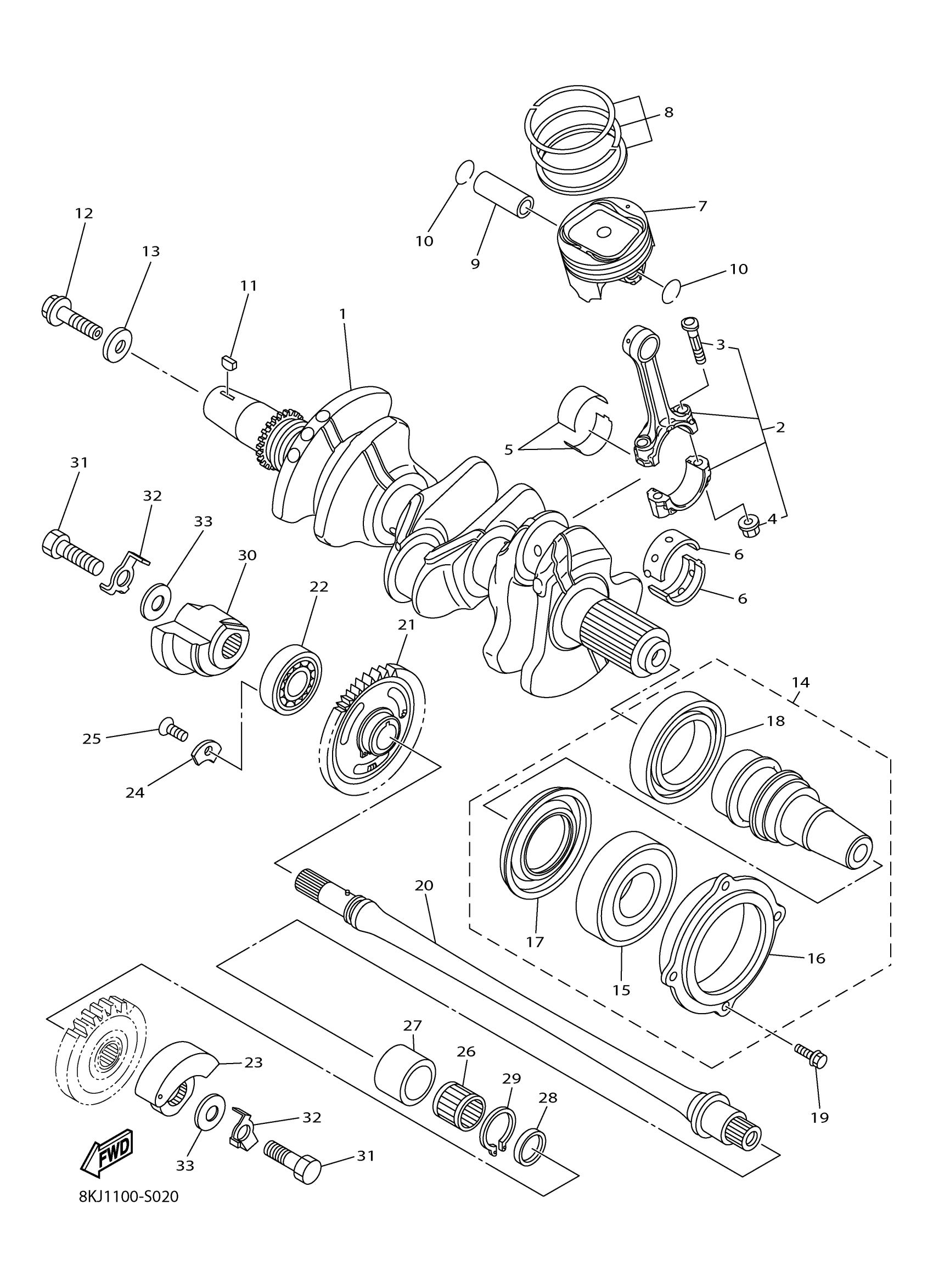

Yamaha SW1NXSRL (SIDEWINDER XTX SE 146) 8NL7 2024 CRANKSHAFT & PISTON Diagram
#
1
CRANKSHAFT ASSY
8KJ-11400-00-00
Unavailable
2
CONNECTING ROD ASSY
8KJ-11650-00-00
$202.99
3
BOLT, CONNECTING ROD
5JW-11654-00-00
$5.49
4
NUT (11H)
90179-08327-00
$9.49
5
PLANE BEARING, CONNECTING ROD
5JW-11656-00-00
$13.49
5
PLANE BEARING, CONNECTING ROD
5JW-11656-10-00
$13.49
5
PLANE BEARING, CONNECTING ROD
5JW-11656-20-00
$13.49
5
PLANE BEARING, CONNECTING ROD
5JW-11656-30-00
$14.49
5
PLANE BEARING, CONNECTING ROD
5JW-11656-40-00
$13.49
5
PLANE BEARING, CONNECTING ROD
5JW-11656-A0-00
$13.49
6
PLANE BEARING, CRANKSHAFT 1
3LD-11416-10-00
Unavailable
6
PLANE BEARING, CRANKSHAFT 1
3LD-11416-20-00
$27.99
6
PLANE BEARING, CRANKSHAFT 1
3LD-11416-30-00
$25.99
6
PLANE BEARING, CRANKSHAFT 1
3LD-11416-40-00
$27.99
6
PLANE BEARING, CRANKSHAFT 1
3LD-11416-50-00
$29.99
6
PLANE BEARING, CRANKSHAFT 1
3LD-11416-60-00
Unavailable
6
PLANE BEARING, CRANKSHAFT 1
3LD-11416-70-00
Unavailable
7
PISTON (STD)
8KJ-11631-00-00
Unavailable
8
PISTON RING SET (S
8KJ-11601-01-00
Unavailable
9
PIN, PISTON
8KJ-11633-00-00
Unavailable
10
CIRCLIP
93450-22146-00
Unavailable
11
KEY WOODRUFF 146115450000
90280-03017-00
Unavailable
12
BOLT, FLANGE
90105-12032-00
Unavailable
13
WASHER (838)
90201-12191-00
Unavailable
14
SHAFT ASSY
8KJ-11406-00-00
Unavailable
15
BEARING
93306-30721-00
Unavailable
16
HOUSING, BEARING
8KH-16775-00-00
Unavailable
17
OIL SEAL
93102-45008-00
Unavailable
18
BEARING
93306-01003-00
Unavailable
19
BOLT, FLANGE
95817-06020-00
Unavailable
20
SHAFT ASSY., 2
2HC-11407-00-00
Unavailable
21
BALANCER WEIGHT GE
2HC-11530-00-00
Unavailable
22
BEARING
93306-30325-00
Unavailable
23
WEIGHT 1
8ES-11454-00-00
Unavailable
24
PLATE, BEARING COVER
4JT-15381-01-00
Unavailable
25
SCREW, COUNTERSUNK
90151-06023-00
Unavailable
26
BEARING
93310-42239-00
Unavailable
27
BEARING 1
8ES-11428-01-00
Unavailable
28
COLLAR
8ES-11478-00-00
Unavailable
29
CIRCLIP
93450-32152-00
Unavailable
30
WEIGHT 2
2HC-11464-00-00
Unavailable
31
BOLT(6TD)
97017-10025-00
Unavailable
32
WASHER, LOCK
90215-10003-00
Unavailable
33
WASHER, PLATE (3L6)
90201-10774-00
Unavailable
