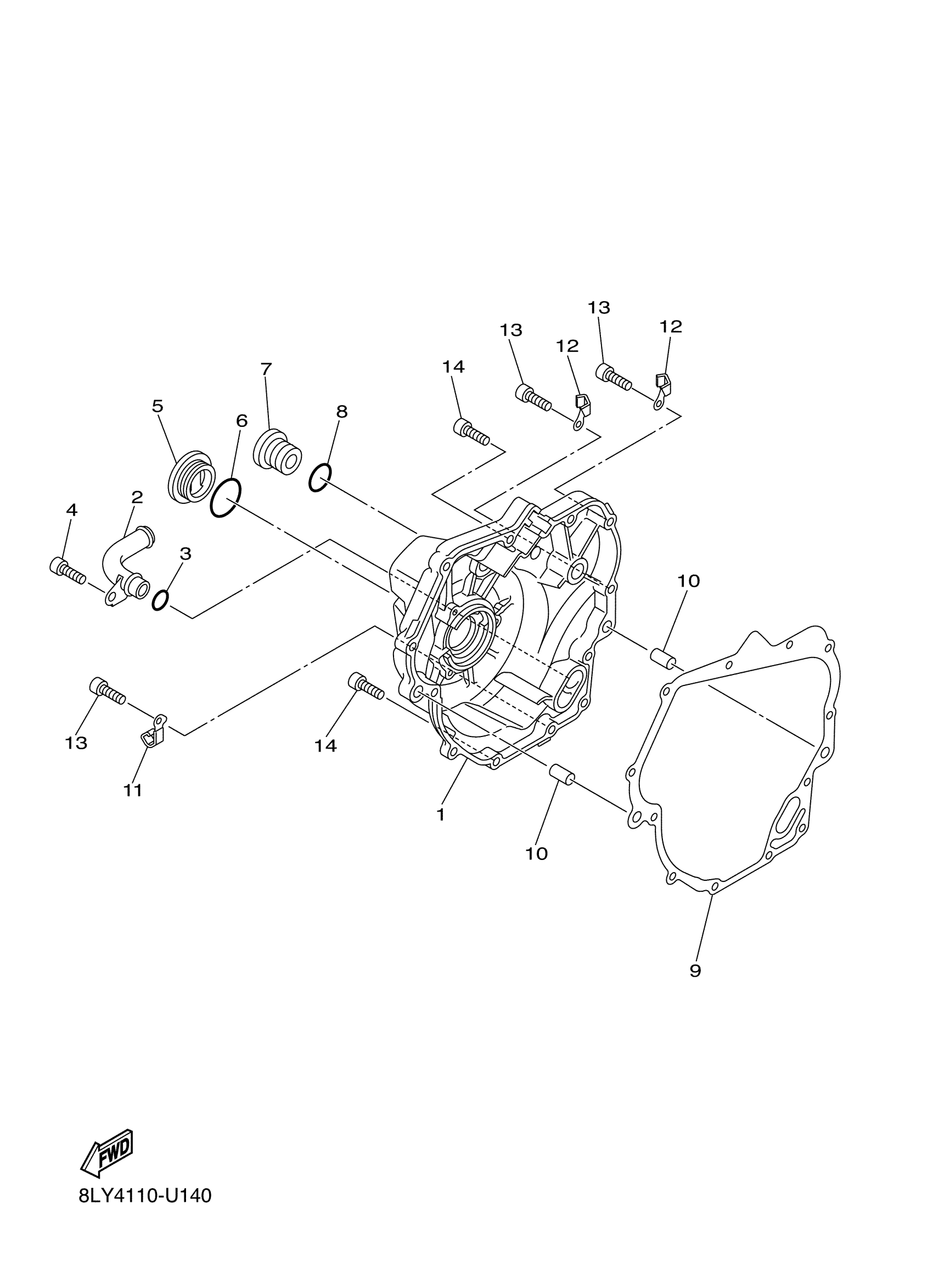

Yamaha SW1NXSPR (SIDEWINDER XTX SE 146) 8NL5 2023 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 2

B5H-15421-00-00

$83.59

2

PIPE, OIL 1

8KJ-13416-00-00

$26.64

3

O-RING

93210-14003-00

$6.02

4

BOLT (33M)

91312-06014-00

$4.43

5

PLUG, STRAIGHT SCREW (5Y1)

90340-36078-00

$11.50

6

O-RING

93210-35804-00

$0.46

7

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$10.83

8

O-RING (2H9)

93210-14369-00

$5.42

9

GASKET, CRANKCASE

2HC-15461-00-00

$14.81

10

PIN, DOWEL

99530-08012-00

$4.89

11

CLAMP

90462-08101-00

$5.77

12

CLAMP(4AJ)

90462-08225-00

$7.35

13

BOLT,SOCKET

91317-06025-00

$1.91

14

BOLT, HEXAGON SOCKET HEAD(3JP)

90110-06240-00

$6.57
