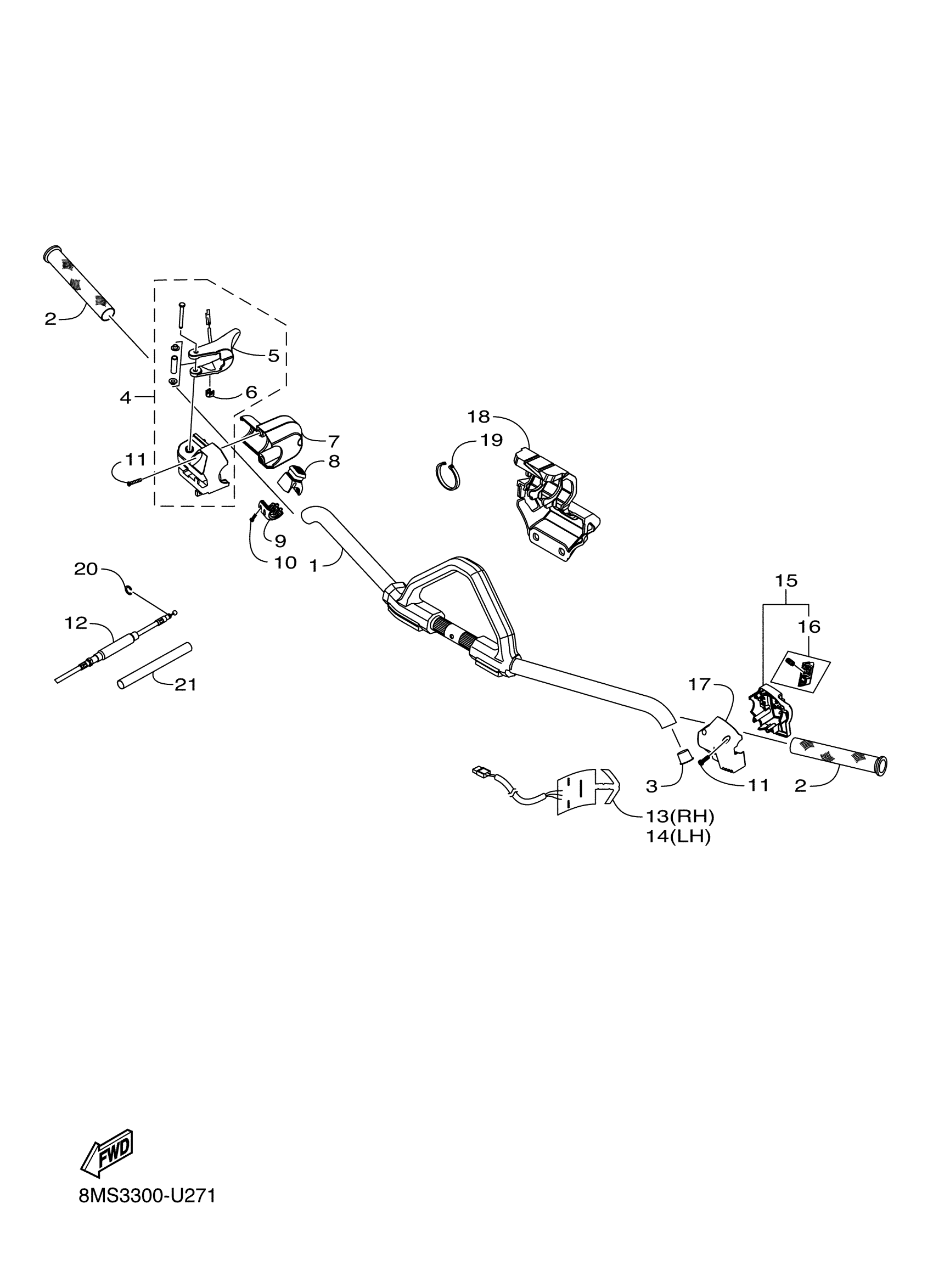

Yamaha SW1NXSLO (SIDEWINDER X TX SE 146) 8NL1 2020 STEERING Diagram

#

Description
Price

1

HANDLEBAR

8JR-F6111-20-00

Unavailable

2

GRIP

8JR-F6241-00-00

$18.99

3

NUT

8JR-F3856-10-00

Unavailable

4

LEVER HOLDER ASSY

8MY-H2720-10-00

$258.99

5

LEVER HOLDER ASSY

8MY-H2720-10-00

$258.99

6

CLIP, 1

8JP-RAC10-10-00

Unavailable

7

LEVER HOLDER ASSY

8MY-H2710-00-00

$9.49

8

STOP SWITCH ASSY

8MY-H2530-00-00

Unavailable

9

CLAMP

8MY-H2544-00-00

$5.60

10

SCREW

8MY-RA200-00-00

$0.64

11

SCREW, 8-18X0.875

8ML-RA286-00-00

$3.88

12

CABLE, THROTTLE 1

8MY-F6311-00-00

Unavailable

13

GRIP,WARMER

8MY-F626A-00-00

$32.99

14

GRIP,WARMER

8MY-F626A-10-00

$25.99

15

SWITCH, HANDLE 4

8MS-H3972-10-00

$506.99

16

BUTTON

8MS-H296K-00-00

Unavailable

17

SWITCH, HANDLE 3

8MY-H3973-00-00

Unavailable

18

PROTECTOR, HANDLEB

8MF-F6124-00-00

Unavailable

19

TIE, CABLE-8.5/7.5/7.4

8JM-RAB01-00-00

Unavailable

19

CLAMP, 1 (4-INCH)

8JP-RAB03-00-00

Unavailable

19

CLAMP, 2 (11.5 INCH)

8JP-RAB04-00-00

Unavailable

20

RING RETAINING

8JM-RAH02-00-00

Unavailable

21

PROTECTOR

8MY-HA7A0-00-00

Unavailable

21

PROTECTOR 1

8MY-HA7A1-00-00

Unavailable
