Description

Price

1

BOLT, FLANGE 1

8JP-RA1B5-00-00

$3.88

2

WASHER, 9

8JP-RA466-00-00

$1.75

3

SUSPENSION WHEEL A

8JR-G7310-20-00

$47.99

4

BRNG,WHL-NSK CHINA6004-W/ENS G

8JM-RAY03-00-00

$25.99

5

CIRCLIP, 2

8JM-RAH01-00-00

$8.49

6

BOLT, FLANGE 2

8JP-RA1B6-00-00

$1.16

7

BRACKET 7

8JP-G7419-10-00

$10.49

8

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.07

9

NUT, LOCK 1

8JP-RA379-00-00

$0.54

10

BOLT, FLG. M10-1.2

8JP-RA194-10-00

$9.49

11

COLLAR, 11

8JP-RA723-00-00

$15.99

12

WASHER, 0.890X1.19

8JP-RA437-00-00

Unavailable

13

COLLAR, 22.2

8JP-RA729-00-00

$73.99

14

LOCK NUT

8JP-RA378-01-00

$0.96

15

BOLT, FLG. M10X1.2

8JP-RA198-00-00

$2.55

16

WASHER, M10X29

8JP-RA453-00-00

Unavailable

17

WHEEL, GUIDE 1

8JP-G7534-00-00

Unavailable

18

GUIDE WHEEL ASSY

8JR-G7550-10-00

Unavailable

19

AXLE, REAR

8JP-G7521-10-00

Unavailable

20

BRACKET 5

8JP-G7463-00-00

Unavailable

21

NUT, HEX. LOCKING

8JP-RA372-00-00

Unavailable

22

BOLT, FLG. M10-1.2

8JP-RA194-30-00

Unavailable

23

BEARING, 2

8JM-RAY03-10-00

Unavailable

24

CIRCLIP, 2

8JM-RAH01-10-00

Unavailable

25

CIRCLIP, 5

8JP-RAH11-00-00

Unavailable

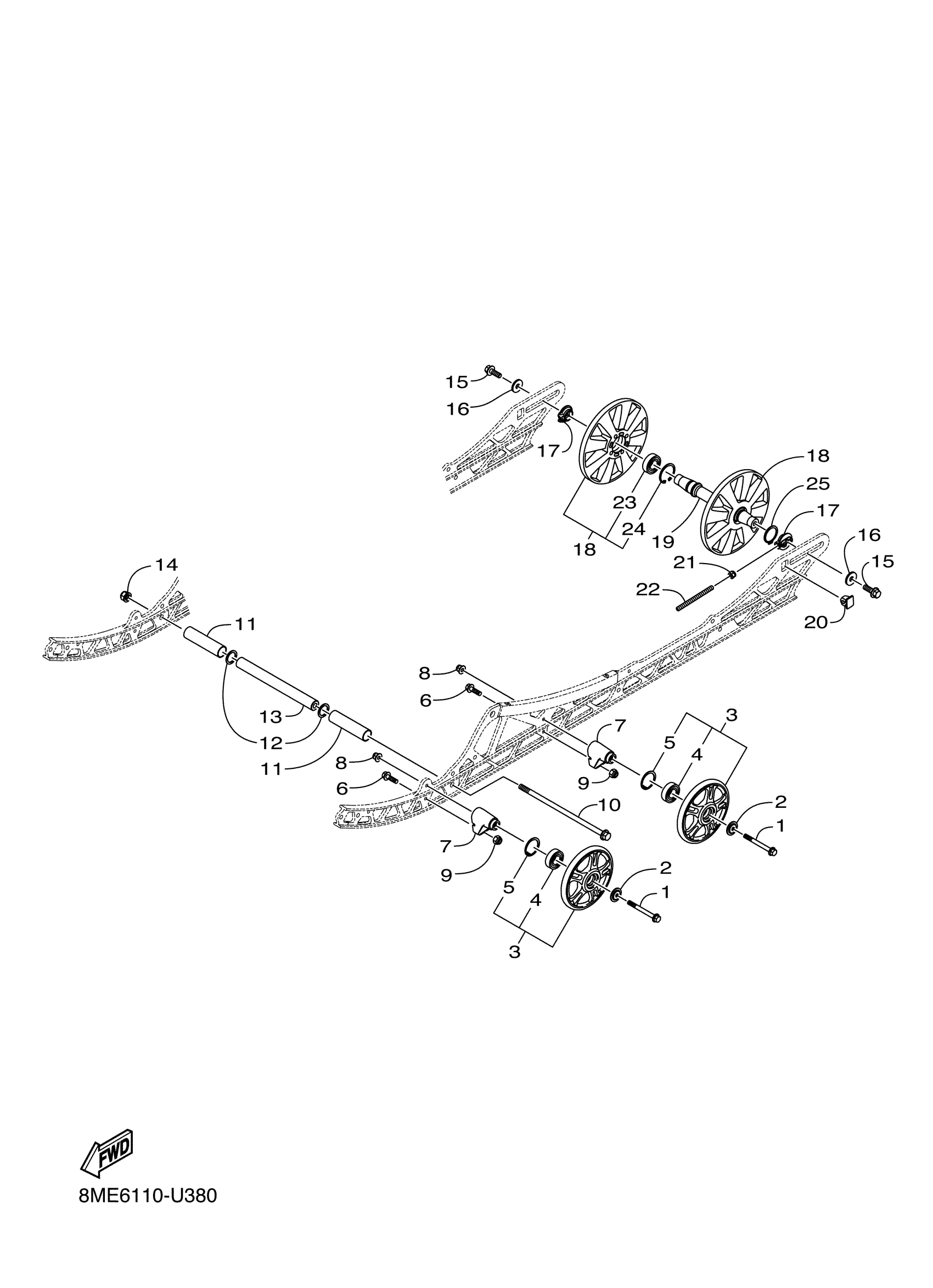

Yamaha SW1NXS60KW (SIDEWINDER X TX SE 141) 8ME6 2019 TRACK SUSPENSION 2 Diagram

BOLT, FLANGE 1

WASHER, 9

SUSPENSION WHEEL A

BRNG,WHL-NSK CHINA6004-W/ENS G

CIRCLIP, 2

BOLT, FLANGE 2

BRACKET 7

NUT,FLG. M6-1.0

NUT, LOCK 1

BOLT, FLG. M10-1.2

COLLAR, 11

WASHER, 0.890X1.19

COLLAR, 22.2

LOCK NUT

BOLT, FLG. M10X1.2

WASHER, M10X29

WHEEL, GUIDE 1

GUIDE WHEEL ASSY

AXLE, REAR

BRACKET 5

NUT, HEX. LOCKING

BOLT, FLG. M10-1.2

BEARING, 2

CIRCLIP, 2

CIRCLIP, 5
