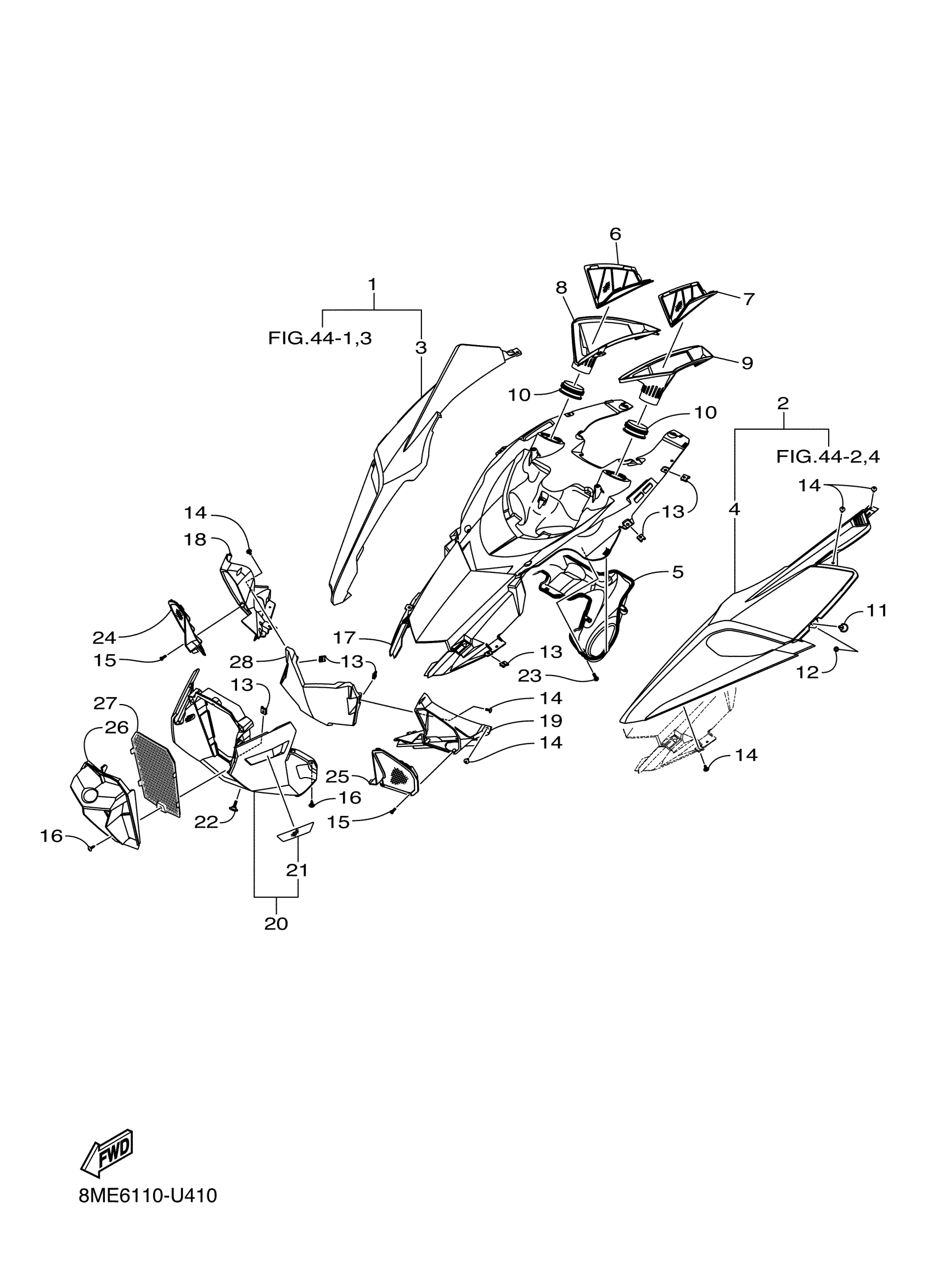

Yamaha SW1NXS60KW (SIDEWINDER X TX SE 141) 8ME6 2019 SHROUD Diagram
#
Description
Price
1
HOOD 4
8KC-K7122-40-00
Unavailable
2
HOOD 3
8KC-K7121-40-00
$201.99
3
HOOD 4
8KC-K7122-40-00
Unavailable
4
HOOD 3
8KC-K7121-40-00
$201.99
5
INTAKE, LOWER
8KC-K715B-00-00
Unavailable
6
SCREEN, INTAKE DUC
8KC-K715E-00-00
Unavailable
7
SCREEN, INTAKE DUC
8KC-K715D-00-00
Unavailable
8
DUCT, INTAKE 2
8KC-K715G-00-00
$16.99
9
DUCT, INTAKE 1
8KC-K715F-00-00
$21.99
10
SEAL, INTAKE
8KC-K715R-00-00
$4.29
11
PIN, 2
8JP-RAK02-00-00
$26.99
12
NUT, 1
8JP-RA345-00-00
Unavailable
13
NUT, CLIP 10
8JP-RA352-00-00
$1.64
14
SCREW, TAPPING 1/4
8JP-RA202-00-00
$1.86
15
SCREW, 4
8KC-RA238-00-00
Unavailable
16
SCREW, 10-12X3/4
8KC-RA290-00-00
Unavailable
17
INTAKE, UPPER
8KC-K715C-00-00
Unavailable
18
VENT, FRONT 2
8KC-K715J-00-00
Unavailable
19
VENT, FRONT 1
8KC-K715H-00-00
Unavailable
20
DUCT, INTAKE FRON
8MB-K715K-10-00
Unavailable
21
TAPE,REFLECTOR
8MY-H5133-00-00
Unavailable
22
SCREW, 5
8KC-RA239-00-00
Unavailable
23
SCREW, 13
8JP-RA2A2-00-00
Unavailable
24
BEZEL, VENT 2
8KC-K715M-00-00
Unavailable
25
BEZEL, VENT 1
8KC-K715L-00-00
Unavailable
26
GRILLE
8KC-K715N-00-00
Unavailable
27
GUIDE 1
8KC-K7123-00-00
Unavailable
28
SHUT, INTAKE
8KC-K715P-00-00
Unavailable
