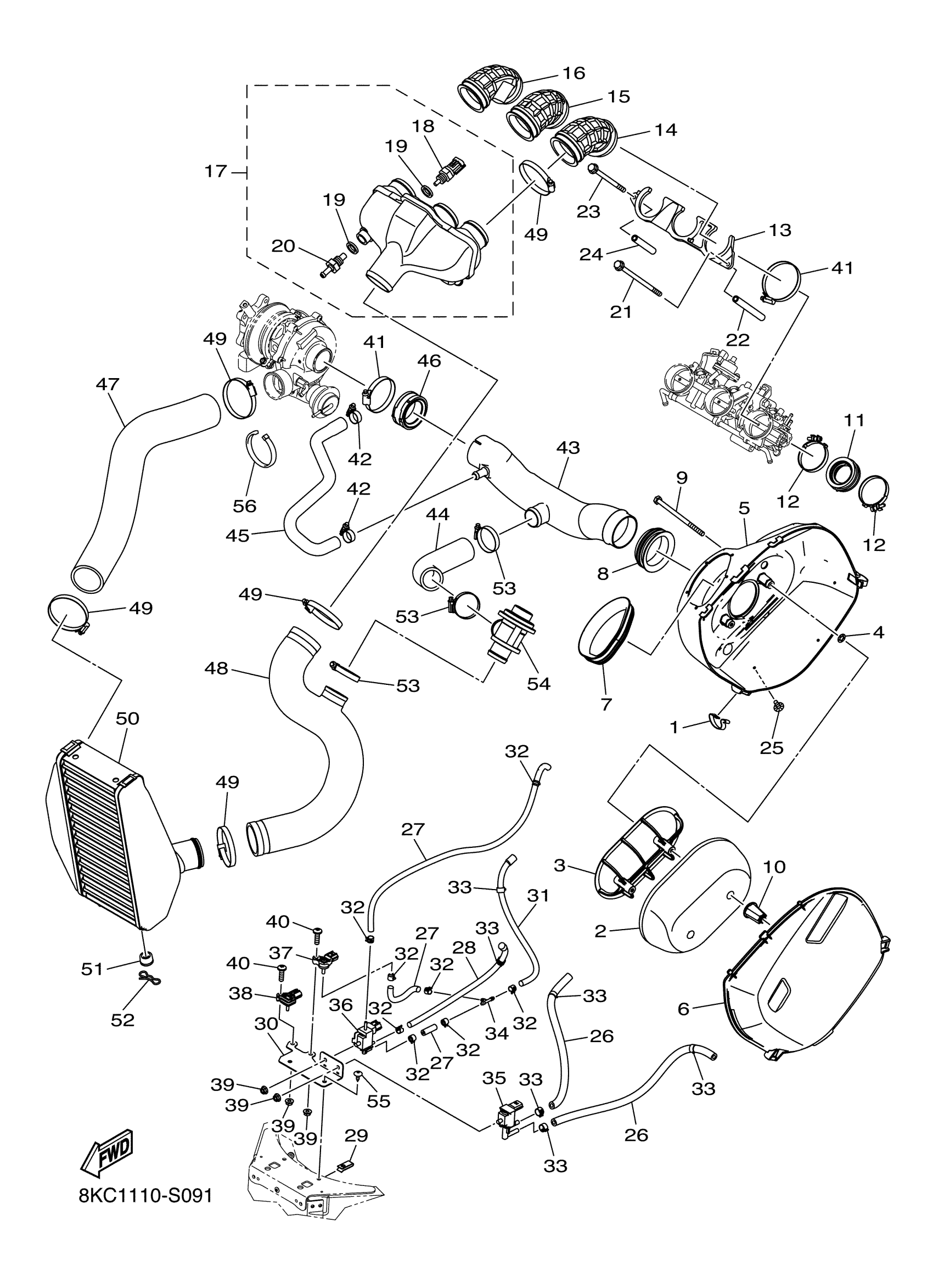

Yamaha SW1NXS37JY (SIDEWINDER X TX SE 137) 8MM1 2018 INTAKE Diagram
#
1
ELEMENT, AIR CLEAN
8KC-E4451-10-00
$60.99
2
GUIDE
8KC-E4458-00-00
$55.99
3
NUT, 1/4
8JP-RA347-00-00
$1.43
4
SILENCER, INTAKE 1
8KC-E4431-00-00
$73.99
5
SILENCER, INTAKE 2
8KC-E4441-00-00
Unavailable
6
BOOT
8KC-E6815-10-00
$24.99
7
SEAL, AIR DUCT
8KC-E5472-00-00
$5.60
8
BOLT, HEX. M6X1X10
8JP-RA1B0-00-00
Unavailable
9
NUT, HOLDING
8KC-E4164-00-00
$5.60
10
JOINT
8GL-13595-00-00
$18.99
11
HOSE CLAMP ASSY
90450-60004-00
$16.99
12
BRACKET 1
8KJ-14291-00-00
$48.99
13
JOINT, AIR CLEANER 1
8KJ-14453-01-00
Unavailable
14
JOINT, AIR CLEANER 2
8KJ-14463-01-00
$36.99
15
JOINT
8KJ-14454-01-00
Unavailable
16
INTAKE MANIFOLD ASSY.
8KJ-13630-00-00
Unavailable
17
THERMOSENSOR
65L-85886-00-00
Unavailable
18
. WASHER
6S5-14285-00-00
Unavailable
19
NIPPLE
8KJ-14251-00-00
Unavailable
20
BOLT, FLG.
8KC-RA1A2-00-00
Unavailable
21
COLLAR
8KC-RA712-00-00
Unavailable
22
BOLT, FLANGE
8KC-RA1B4-00-00
Unavailable
23
COLLAR, 1
8KC-RA713-00-00
Unavailable
24
SCREW, TAPPING 1/4
8JP-RA202-00-00
Unavailable
25
HOSE, 13 (25 FEET)
8JM-RA902-10-00
Unavailable
26
HOSE, 1
8KC-RA905-00-00
Unavailable
27
HOSE, 2
8KC-RA906-00-00
Unavailable
28
NUT, CLIP 10
8JP-RA351-00-00
Unavailable
29
BRACKET
8KC-H3614-00-00
Unavailable
30
HOSE, 3
8KC-RA907-00-00
Unavailable
31
CLAMP, 3
8KC-RAB02-00-00
Unavailable
32
CLAMP, 18
8JP-RAB20-00-00
Unavailable
33
PIPE, JOINT
8KC-E4485-00-00
Unavailable
34
SOLENOID VALVE ASSY
8KJ-86120-00-00
Unavailable
35
SOLENOID VALVE ASSY 2
8KJ-86130-00-00
Unavailable
36
. SENSOR, PRESSURE
6BH-82380-00-00
Unavailable
37
SENSOR, PRESSURE
1WS-82380-00-00
Unavailable
38
NUT
8KC-RA309-00-00
Unavailable
39
SCREW, M6X1.0X20
8JP-RA258-00-00
Unavailable
40
CLAMP, 4
8JP-RAB06-00-00
Unavailable
41
CLAMP, HOSE
8JP-F1823-00-00
Unavailable
42
DUCT
8KC-E4437-00-00
Unavailable
43
HOSE 3
8KC-E3547-00-00
Unavailable
44
HOSE, BREATHER 2
8KC-E532A-00-00
Unavailable
45
SEAL, AIR DUCT
8KC-E547B-00-00
Unavailable
46
HOSE 1
8KC-E3545-00-00
Unavailable
47
HOSE,AIR 2
8KC-E3546-10-00
Unavailable
48
CLAMP, 1
8KC-RAB03-00-00
Unavailable
49
AIR COOLER ASSY.
8KC-E3670-00-00
Unavailable
50
GROMMET
8KC-E4435-00-00
Unavailable
51
PIN, 1
8KC-RAK01-00-00
Unavailable
52
CLAMP, 2
8KC-RAB04-00-00
Unavailable
53
AIR BY-PASS VALVE ASSY.
8KJ-13680-00-00
Unavailable
54
SCREW, 10-12X3/4
8KC-RA290-00-00
Unavailable
55
TIE, CABLE-8.5/7.5/7.4
8JM-RAB01-00-00
Unavailable
55
CLAMP, 2 (11.5 INCH)
8JP-RAB04-00-00
Unavailable
