Description

Price

1

CYLINDER HEAD ASSY

8KJ-11102-00-00

Unavailable

2

GUIDE, VALVE 1

2C0-11133-11-00

$61.99

3

GUIDE, VALVE 2

8HF-11134-10-00

$99.99

4

PLUG, STRAIGHT SCREW

90340-27129-00

$5.60

5

PIN, DOWEL(3XW)

91808-16023-00

$8.49

6

PIN, DOWEL(3XW)

91808-16023-00

$8.49

7

BOLT, WASHER BASED

90105-06027-00

$7.49

8

BOLT, STUD

90116-09011-00

$5.60

9

THERMO UNIT

52B-H3591-00-00

$34.99

10

GASKET

90430-10004-00

$7.49

11

CR8E NGK SPLUG 4PK

CR8-E0000-00-00

Unavailable

12

BOLT, WITH WASHER

90119-10059-00

$17.99

13

COVER, CYLINDER HEAD 1

8KJ-11191-00-00

Unavailable

14

GUIDE, STOPPER 2

5BE-12241-01-00

$29.99

15

GASKET, HEAD COVER

2HC-11193-00-00

$25.99

16

PLUG, OIL

3Y1-15363-10-00

Unavailable

17

O-RING (646)

93210-19123-00

Unavailable

18

BOLT(4BP)

90109-066F0-00

Unavailable

19

RUBBER, MOUNT 1

5VY-1111G-00-00

Unavailable

20

GASKET, CYLINDER HEAD 1

8KJ-11181-00-00

Unavailable

21

BOLT, SOCKET

91317-06065-00

Unavailable

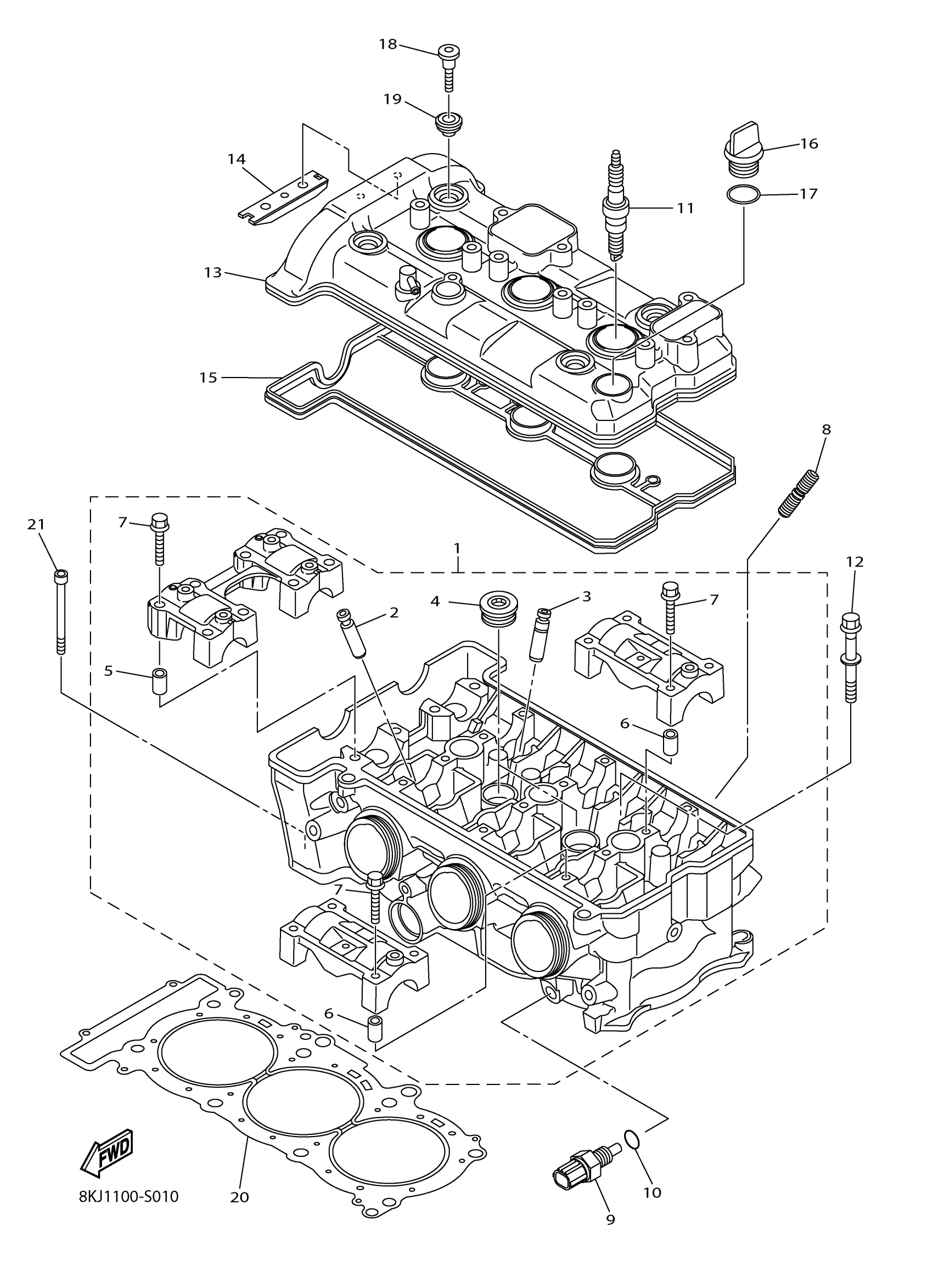

Yamaha SW1NXS37JY (SIDEWINDER X TX SE 137) 8MM1 2018 CYLINDER HEAD Diagram

CYLINDER HEAD ASSY

GUIDE, VALVE 1

GUIDE, VALVE 2

PLUG, STRAIGHT SCREW

PIN, DOWEL(3XW)

PIN, DOWEL(3XW)

BOLT, WASHER BASED

BOLT, STUD

THERMO UNIT

GASKET

CR8E NGK SPLUG 4PK

BOLT, WITH WASHER

COVER, CYLINDER HEAD 1

GUIDE, STOPPER 2

GASKET, HEAD COVER

PLUG, OIL

O-RING (646)

BOLT(4BP)

RUBBER, MOUNT 1

GASKET, CYLINDER HEAD 1

BOLT, SOCKET
