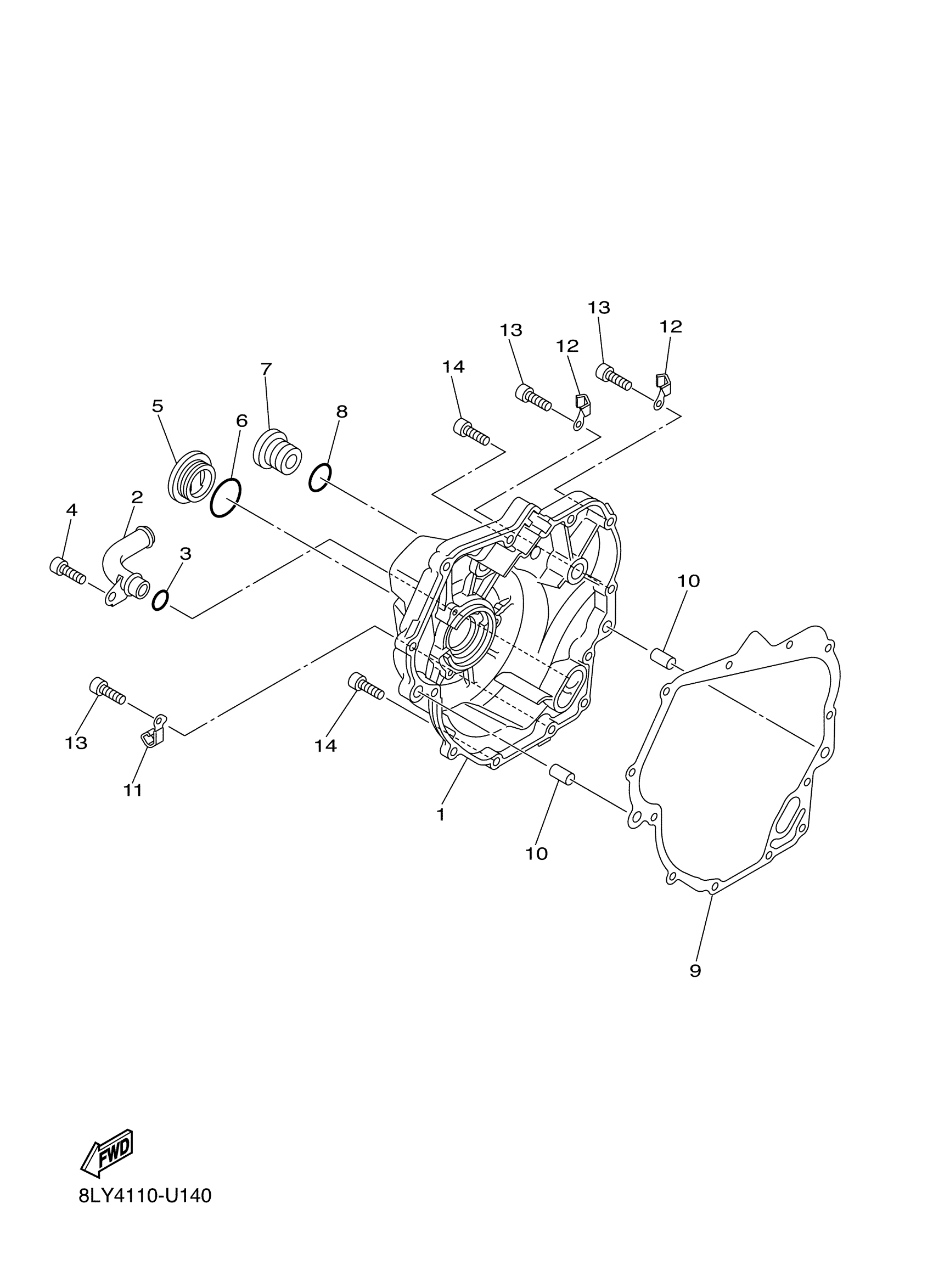

Yamaha SW1NXLRL (SIDEWINDER X TX LE 146) 8NM7 2024 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 2

B5H-15421-00-00

Unavailable

2

PIPE, OIL 1

8KJ-13416-00-00

$25.85

3

O-RING

93210-14003-00

$6.02

4

BOLT (33M)

91312-06014-00

$4.43

5

PLUG, STRAIGHT SCREW (5Y1)

90340-36078-00

$11.50

6

O-RING

93210-35804-00

$0.46

7

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$10.83

8

O-RING (2H9)

93210-14369-00

$5.42

9

GASKET, CRANKCASE

2HC-15461-00-00

$15.19

10

PIN, DOWEL

99530-08012-00

$6.14

11

CLAMP

90462-08101-00

$5.60

12

CLAMP(4AJ)

90462-08225-00

Unavailable

13

BOLT,SOCKET

91317-06025-00

$1.96

14

BOLT, HEXAGON SOCKET HEAD(3JP)

90110-06240-00

$6.57
