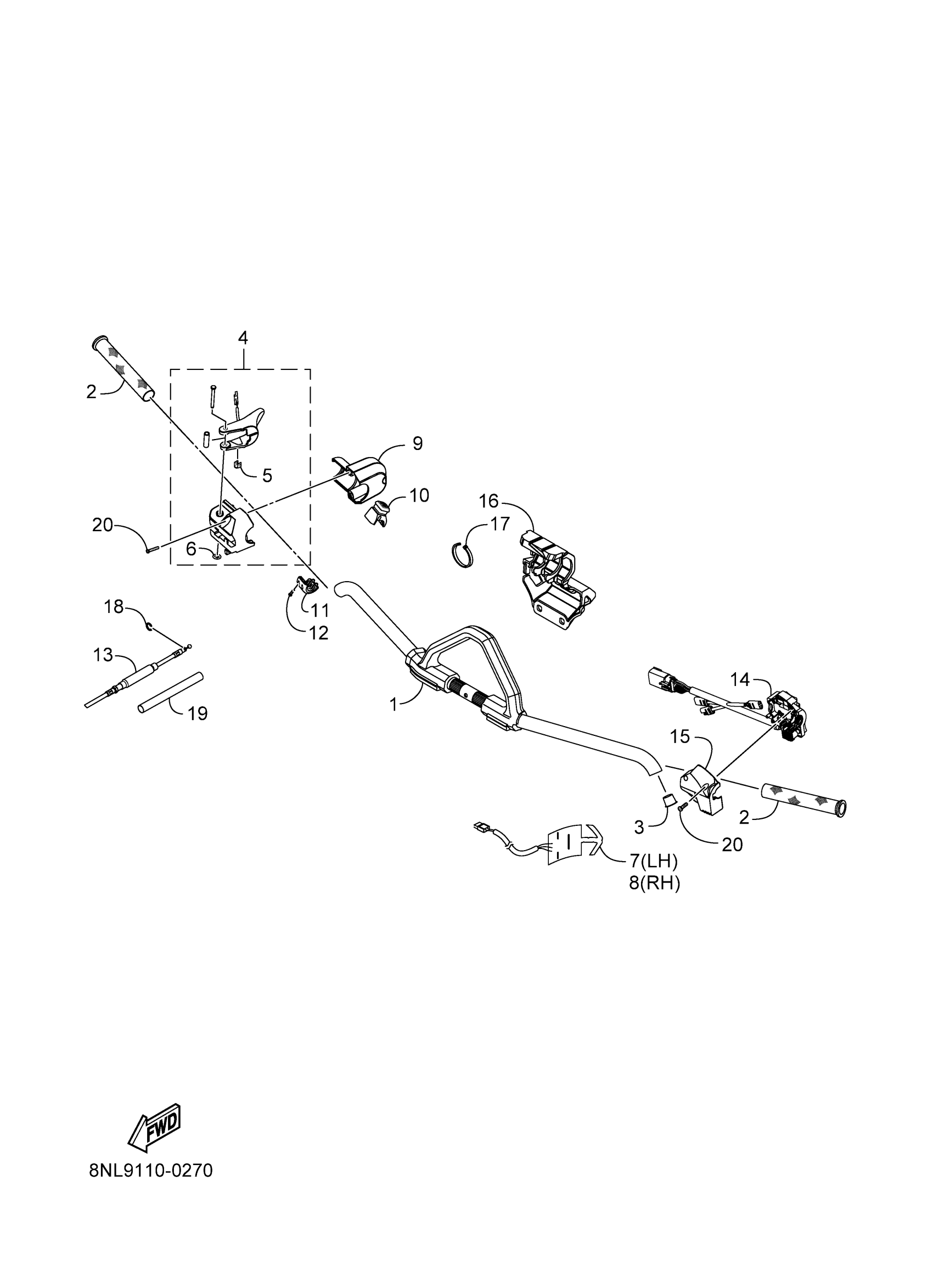

Yamaha SW1NXLPSB (SIDEWINDER XTX LE EPS) 8NM8 2025 STEERING Diagram

#

Description
Price

1

HANDLEBAR

8JR-F6111-20-00

Unavailable

2

GRIP

8JR-F6241-00-00

$15.00

3

NUT

8JR-F3856-10-00

Unavailable

4

LEVER HOLDER ASSY

8MY-H2720-10-00

$240.48

5

CLIP, 1

8JP-RAC10-10-00

Unavailable

6

NUT, 0.125

8JP-RA346-00-00

$1.03

7

GRIP,WARMER

8MY-F626A-10-00

$19.20

8

GRIP,WARMER

8MY-F626A-00-00

$25.18

9

LEVER HOLDER ASSY

8MY-H2710-00-00

$7.15

10

STOP SWITCH ASSY

8MY-H2530-00-00

Unavailable

11

CLAMP

8MY-H2544-00-00

$5.18

12

SCREW

8MY-RA200-00-00

$0.42

13

CABLE, THROTTLE 1

8MY-F6311-00-00

Unavailable

14

SWITCH, HANDLE 4

8MS-H3972-10-00

$536.86

15

SWITCH, HANDLE 3

8MY-H3973-00-00

$19.58

16

PROTECTOR, HANDLEB

8MF-F6124-00-00

Unavailable

17

TIE, CABLE-8.5/7.5/7.4

8JM-RAB01-00-00

Unavailable

17

CLAMP, 1 (4-INCH)

8JP-RAB03-00-00

Unavailable

17

CLAMP, 2 (11.5 INCH)

8JP-RAB04-00-00

Unavailable

18

RING RETAINING

8JM-RAH02-00-00

Unavailable

19

PROTECTOR

8MY-HA7A0-00-00

Unavailable

19

PROTECTOR 1

8MY-HA7A1-00-00

Unavailable

20

SCREW, 8-18X0.875

8ML-RA286-00-00

Unavailable
