- SW1NXLPL (SIDEWINDER XTX LE 146) 8NM6 2023
TRACK SUSPENSION 3

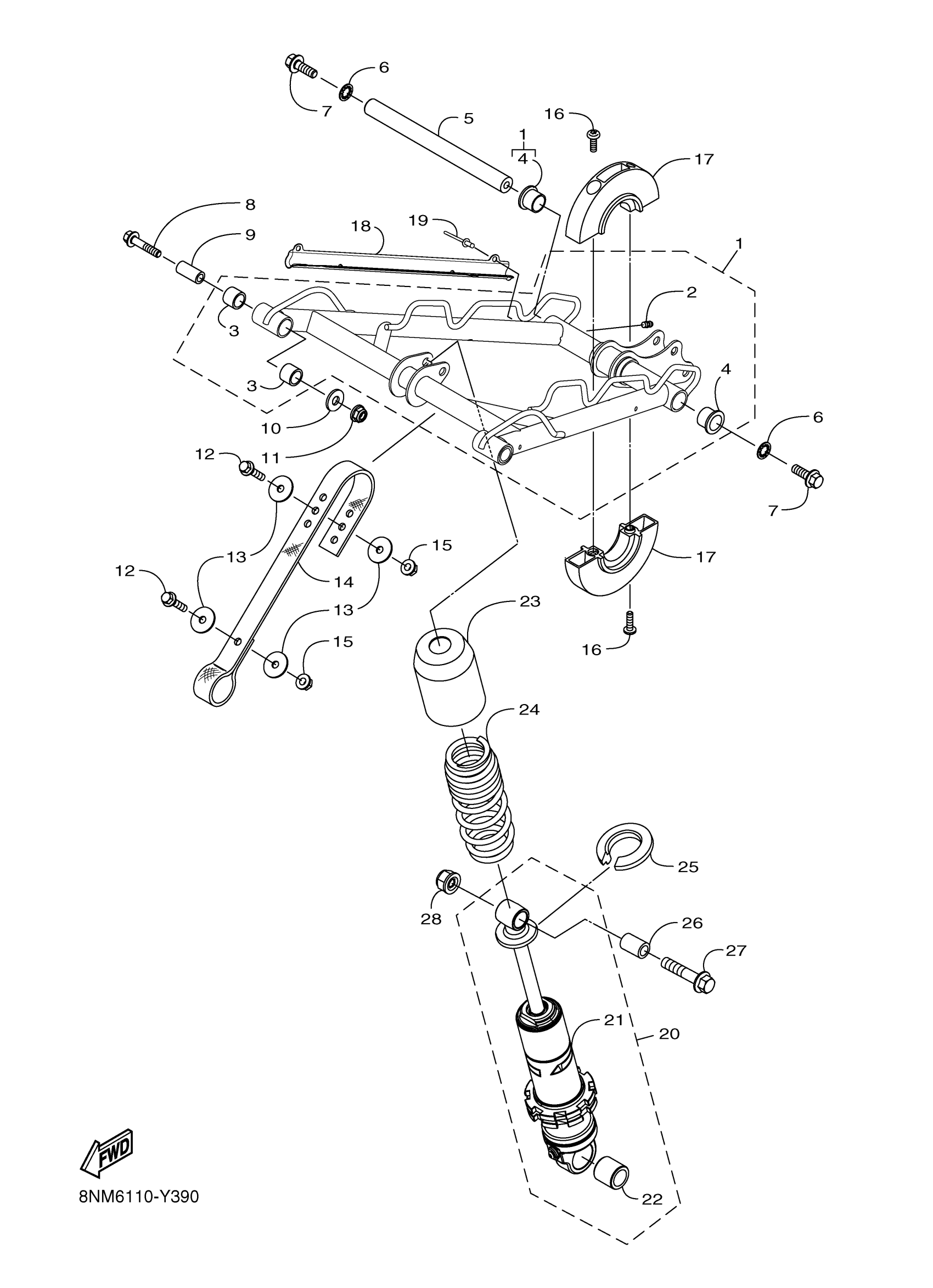

Yamaha SW1NXLPL (SIDEWINDER XTX LE 146) 8NM6 2023 TRACK SUSPENSION 3 Diagram
#
Description
Price
1
ARM, PIVOT 1
8NN-G7331-10-00
Unavailable
2
NIPPLE, GREASE 1
8JP-RAL01-00-00
$2.44
3
BUSH, 5
8JP-RA814-00-00
$4.46
4
BUSH, 0.751
8JP-RA812-00-00
$4.35
5
SHAFT 4
8JP-G7486-10-00
$35.99
6
WASHER, TOOTH M10
8JP-RA457-00-00
$0.43
7
BOLT, FLG. M10X1.2
8JP-RA199-00-00
$3.18
8
SCREW, 7
8JP-RA296-00-00
$3.88
9
COLLAR, 16
8JP-RA733-00-00
Unavailable
10
WASHER, PLAIN
8JP-RA462-00-00
$0.74
11
NUT, FLG. LOCKING
8JP-RA360-00-00
$1.16
12
BOLT, FLG. M6X1.0X
8JP-RA183-00-00
$1.16
13
WASHER, 6.87X25.4X
8JP-RA450-00-00
$0.85
14
STOPPER 1
8NN-G7495-00-00
$17.99
15
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
16
SCREW, 12
8JP-RA2A1-00-00
Unavailable
17
RIM,GUIDE WHEEL
8JR-G7513-00-00
Unavailable
18
PROTECTER, WIRE HA
8MY-H2589-00-00
Unavailable
19
CLIP, 1
8MY-RAC00-00-00
Unavailable
20
DAMPER SUB ASSY
8NN-F2201-00-00
Unavailable
21
. LABEL, WARNING
8JP-F2259-70-00
Unavailable
22
COLLAR, 22.4
8JP-RA730-00-00
Unavailable
23
COVER
8JP-F2211-00-00
Unavailable
24
SPRING
8JX-G7336-00-00
Unavailable
25
GUIDE, SPRING 1
8JP-F2214-00-00
Unavailable
26
COLLAR, 14
8JP-RA726-00-00
Unavailable
27
BOLT, FLG. M10X1.2
8JP-RA1A2-10-00
Unavailable
28
LOCK NUT
8JP-RA378-01-00
Unavailable
