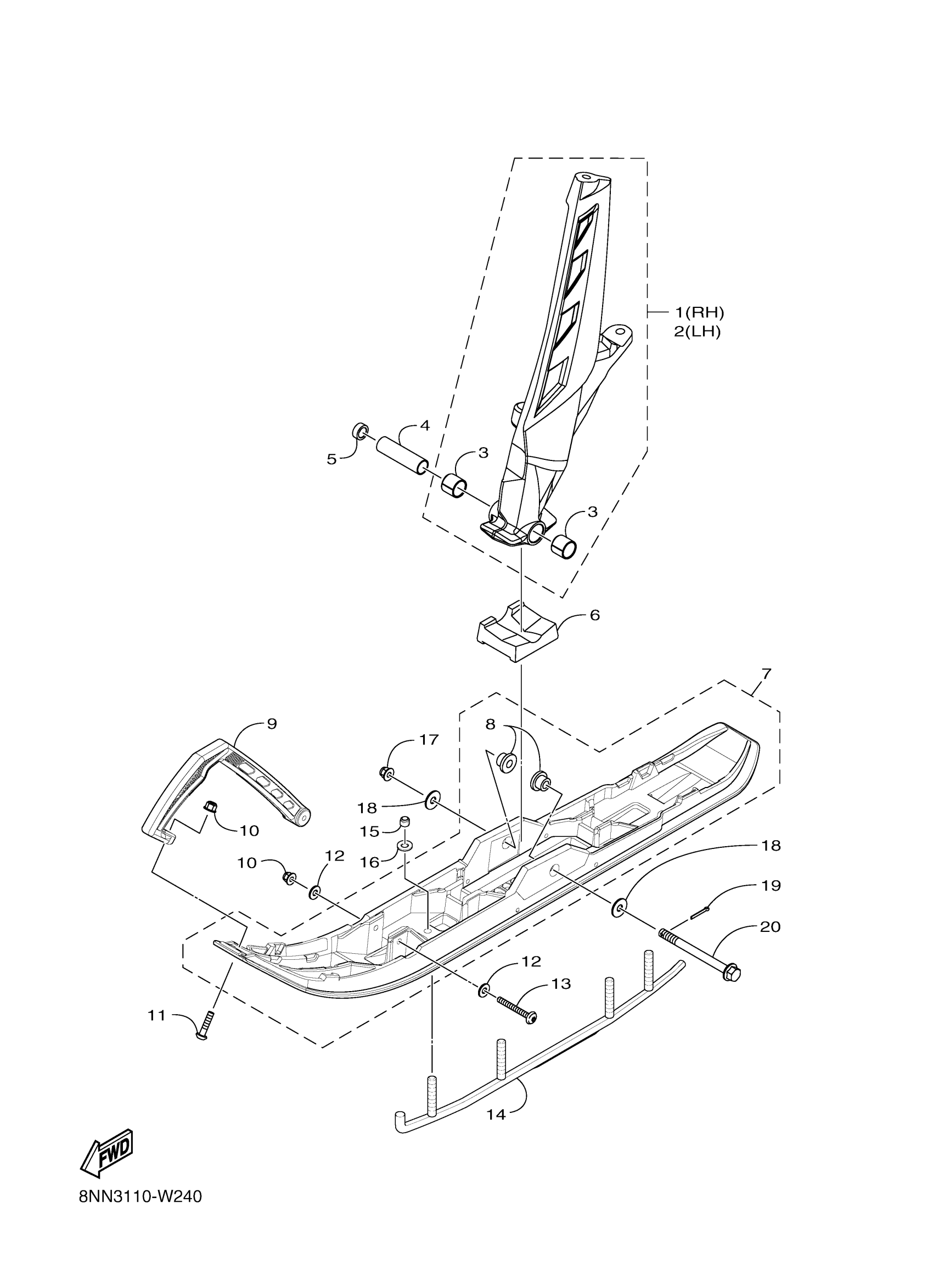

Yamaha SW1NXLMO (SIDEWINDER X TX LE) 8NN3 2021 SKI Diagram

#

Description
Price

1

KNUCKLE, STEERING

8NN-F3521-50-00

Unavailable

2

KNUCKLE, STEERING

8NN-F3511-50-00

$204.89

3

BUSH, 12DU12

8JP-RA806-00-00

$8.84

4

COLLAR

8NN-RA731-00-00

Unavailable

5

COLLAR, 6

8JP-RA718-00-00

$2.83

6

STOPPER 1

8JP-F3743-00-00

$19.58

7

SKI COMP. 1

8MA-F3710-00-00

$105.35

8

. COLLAR 1

8EX-F3754-00-00

Unavailable

9

REINFORCEMENT, HEA

8MA-F3712-20-00

$36.92

10

NUT, FLG. LOCKING

8KC-RA358-00-00

Unavailable

11

BOLT, REINFORCEMEN

8KC-F3755-00-00

$2.86

12

WASHER 1

8KC-F3737-00-00

Unavailable

13

BOLT, REINFORCEMEN

8MA-F3756-00-00

$4.36

14

RUNNER 1

8MA-F3731-00-00

Unavailable

15

NUT, SELF-LOCKING

8MA-RA358-00-00

Unavailable

16

WASHER 2

8MA-F3738-00-00

Unavailable

17

NUT, FLG. LOCKING

8JP-RA359-00-00

Unavailable

18

WASHER, 10.98X28.0

8JP-RA443-00-00

Unavailable

19

PIN, 1

8JP-RAK01-00-00

Unavailable

20

BOLT

8NN-F3767-00-00

Unavailable
