Description

Price

1

KNUCKLE, STEERING

8NN-F3521-00-00

Unavailable

2

KNUCKLE, STEERING

8NN-F3511-00-00

Unavailable

3

BUSH, 12DU12

8JP-RA806-00-00

$10.49

4

COLLAR

8NN-RA731-00-00

Unavailable

5

COLLAR, 6

8JP-RA718-00-00

$3.40

6

STOPPER 1

8JP-F3743-00-00

$24.99

7

SKI COMP. 1

8NN-F3710-00-00

$134.99

8

COLLAR, 10

8JP-RA722-00-00

$4.99

9

REINFORCEMENT, HEAD (DEEP PURPLISH BLUE SOLID E)

8JP-F3712-20-00

Unavailable

10

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.07

11

SCREW, M6X1.0X25

8JP-RA263-00-00

Unavailable

12

SCREW, M6X1.0X50

8JP-RA267-00-00

$2.65

13

RUNNER 2

8NN-F3732-00-00

$116.99

14

NUT, FLG. LOCKING

8JP-RA358-00-00

$0.80

15

NUT, FLG. LOCKING

8JP-RA359-00-00

$2.44

16

WASHER, 10.98X28.0

8JP-RA443-00-00

Unavailable

17

PIN, 1

8JP-RAK01-00-00

Unavailable

18

BOLT

8NN-F3767-00-00

Unavailable

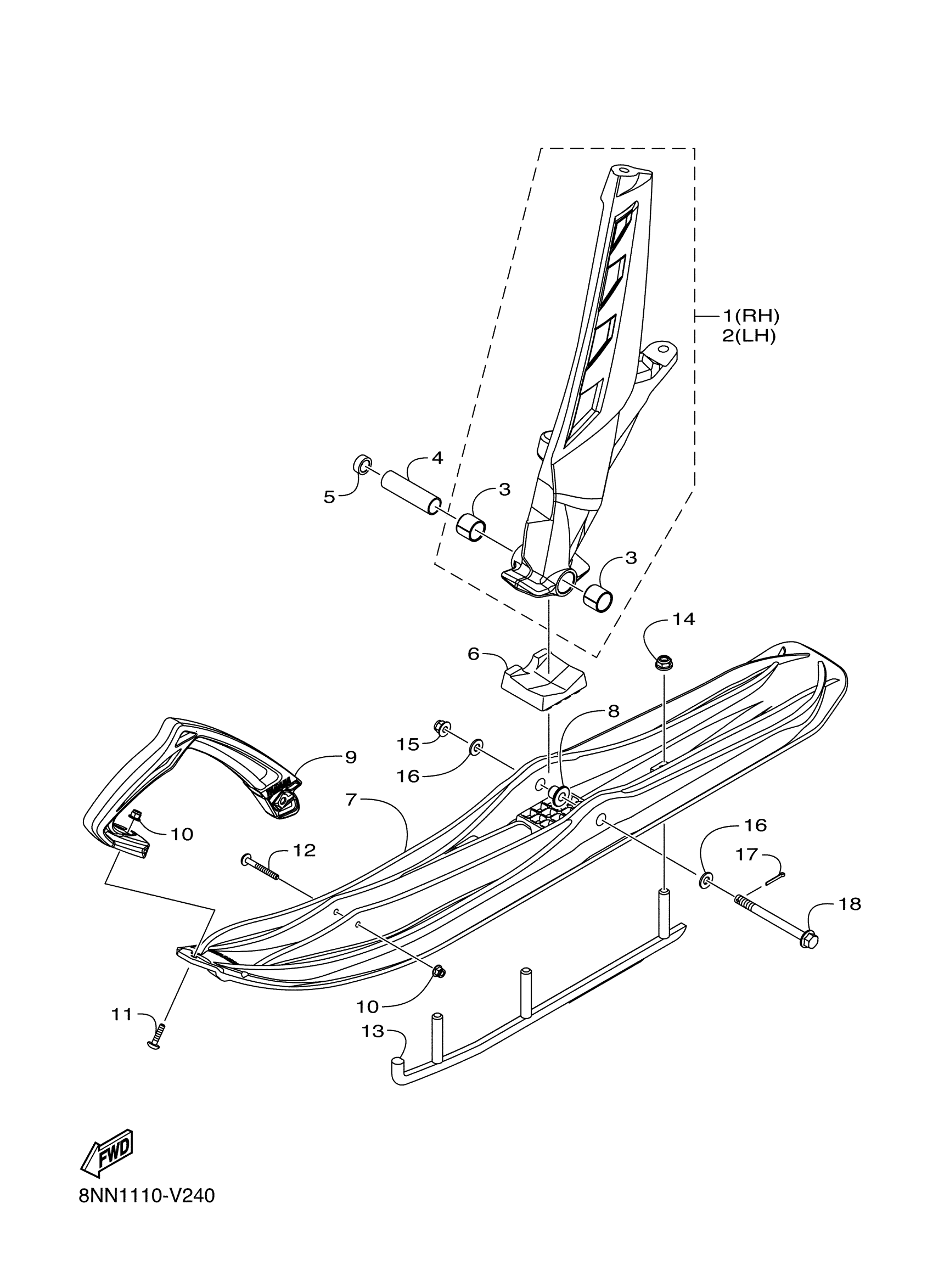

Yamaha SW1NXLLL (SIDEWINDER X TX LE 146) 8NN1 2020 SKI Diagram

KNUCKLE, STEERING

KNUCKLE, STEERING

BUSH, 12DU12

COLLAR

COLLAR, 6

STOPPER 1

SKI COMP. 1

COLLAR, 10

REINFORCEMENT, HEAD (DEEP PURPLISH BLUE SOLID E)

NUT,FLG. M6-1.0

SCREW, M6X1.0X25

SCREW, M6X1.0X50

RUNNER 2

NUT, FLG. LOCKING

NUT, FLG. LOCKING

WASHER, 10.98X28.0

PIN, 1

BOLT
