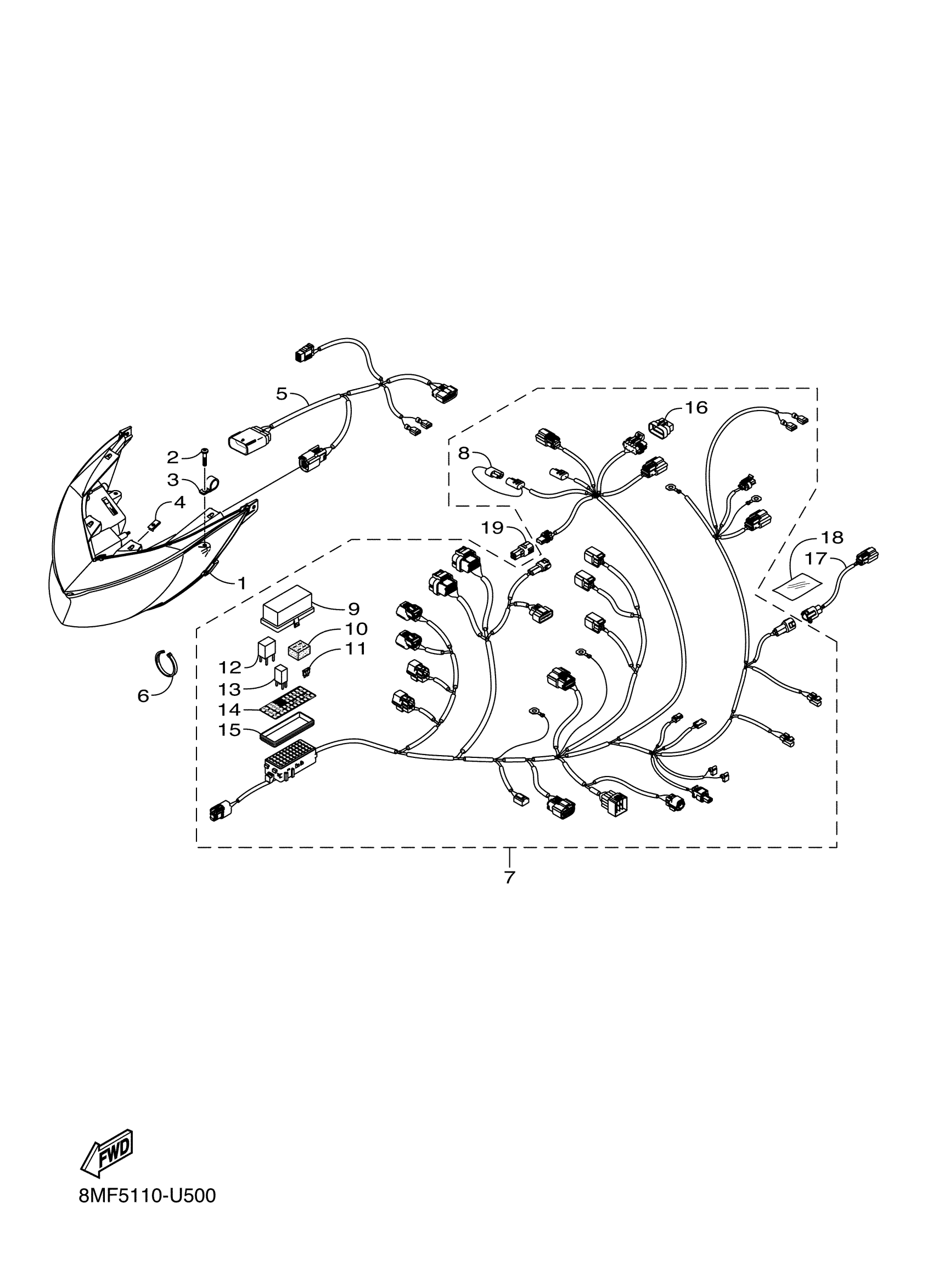

Yamaha SW1NXLLL (SIDEWINDER X TX LE 146) 8NN1 2020 ELECTRICAL 1 Diagram

#

Description
Price

1

HEADLIGHT UNIT ASS

8KC-H4310-00-00

$551.99

2

SCREW, TAPPING 1/4

8JP-RA284-00-00

Unavailable

3

CLAMP, 17

8JP-RAB19-00-00

Unavailable

4

NUT, CLIP M6X1.0

8JP-RA355-00-00

$1.16

5

WIRE HARNESS

8KC-H2105-00-00

$86.99

6

TIE, CABLE-8.5/7.5/7.4

8JM-RAB01-00-00

Unavailable

6

CLAMP, 1 (4-INCH)

8JP-RAB03-00-00

Unavailable

6

CLAMP, 2 (11.5 INCH)

8JP-RAB04-00-00

Unavailable

7

WIRE HARNESS ASSY

8NN-H2590-00-00

$562.99

8

. ANCHOR, CABLE 1

8JP-G8352-00-00

Unavailable

9

COVER, FUSE BOX

8JP-H2172-00-00

$8.49

10

. HOLDER, FUSE

8JP-H2152-00-00

Unavailable

11

FUSE (15A)

8JP-H2151-00-00

$2.92

11

FUSE (20A)

8JP-H2151-10-00

$3.81

11

FUSE (25A)

8JP-H2151-20-00

$4.77

11

FUSE (30A)

8JP-H2151-30-00

Unavailable

12

RELAY 1

8MS-H2185-00-00

Unavailable

13

RELAY 2

8MS-H2189-00-00

Unavailable

14

EMBLEM 1

8KC-R2391-00-00

Unavailable

15

GASKET, HOLE COVER

8JP-H1365-00-00

Unavailable

16

COVER, CONNECTER

8JP-H1662-10-00

Unavailable

17

EXTENSION, WIRE HARNESS

8KG-H2586-00-00

Unavailable

18

TAPE,ALUM FOIL - 6" X 30 FT

8JM-F199H-00-00

Unavailable

19

COVER, CONNECTER

8JP-H1662-20-00

Unavailable
