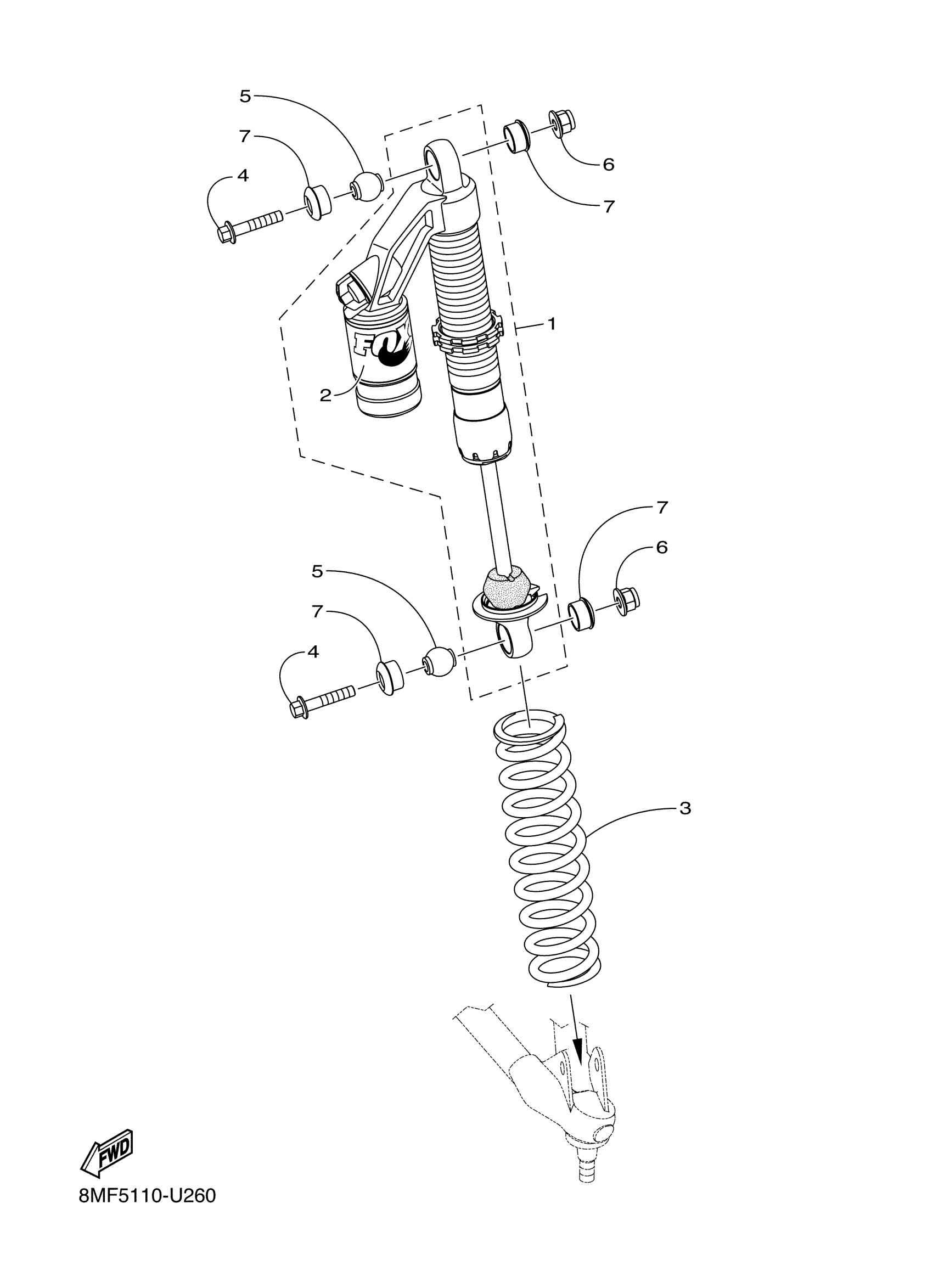

Yamaha SW1NXLKL (SIDEWINDER X TX LE 141) 8NA1 2019 FRONT SUSPENSION 2 Diagram

#

Description

Price

1

DAMPER ASSY

8MX-F330E-00-00

Unavailable

2

LABEL 6

8JW-F151J-00-00

$44.25

3

SPRING

8JW-F3351-00-00

$38.72

4

BOLT, FLG. M8X50

8KG-RA1B9-00-00

$3.58

5

COLLAR 12

8KG-RA724-00-00

Unavailable

6

NUT FLANGE LOCKING

8JP-RA360-10-00

$0.90

7

BUSH, 8

8KG-RA817-00-00

$3.32
