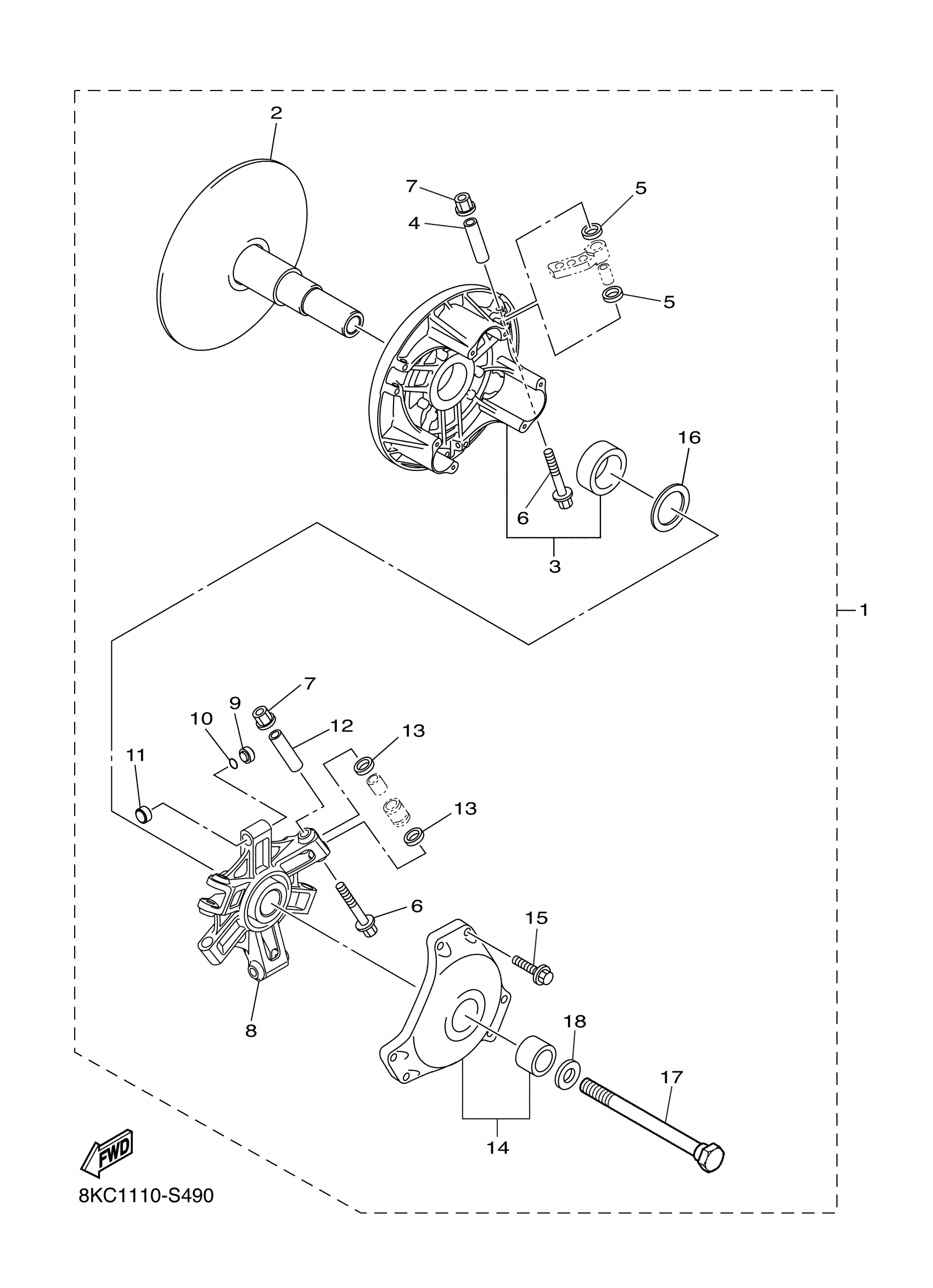

Yamaha SW1NXLKL (SIDEWINDER X TX LE 141) 8NA1 2019 ALTERNATE REBUILD KIT Diagram

#

Description
Price

1

CLUTCH REPAIR KIT

8KC-W176G-00-00

$884.73

2

PRIMARY FIXED SHEAVE COMP.

8KC-17610-00-00

$354.42

3

PRIMARY SLIDING SHEAVE COMP.

8KC-17620-00-00

$242.51

4

COLLAR

90387-05060-00

$12.48

5

WASHER, PLATE

90202-08005-00

$0.67

6

BOLT, FLANGE

90105-05030-00

$0.85

7

NUT, S/L FLANGE

95607-05200-00

$6.39

8

SPIDER

8KC-17627-00-00

Unavailable

9

SLIDER

8KC-17653-00-00

$15.24

10

O-RING (214)

93210-07100-00

$5.50

11

SLIDER

8KC-17653-10-00

$19.10

12

COLLAR

90387-05059-00

$13.43

13

WASHER, PLATE

90202-09002-00

$0.67

14

PRIMARY SHEAVE CAP COMP.

8DF-17630-00-00

$170.88

15

BOLT, FLANGE

95812-06030-00

$1.55

16

WASHER, PLATE

90201-33016-00

Unavailable

17

BOLT (L=156.5MM)

8V0-17647-10-00

Unavailable

18

WASHER(JN5)

92907-16100-00

Unavailable
