Description

Price

1

KNUCKLE, STEERING

8NN-F3521-10-00

$244.99

2

KNUCKLE, STEERING

8NN-F3511-10-00

$260.99

3

BUSH, 12DU12

8JP-RA806-00-00

$10.49

4

COLLAR, 75

8JP-RA731-00-00

$31.99

5

COLLAR, 6

8JP-RA718-00-00

$3.40

6

STOPPER 1

8NS-F3743-00-00

$22.99

7

SKI COMP. 1

8MA-F3710-10-00

Unavailable

8

. COLLAR 1

8EX-F3754-00-00

Unavailable

9

REINFORCEMENT, HEAD

8MA-F3712-60-00

Unavailable

10

NUT, FLG. LOCKING

8KC-RA358-00-00

Unavailable

11

BOLT, REINFORCEMEN

8KC-F3755-00-00

$4.56

12

WASHER 1

8KC-F3737-00-00

Unavailable

13

BOLT, REINFORCEMEN

8MA-F3756-00-00

$5.60

14

RUNNER 2

8PB-F3732-00-00

$348.99

15

RUNNER 1

8PB-F3731-00-00

$355.99

16

INSERT

8MA-F3775-00-00

Unavailable

17

NUT, FLG. LOCKING

8JP-RA358-00-00

Unavailable

18

NUT, S/L FLANGE

95602-10200-00

Unavailable

19

WASHER, PLATE

90201-10043-00

Unavailable

20

PIN, COTTER

91490-20025-00

Unavailable

21

BOLT, FLANGE

90105-10070-00

Unavailable

22

INSERT (HALVES) 5.0

8MA-F3775-20-00

Unavailable

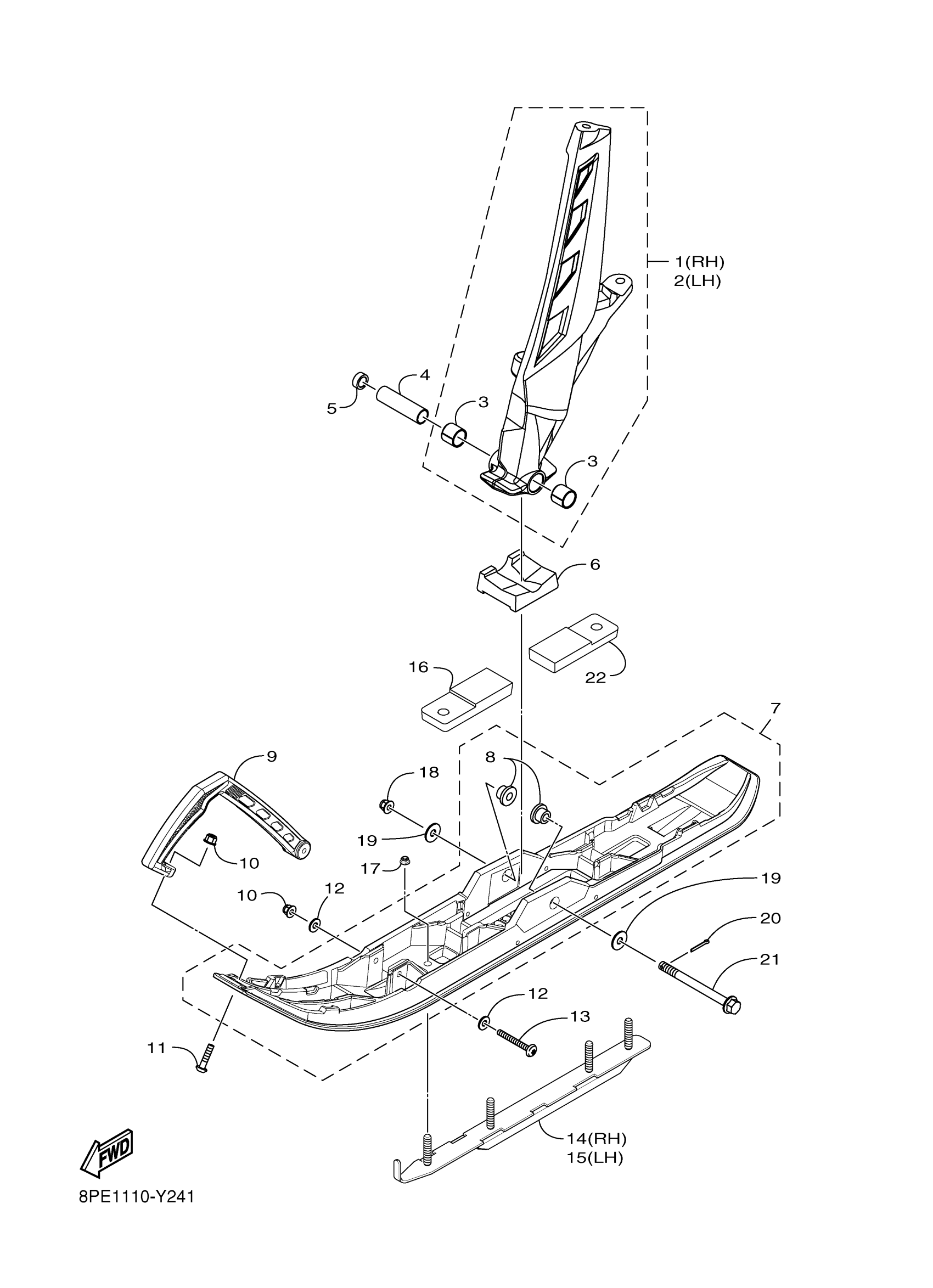

Yamaha SW1NSRLPSL (SIDEWINDER SRX LE EPS) 8PE5 2025 SKI Diagram

KNUCKLE, STEERING

KNUCKLE, STEERING

BUSH, 12DU12

COLLAR, 75

COLLAR, 6

STOPPER 1

SKI COMP. 1

. COLLAR 1

REINFORCEMENT, HEAD

NUT, FLG. LOCKING

BOLT, REINFORCEMEN

WASHER 1

BOLT, REINFORCEMEN

RUNNER 2

RUNNER 1

INSERT

NUT, FLG. LOCKING

NUT, S/L FLANGE

WASHER, PLATE

PIN, COTTER

BOLT, FLANGE

INSERT (HALVES) 5.0
