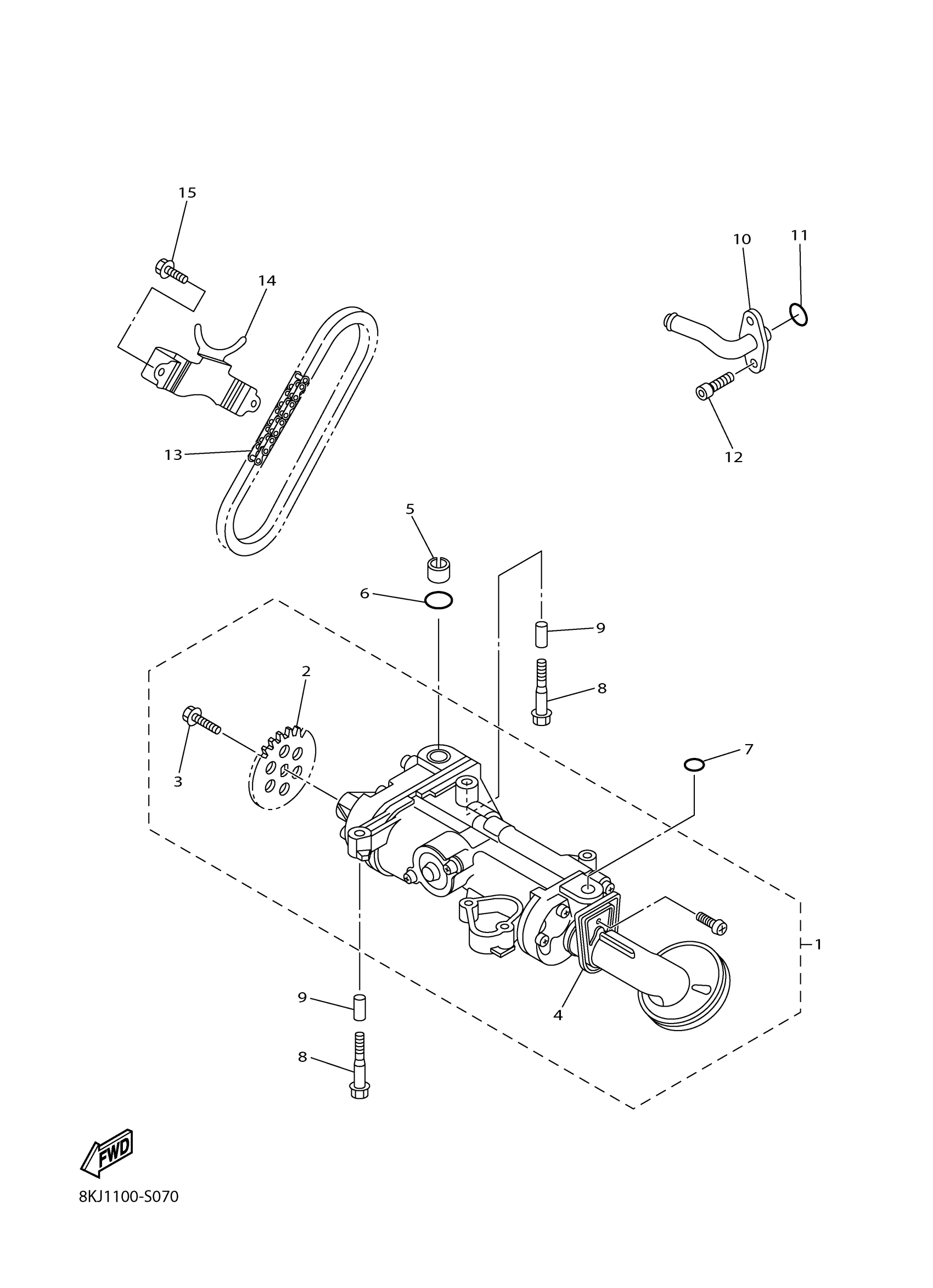

Yamaha SW1NSRLPSL (SIDEWINDER SRX LE EPS) 8PE5 2025 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

8KJ-13300-01-00

Unavailable

2

SPROCKET, DRIVEN

8KJ-13355-00-00

Unavailable

3

BOLT, FLANGE

90105-06066-00

$5.87

4

SPACER, STRAINER

8ES-13427-00-00

$13.91

5

PIPE

8ES-13284-00-00

$3.26

6

O-RING (1L9)

93210-18322-00

$4.43

7

O-RING (26H)

93210-14579-00

$5.29

8

BOLT, FLANGE

95817-06040-00

$4.24

9

PIN, DOWEL(8AH)

91808-22019-00

$6.39

10

CONNECTOR, SUCTION PIPE

8KJ-13115-00-00

Unavailable

11

O-RING (26H)

93210-16629-00

$5.60

12

BOLT(3MA)

91312-06016-00

$4.68

13

CHAIN

94580-25064-00

$9.49

14

HOLDER

8ES-13898-01-00

$23.70

15

BOLT, FLANGE

95817-06012-00

$1.40
