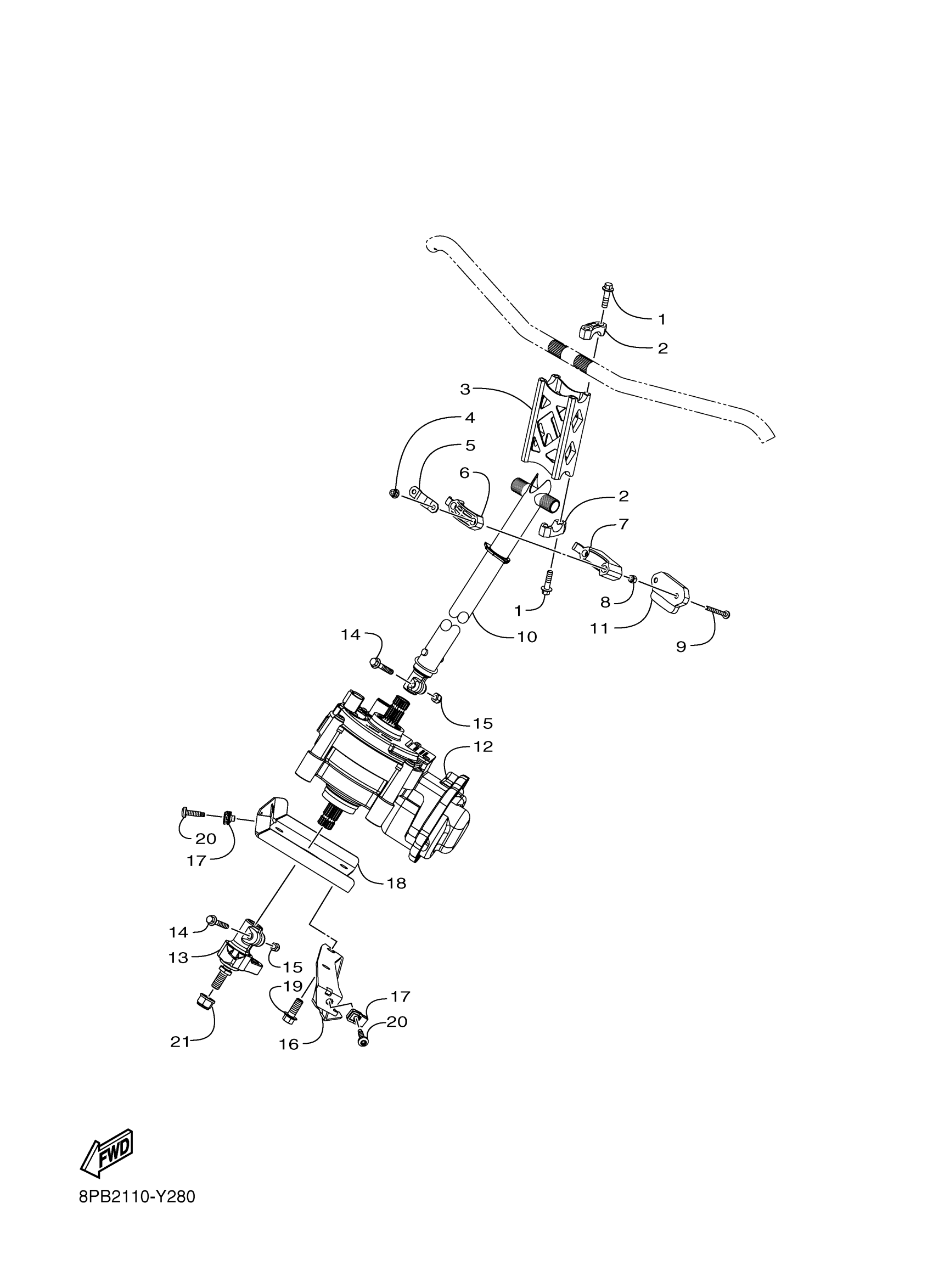

Yamaha SW1NSRLPPL (SIDEWINDER SRX LE EPS) 8PE1 2023 STEERING 2 Diagram

#

Description
Price

1

BOLT, FLG. M8X1.25

8JP-RA188-00-00

Unavailable

2

HOLDER, HANDLE UPP

8JP-F3814-10-00

$17.99

3

JOINT

8NT-F381B-00-00

Unavailable

4

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.07

5

HOLDER, BEARING

8JP-F3872-00-00

$2.97

6

BEARING,STEERING

8KG-F3812-00-00

$4.35

7

BEARING, STEERING

8ND-F3812-00-00

$3.81

8

NUT, LOCK 1

8JP-RA379-00-00

$0.54

9

SCREW, 10

8JP-RA299-00-00

$2.65

10

COLUMN, STEERING 2

8PC-F3813-00-00

$125.99

11

STOPPER 1

8PC-F381C-00-00

$16.99

12

POWER STRG. ACTUAT

8PC-F38B0-00-00

$1,859.99

13

COLUMN, STEERING

8PC-F3811-00-00

$151.99

14

BOLT, FLANGE 1/4-2

8JM-RA138-00-00

Unavailable

15

NUT, FLG. LOCKING

8JP-RA357-00-00

$0.54

16

BRACKET 1

8PC-F3881-00-00

Unavailable

17

NUT, CLIP M6

8JP-RA354-00-00

Unavailable

18

BRACKET 2

8PC-F3882-00-00

Unavailable

19

BOLT, FLANGE

8ND-RA117-00-00

Unavailable

20

SCREW, M6X18

8KC-RA270-00-00

Unavailable

21

LOCK NUT

8JP-RA378-01-00

Unavailable
