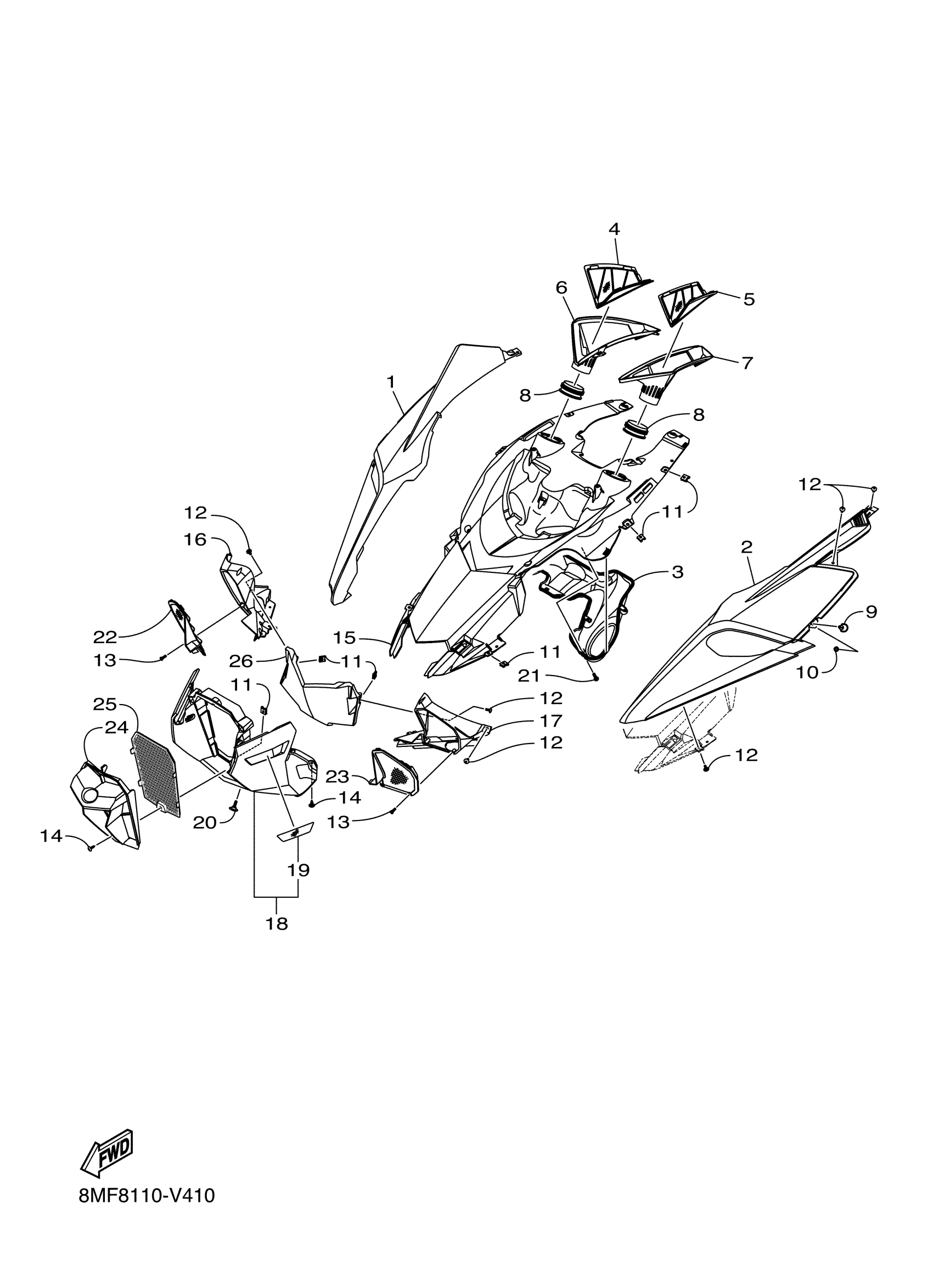

Yamaha SW1NSRLPPL (SIDEWINDER SRX LE EPS) 8PE1 2023 SHROUD Diagram
#
Description
Price
1
HOOD 2
8KC-K7122-00-00
$198.99
1
HOOD, 4
8PE-K7122-00-00
$137.99
2
HOOD 1
8KC-K7121-00-00
$198.99
2
HOOD, 3
8PE-K7121-00-00
$137.99
3
INTAKE, LOWER
8KC-K715B-00-00
Unavailable
4
SCREEN, INTAKE DUC
8KC-K715E-00-00
Unavailable
5
SCREEN, INTAKE DUC
8KC-K715D-00-00
Unavailable
6
DUCT, INTAKE 2
8KC-K715G-10-00
Unavailable
7
DUCT, INTAKE 1
8KC-K715F-10-00
Unavailable
8
SEAL, INTAKE
8KC-K715R-00-00
$4.29
9
PIN, 2
8JP-RAK02-00-00
$26.99
10
NUT, 1
8JP-RA345-00-00
Unavailable
11
NUT, CLIP 10
8JP-RA352-00-00
$1.64
12
SCREW, TAPPING 1/4
8JP-RA202-00-00
$1.86
13
SCREW, 4
8KC-RA238-00-00
Unavailable
14
SCREW, 10-12X3/4
8KC-RA290-00-00
Unavailable
15
INTAKE, UPPER
8KC-K715C-00-00
Unavailable
16
VENT, FRONT 2
8KC-K715J-10-00
Unavailable
17
VENT, FRONT 1
8KC-K715H-10-00
Unavailable
18
DUCT, INTAKE FRON
8NA-K715K-00-00
Unavailable
19
TAPE,REFLECTOR
8MY-H5133-00-00
Unavailable
20
SCREW, 5
8KC-RA239-00-00
Unavailable
21
SCREW, 13
8JP-RA2A2-00-00
Unavailable
22
BEZEL, VENT 2
8KC-K715M-00-00
Unavailable
23
BEZEL, VENT 1
8KC-K715L-00-00
Unavailable
24
GRILLE
8KC-K715N-00-00
Unavailable
25
GUIDE 1
8KC-K7123-00-00
Unavailable
26
SHUT, INTAKE
8KC-K715P-00-00
Unavailable
