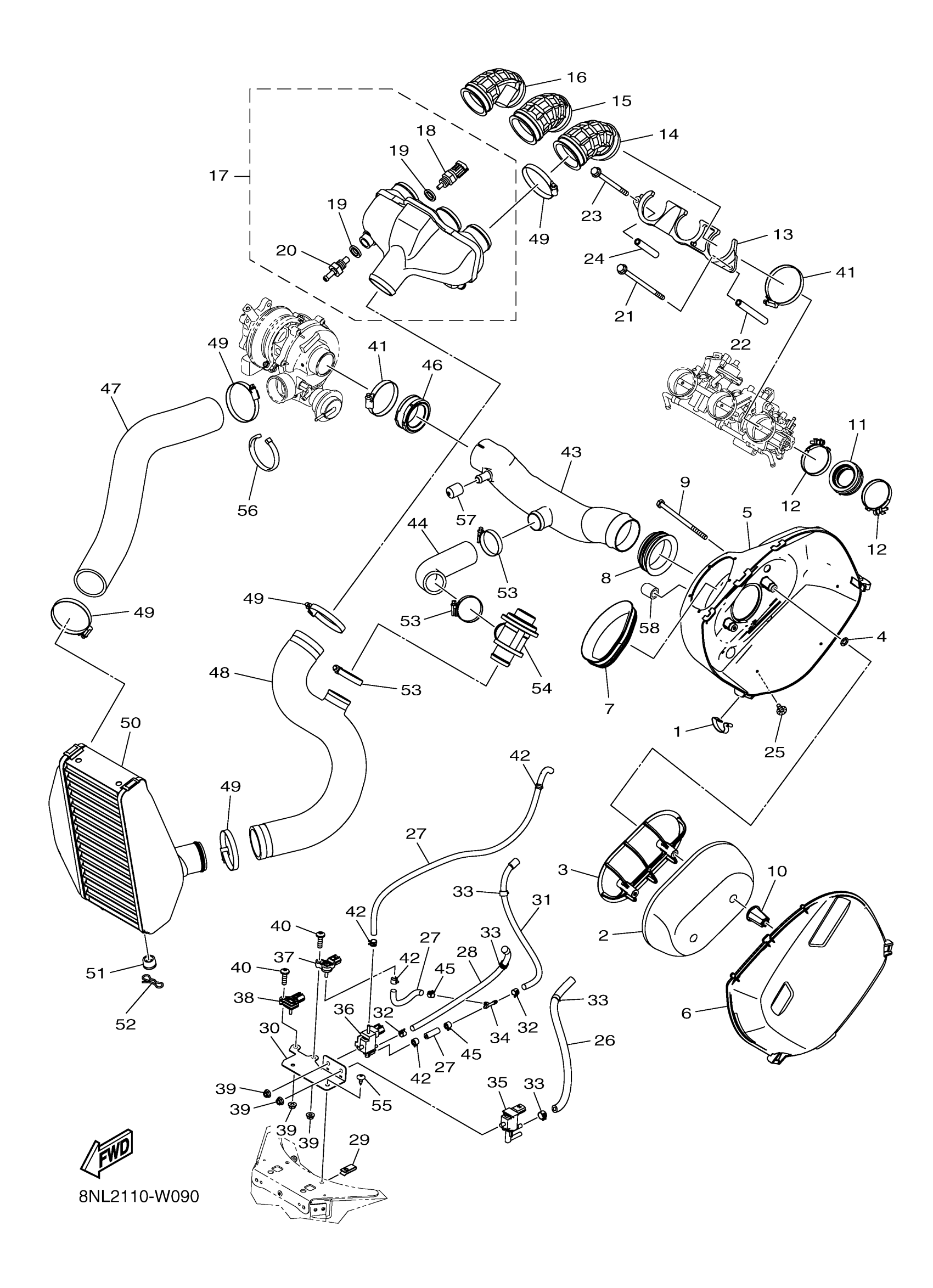

Yamaha SW1NSRLNW (SIDEWINDER SRX LE) 8MY4 2022 INTAKE Diagram
#
1
HOOK
8KC-E4436-00-00
Unavailable
2
ELEMENT, AIR CLEAN
8KC-E4451-10-00
$60.99
3
GUIDE
8KC-E4458-00-00
$55.99
4
NUT, 1/4
8JP-RA347-00-00
$1.43
5
SILENCER, INTAKE 1
8KC-E4431-10-00
Unavailable
6
SILENCER, INTAKE 2
8KC-E4441-00-00
Unavailable
7
BOOT
8KC-E6815-10-00
$24.99
8
SEAL, AIR DUCT
8KC-E5472-00-00
$5.60
9
BOLT, HEX. M6X1X10
8JP-RA1B0-00-00
Unavailable
10
NUT, HOLDING
8KC-E4164-00-00
$5.60
11
JOINT
8GL-13595-00-00
$18.99
12
HOSE CLAMP ASSY
90450-60004-00
$16.99
13
BRACKET 1
8KJ-14291-00-00
$48.99
14
JOINT, AIR CLEANER 1
8KJ-14453-01-00
Unavailable
15
JOINT, AIR CLEANER 2
8KJ-14463-01-00
$36.99
16
JOINT
8KJ-14454-01-00
Unavailable
17
INTAKE MANIFOLD ASSY.
8KJ-13630-00-00
Unavailable
18
THERMOSENSOR
65L-85886-00-00
Unavailable
19
. WASHER
6S5-14285-00-00
Unavailable
20
NIPPLE
8KJ-14251-00-00
Unavailable
21
BOLT, FLG.
8KC-RA1A2-00-00
Unavailable
22
COLLAR
8KC-RA712-00-00
Unavailable
23
BOLT, FLANGE
8KC-RA1B4-00-00
Unavailable
24
COLLAR, 1
8KC-RA713-00-00
Unavailable
25
SCREW, TAPPING 1/4
8JP-RA202-00-00
Unavailable
26
HOSE, 13 (25 FEET)
8JM-RA902-10-00
Unavailable
27
HOSE, 1
8KC-RA905-00-00
Unavailable
28
HOSE, 2
8KC-RA906-00-00
Unavailable
29
NUT, CLIP 10
8JP-RA351-00-00
Unavailable
30
BRACKET
8PC-H3614-00-00
Unavailable
31
HOSE, 3
8KC-RA907-00-00
Unavailable
32
CLAMP, 3
8KC-RAB02-00-00
Unavailable
33
CLAMP, 18
8JP-RAB20-00-00
Unavailable
34
PIPE, JOINT
8KC-E4485-00-00
Unavailable
35
SOLENOID VALVE ASSY
8KJ-86120-00-00
Unavailable
36
SOLENOID VALVE ASSY 2
8KJ-86130-00-00
Unavailable
37
. SENSOR, PRESSURE
6BH-82380-00-00
Unavailable
38
SENSOR, PRESSURE
1WS-82380-00-00
Unavailable
39
NUT
8KC-RA309-00-00
Unavailable
40
SCREW, M6X1.0X20
8JP-RA258-00-00
Unavailable
41
CLAMP, 4
8JP-RAB06-00-00
Unavailable
42
CLAMP, 1
8MY-RAB00-00-00
Unavailable
43
DUCT
8KC-E4437-00-00
Unavailable
44
HOSE 3
8KC-E3547-00-00
Unavailable
45
CLAMP, 10
8JP-RAB12-00-00
Unavailable
46
SEAL, AIR DUCT
8KC-E547B-00-00
Unavailable
47
HOSE 1
8KC-E3545-00-00
Unavailable
48
HOSE,AIR 2
8KC-E3546-10-00
Unavailable
49
CLAMP, 1
8KC-RAB03-00-00
Unavailable
50
AIR COOLER ASSY.
8KC-E3670-00-00
Unavailable
51
GROMMET
8KC-E4435-00-00
Unavailable
52
PIN, 1
8KC-RAK01-00-00
Unavailable
53
CLAMP, 2
8KC-RAB04-00-00
Unavailable
54
AIR BY-PASS VALVE ASSY.
8KJ-13680-00-00
Unavailable
55
SCREW, 10-12X3/4
8KC-RA290-00-00
Unavailable
56
TIE, CABLE-8.5/7.5/7.4
8JM-RAB01-00-00
Unavailable
56
CLAMP, 2 (11.5 INCH)
8JP-RAB04-00-00
Unavailable
57
CAP
8MF-E4799-00-00
Unavailable
58
CAP
8MF-E4118-00-00
Unavailable
