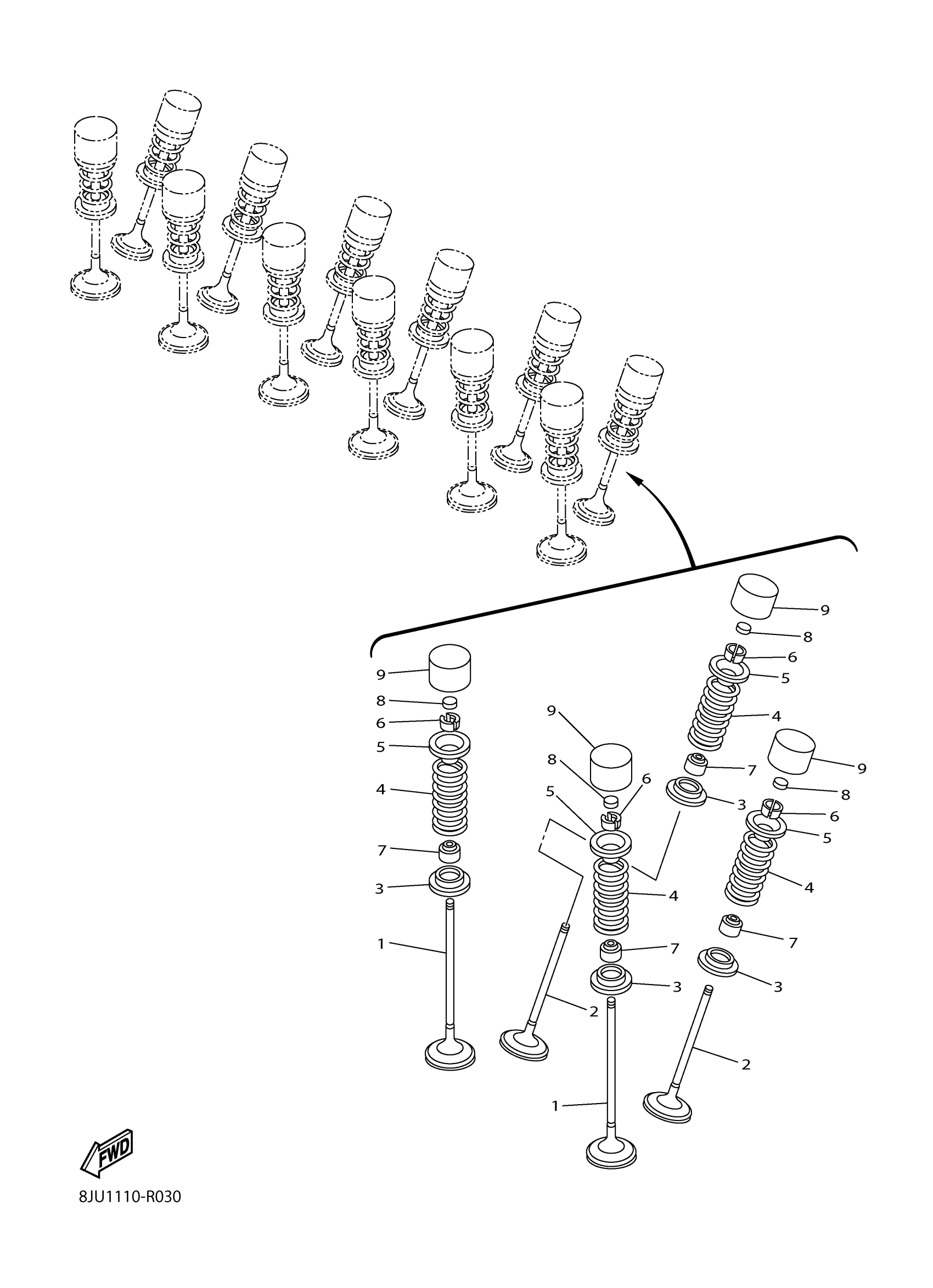

Yamaha SW1NSRLLB (SIDEWINDER SRX LE) 8MY2 2020 VALVE Diagram
#
1
VALVE, INTAKE
8GL-12111-10-00
$29.99
2
VALVE, EXHAUST
8GL-12121-10-00
$49.99
3
SEAT, VALVE SPRING
1RC-12116-00-00
$2.18
4
SPRING, VALVE INNE
8HF-12113-01-00
Unavailable
5
RETAINER, VALVE SPRING
3D7-12117-00-00
$6.99
6
COTTER, VALVE
1WG-12118-00-00
$8.99
7
SEAL, VALVE STEM
2HC-12119-00-00
$5.49
8
PAD, ADJUSTING 2 (1.20)
1HX-12168-00-00
Unavailable
8
PAD, ADJUSTING 2 (1.25)
1HX-12168-20-00
Unavailable
8
PAD, ADJUSTING 2 (1.30)
1HX-12168-40-00
Unavailable
8
PAD, ADJUSTING 2 (1.35)
1HX-12168-60-00
Unavailable
8
PAD, ADJUSTING 2 (1.40)
1HX-12168-80-00
$22.99
8
PAD, ADJUSTING 2 (1.45)
1HX-12168-A0-00
$20.99
8
PAD, ADJUSTING 2 (1.50)
1HX-12168-F0-00
$20.99
8
PAD, ADJUSTING 2 (1.55)
1HX-12168-H1-00
$22.99
8
PAD, ADJUSTING 2 (1.60)
1HX-12168-K1-00
Unavailable
8
PAD, ADJUSTING 2 (1.65)
1HX-12168-M1-00
Unavailable
8
PAD, ADJUSTING 2 (1.70)
1HX-12168-R1-00
Unavailable
8
PAD, ADJUSTING 2 (1.75)
1HX-12168-U1-00
Unavailable
8
PAD, ADJUSTING 2 (1.80)
1HX-12168-W1-00
Unavailable
8
PAD, ADJUSTING 2 (1.85)
1HX-12168-Y1-00
Unavailable
8
PAD, ADJUSTING 2 (1.90)
1HX-12169-11-00
Unavailable
8
PAD, ADJUSTING 2 (1.95)
1HX-12169-31-00
Unavailable
8
PAD, ADJUSTING 2 (2.00)
1HX-12169-50-00
Unavailable
8
PAD, ADJUSTING 2 (2.05)
1HX-12169-70-00
Unavailable
8
PAD, ADJUSTING 2 (2.10)
1HX-12169-90-00
Unavailable
8
PAD, ADJUSTING 2 (2.15)
1HX-12169-E0-00
Unavailable
8
PAD, ADJUSTING 2 (2.20)
1HX-12169-G0-00
Unavailable
8
PAD, ADJUSTING 2 (2.25)
1HX-12169-J0-00
Unavailable
8
PAD, ADJUSTING 2 (2.30)
1HX-12169-L0-00
Unavailable
8
PAD, ADJUSTING 2 (2.35)
1HX-12169-N0-00
Unavailable
8
PAD, ADJUSTING 2 (2.40)
1HX-12169-T0-00
Unavailable
9
LIFTER, VALVE
4C8-12153-09-00
Unavailable
9
LIFTER, VALVE
4C8-12153-11-00
Unavailable
