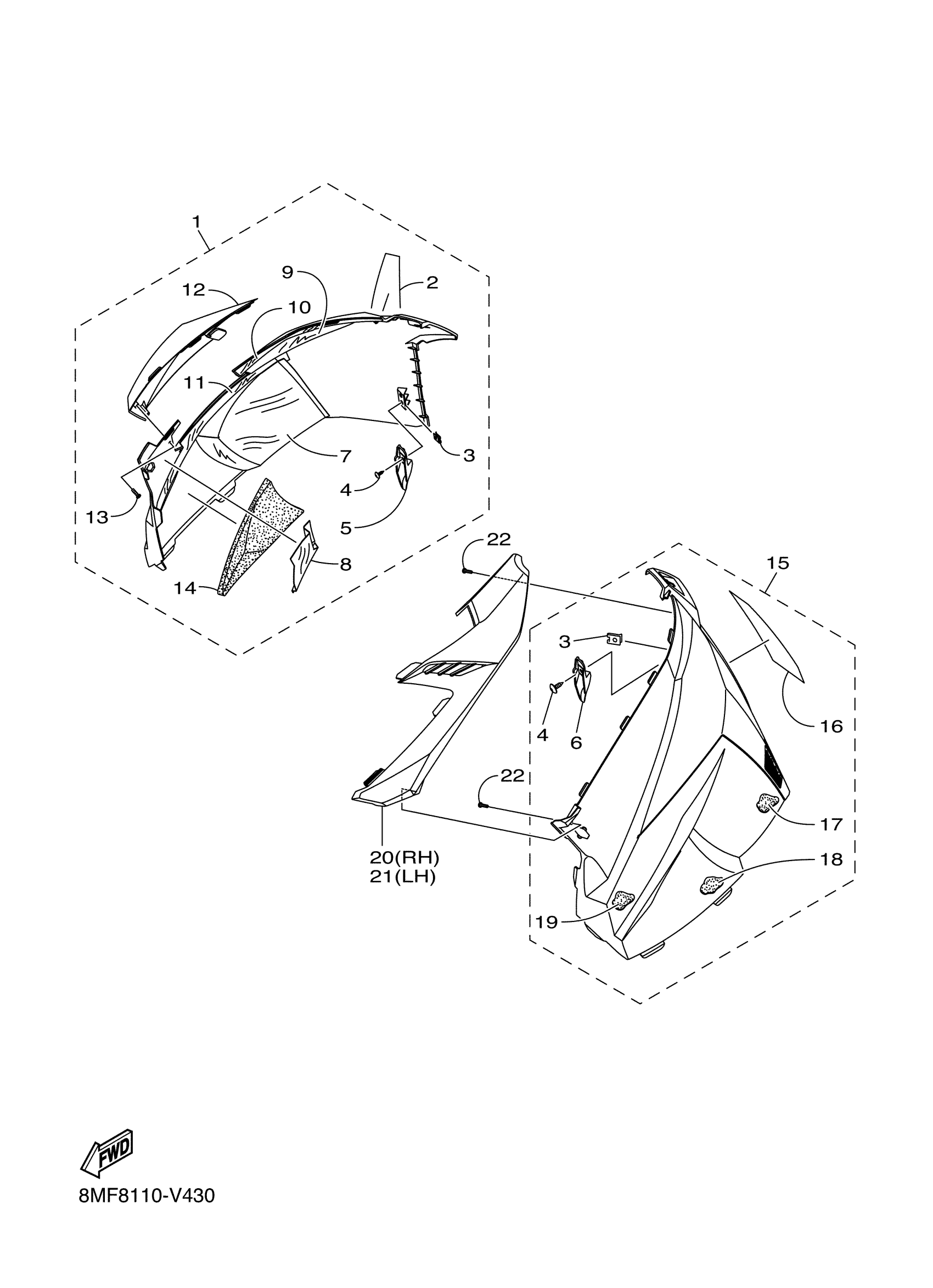

Yamaha SW1NSRLLB (SIDEWINDER SRX LE) 8MY2 2020 SIDE PANEL Diagram

#

Description
Price

1

SHELL SIDE PANEL A

8KC-K8140-40-00

$297.99

2

LABEL, WARNING 1

8KC-K7761-70-00

Unavailable

3

NUT, CLIP 10

8JP-RA352-00-00

$1.64

4

SCREW, 10-12X3/4

8KC-RA290-00-00

$1.86

5

HOOK 2

8KC-K715T-00-00

$3.18

6

HOOK 1

8KC-K715S-00-00

Unavailable

7

PROTECTOR 2

8KC-K7552-00-00

Unavailable

8

PROTECTOR 1

8KC-K7551-01-00

Unavailable

9

PROTECTOR 3

8KC-K7553-01-00

$14.99

10

PROTECTOR 4

8KC-K7554-00-00

$4.61

11

PROTECTOR 5

8KC-K7555-00-00

$36.99

12

VENT, SIDE 1

8KC-K715U-00-00

$36.99

13

SCREW, 4

8KC-RA238-00-00

Unavailable

14

DAMPER, NOISE 18

8KC-K7278-00-00

$18.99

15

SHELL SIDE PANEL A

8KC-K8130-40-00

$215.99

16

LABEL, WARNING 1

8NJ-K7761-S0-00

Unavailable

17

DAMPER, NOISE 19

8KC-K7279-00-00

Unavailable

18

DAMPER, NOISE 17

8KC-K7277-00-00

Unavailable

19

DAMPER, NOISE 17

8KC-K7277-10-00

Unavailable

20

SHROUD

8MG-K7111-00-00

Unavailable

21

SHROUD 2

8MG-K7112-00-00

Unavailable

22

SCREW, 4

8KC-RA238-00-00

Unavailable
