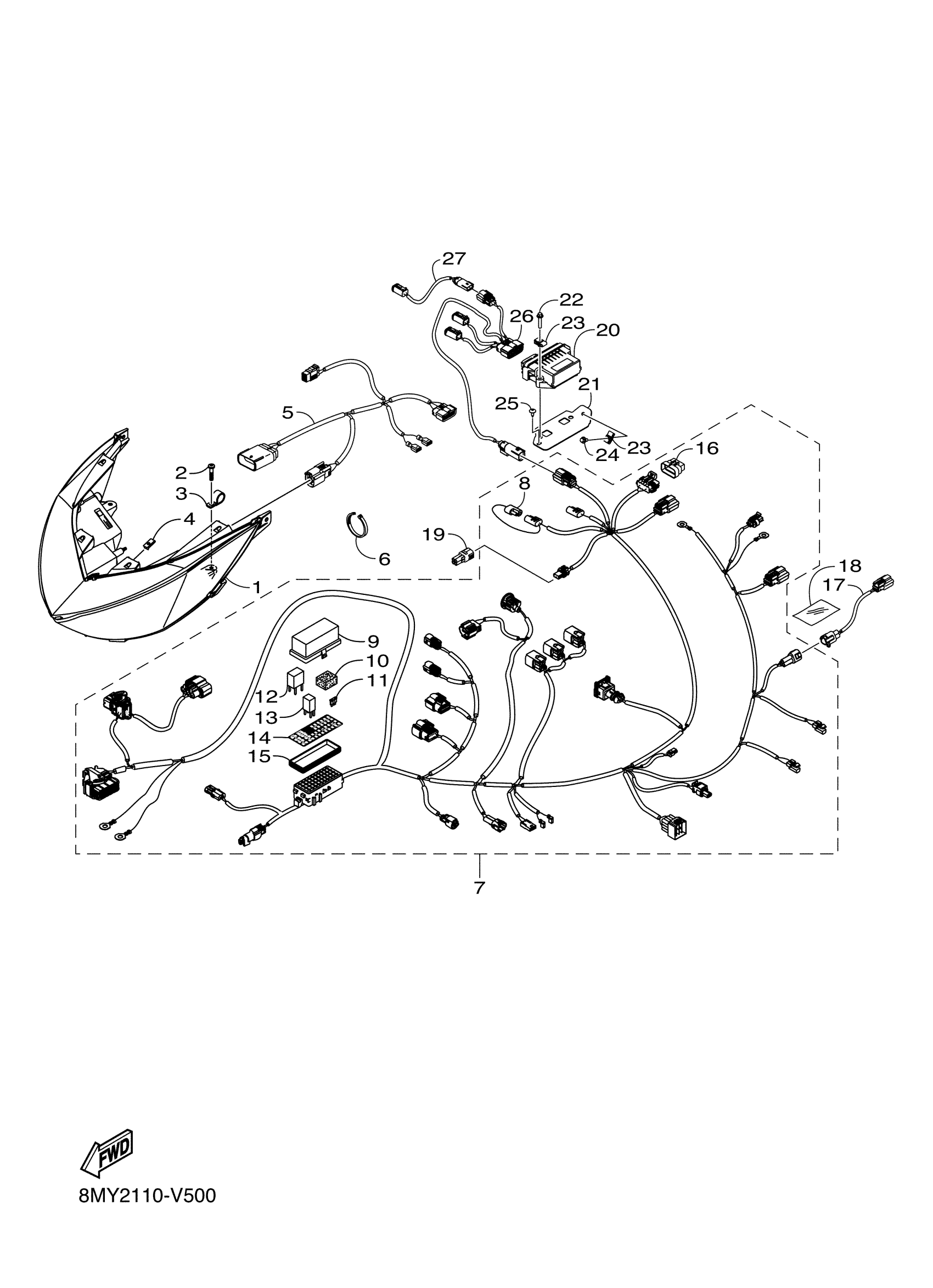

Yamaha SW1NSRLLB (SIDEWINDER SRX LE) 8MY2 2020 ELECTRICAL 1 Diagram
#
1
HEADLIGHT UNIT ASS
8KC-H4310-00-00
$551.99
2
SCREW, TAPPING 1/4
8JP-RA284-00-00
Unavailable
3
CLAMP, 17
8JP-RAB19-00-00
Unavailable
4
NUT, CLIP M6X1.0
8JP-RA355-00-00
$1.16
5
WIRE HARNESS
8KC-H2105-00-00
$86.99
6
TIE, CABLE-8.5/7.5/7.4
8JM-RAB01-00-00
Unavailable
6
CLAMP, 1 (4-INCH)
8JP-RAB03-00-00
Unavailable
6
CLAMP, 2 (11.5 INCH)
8JP-RAB04-00-00
Unavailable
7
WIRE HARNESS ASSY
8NN-H2590-00-00
$562.99
8
. ANCHOR, CABLE 1
8JP-G8352-00-00
Unavailable
9
COVER, FUSE BOX
8JP-H2172-00-00
$8.49
10
. HOLDER, FUSE
8JP-H2152-00-00
Unavailable
11
FUSE (15A)
8JP-H2151-00-00
$2.92
11
FUSE (20A)
8JP-H2151-10-00
$3.81
11
FUSE (25A)
8JP-H2151-20-00
$4.77
11
FUSE (30A)
8JP-H2151-30-00
Unavailable
12
RELAY 1
8MS-H2185-00-00
Unavailable
13
RELAY 2
8MS-H2189-00-00
Unavailable
14
EMBLEM 1
8KC-R2391-00-00
Unavailable
15
GASKET, HOLE COVER
8JP-H1365-00-00
Unavailable
16
COVER, CONNECTER
8JP-H1662-10-00
Unavailable
17
EXT,WIRE HARNESS
8JR-H2586-00-00
Unavailable
18
TAPE,ALUM FOIL - 6" X 30 FT
8JM-F199H-00-00
Unavailable
19
COVER, CONNECTER
8JP-H1662-20-00
Unavailable
20
CONTROLLER ASSY
8NG-H6100-01-00
Unavailable
21
PLATE, CONTROLLER
8MY-H6141-00-00
Unavailable
22
BOLT, FLG. M6X1.0X
8JP-RA183-00-00
Unavailable
23
NUT, CLIP M6
8JP-RA354-00-00
Unavailable
24
BOLT, FLANGE
8JP-RA100-00-00
Unavailable
25
SCREW, 10-12X3/4
8KC-RA290-00-00
Unavailable
26
WIRE HARNESS
8MY-H2105-00-00
Unavailable
27
WIRE, SUB LEAD
8MY-H2509-00-00
Unavailable
