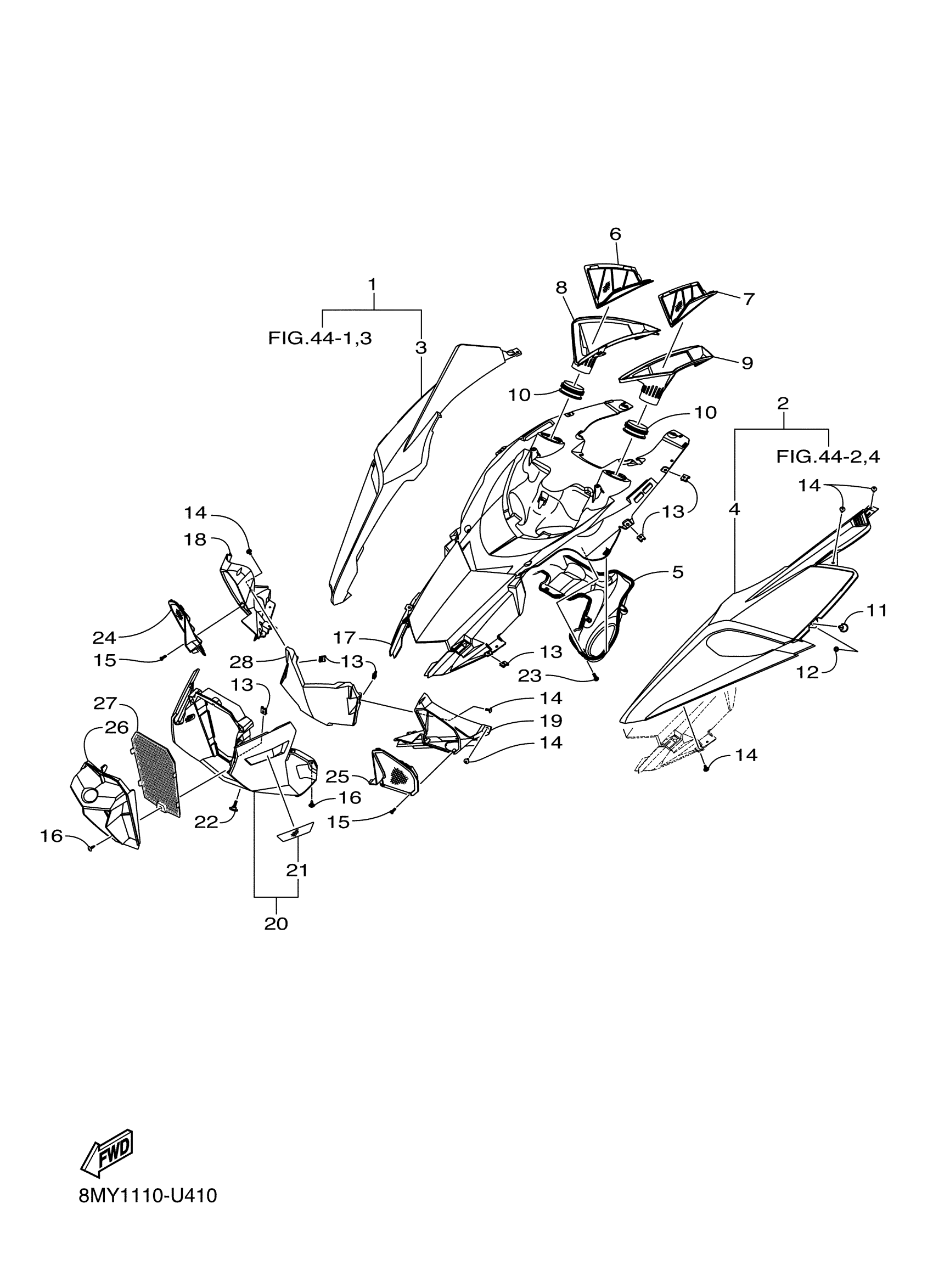

Yamaha SW1NSRLKL (SIDEWINDER SRX LE) 8MY1 2019 SHROUD Diagram

#

Description
Price

1

HOOD 2

8KC-K7122-00-00

$198.99

2

HOOD 1

8KC-K7121-00-00

$198.99

3

HOOD 2

8KC-K7122-00-00

$198.99

4

HOOD 1

8KC-K7121-00-00

$198.99

5

INTAKE, LOWER

8KC-K715B-00-00

Unavailable

6

SCREEN, INTAKE DUC

8KC-K715E-00-00

Unavailable

7

SCREEN, INTAKE DUC

8KC-K715D-00-00

Unavailable

8

DUCT, INTAKE 2

8KC-K715G-00-00

$16.99

9

DUCT, INTAKE 1

8KC-K715F-00-00

$21.99

10

SEAL, INTAKE

8KC-K715R-00-00

$4.29

11

PIN, 2

8JP-RAK02-00-00

$26.99

12

NUT, 1

8JP-RA345-00-00

Unavailable

13

NUT, CLIP 10

8JP-RA352-00-00

$1.64

14

SCREW, TAPPING 1/4

8JP-RA202-00-00

$1.86

15

SCREW, 4

8KC-RA238-00-00

Unavailable

16

SCREW, 10-12X3/4

8KC-RA290-00-00

Unavailable

17

INTAKE, UPPER

8KC-K715C-00-00

Unavailable

18

VENT, FRONT 2

8KC-K715J-10-00

Unavailable

19

VENT, FRONT 1

8KC-K715H-10-00

Unavailable

20

DUCT, INTAKE FRON

8NA-K715K-00-00

Unavailable

21

TAPE,REFLECTOR

8MY-H5133-00-00

Unavailable

22

SCREW, 5

8KC-RA239-00-00

Unavailable

23

SCREW, 13

8JP-RA2A2-00-00

Unavailable

24

BEZEL, VENT 2

8KC-K715M-00-00

Unavailable

25

BEZEL, VENT 1

8KC-K715L-00-00

Unavailable

26

GRILLE

8KC-K715N-00-00

Unavailable

27

GUIDE 1

8KC-K7123-00-00

Unavailable

28

SHUT, INTAKE

8KC-K715P-00-00

Unavailable
