- SW1NSLR (SIDEWINDER S TX GT) 8NJ1 2020
TRACK SUSPENSION 2

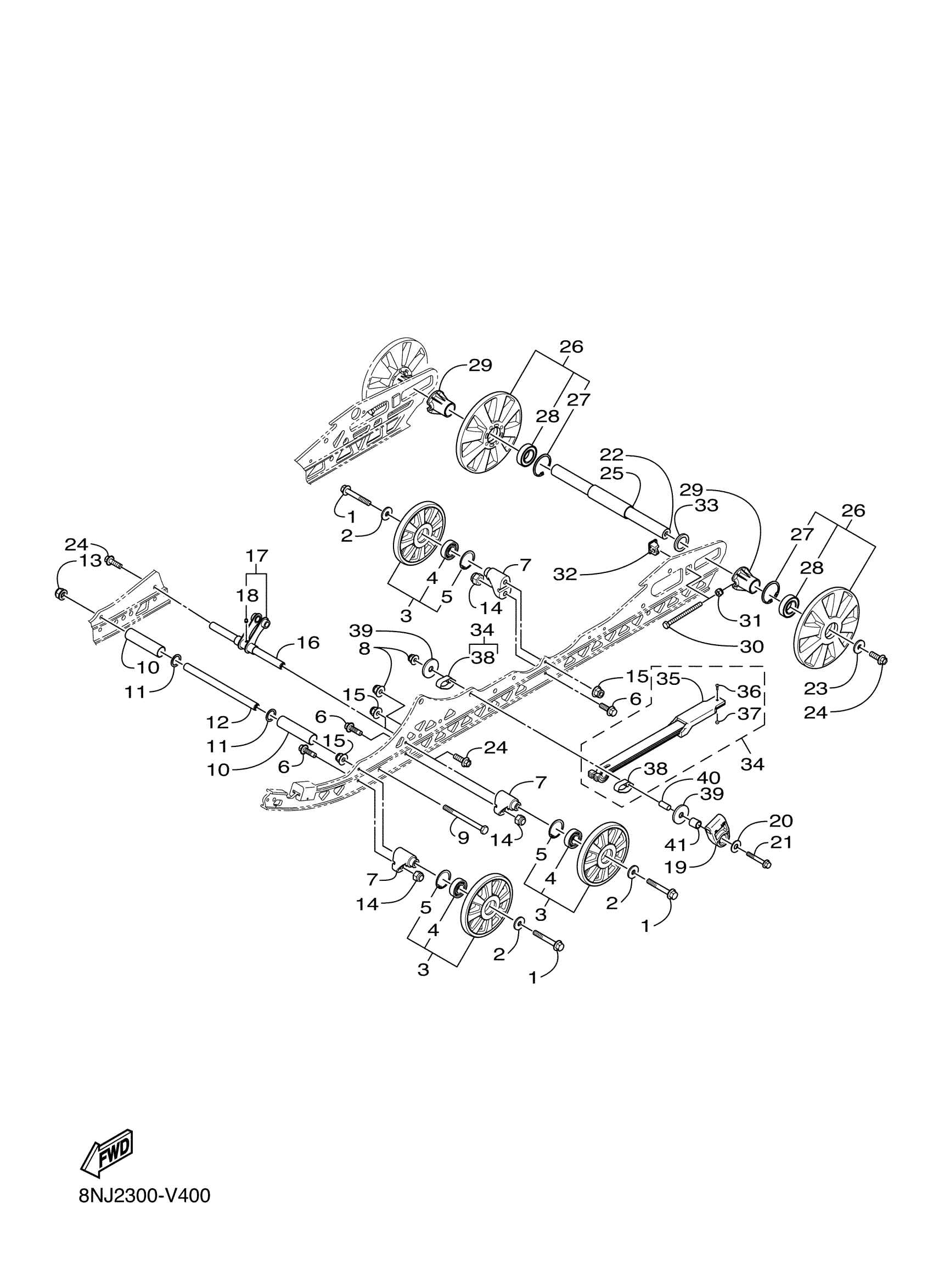

Yamaha SW1NSLR (SIDEWINDER S TX GT) 8NJ1 2020 TRACK SUSPENSION 2 Diagram
#
1
BOLT, FLANGE 1
8JP-RA1B5-00-00
$3.88
2
WASHER, 9
8JP-RA466-00-00
$1.75
3
SUSPENSION WHEEL A
8JR-G7310-20-00
$47.99
4
BRNG,WHL-NSK CHINA6004-W/ENS G
8JM-RAY03-00-00
$25.99
5
CIRCLIP, 2
8JM-RAH01-00-00
$8.49
6
BOLT, FLANGE 2
8JP-RA1B6-00-00
$1.16
7
BRACKET 7
8JP-G7419-10-00
$10.49
8
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
$1.06
9
BOLT, FLG. M10-1.2
8JP-RA194-10-00
$9.49
10
COLLAR, 11
8JP-RA723-00-00
$15.99
11
WASHER, 0.890X1.19
8JP-RA437-00-00
Unavailable
12
COLLAR, 22.2
8JP-RA729-00-00
$73.99
13
LOCK NUT
8JP-RA378-01-00
$0.96
14
NUT, LOCK 1
8JP-RA379-00-00
$0.54
15
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
16
SHAFT 6
8JP-G7488-10-00
Unavailable
17
BRACKET, ARM PIVOT
8JX-G7349-10-00
Unavailable
18
NIPPLE, GREASE 1
8JP-RAL01-00-00
Unavailable
19
HOOK 1
8LN-G7446-00-00
Unavailable
20
WASHER, 9.12X25.40
8JP-RA452-00-00
Unavailable
21
BOLT, FLG. M8X1.25
8JP-RA192-00-00
Unavailable
22
AXLE, REAR
8JP-G7521-20-00
Unavailable
23
WASHER, M10X29
8JP-RA453-00-00
Unavailable
24
BOLT, FLG. M10X1.2
8JP-RA199-00-00
Unavailable
25
COLLAR, 18
8JY-RA734-00-00
Unavailable
26
GUIDE WHEEL ASSY
8NN-G7550-00-00
Unavailable
27
CIRCLIP, 2
8JM-RAH01-10-00
Unavailable
28
BEARING, 2
8JM-RAY03-10-00
Unavailable
29
WHEEL, GUIDE 1
8JP-G7534-10-00
Unavailable
30
BOLT, HEX. M8X1.25
8JP-RA1B1-00-00
Unavailable
31
NUT, HEX. LOCKING
8JP-RA372-00-00
Unavailable
32
BRACKET 5
8JP-G7463-00-00
Unavailable
33
WASHER, 25X36X2
8JP-RA447-00-00
Unavailable
34
SPRING GUIDE SUB-A
8MJ-F2260-00-00
Unavailable
35
SLIDER 1
8MJ-G7441-00-00
Unavailable
36
SCREW, SET
8MJ-RA292-00-00
Unavailable
37
.. NUT, SELF-LOCKING
8JP-RA360-30-00
Unavailable
38
CLIP, 1
8MJ-RAC10-00-00
Unavailable
39
WASHER
8JP-G7359-10-00
Unavailable
40
BUSH, 12DU12
8MJ-RA806-00-00
Unavailable
41
SPACER
8MJ-G7341-00-00
Unavailable
