Description

Price

1

FRAME, SLIDING

8LN-G741A-10-00

$210.99

2

COLLAR, 13

8JP-RA725-00-00

$4.14

3

SHAFT 3

8JP-G7485-00-00

$53.99

4

BOLT, FLG. M8X1.25

8JP-RA186-00-00

$0.54

5

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.07

6

RUNNER, SLIDING 2

8JP-G7422-10-00

Unavailable

7

SCREW, M6X1.0X30

8JP-RA266-00-00

$1.43

8

NUT, FLG. LOCKING

8JP-RA357-00-00

$0.54

9

RUNNER, SLIDING 1

8LN-G7421-10-00

$45.99

10

SCREW,MACH-PHFH 1/4-20 X 1 1/8

8JM-RA206-00-00

$1.43

11

RIVET, SOLID - 1/8 X 1.50

8JM-RAY02-00-00

$1.06

12

PAD, SHOCK - RUBBER

8JM-G7456-00-00

$7.49

13

NUT, 0.125

8JP-RA346-00-00

$1.64

14

NUT, FLG. LOCKING

8JP-RA363-00-00

$1.16

15

DAMPER 2

8JP-G7457-00-00

$9.49

16

SCREW, M5X0.8X40

8JP-RA249-00-00

Unavailable

17

NUT

8JP-G7368-00-00

Unavailable

18

BOLT, FLG. M10X1.2

8JP-RA199-00-00

Unavailable

19

STOPPER, CONT. 1

8JP-G745D-00-00

Unavailable

20

NUT

8LN-G7368-00-00

Unavailable

21

NUT,HEX FLG-NYL LOCK M8X1.25

8JM-RA301-00-00

Unavailable

22

BUSH, PIVOT

8MJ-G7371-00-00

Unavailable

23

BOLT, HEX. M8X1.25

8JP-RA1B2-00-00

Unavailable

24

TRACK ASSY

8LN-G7110-00-00

Unavailable

25

PLATE,RNFCMNT

8JR-G7113-00-00

Unavailable

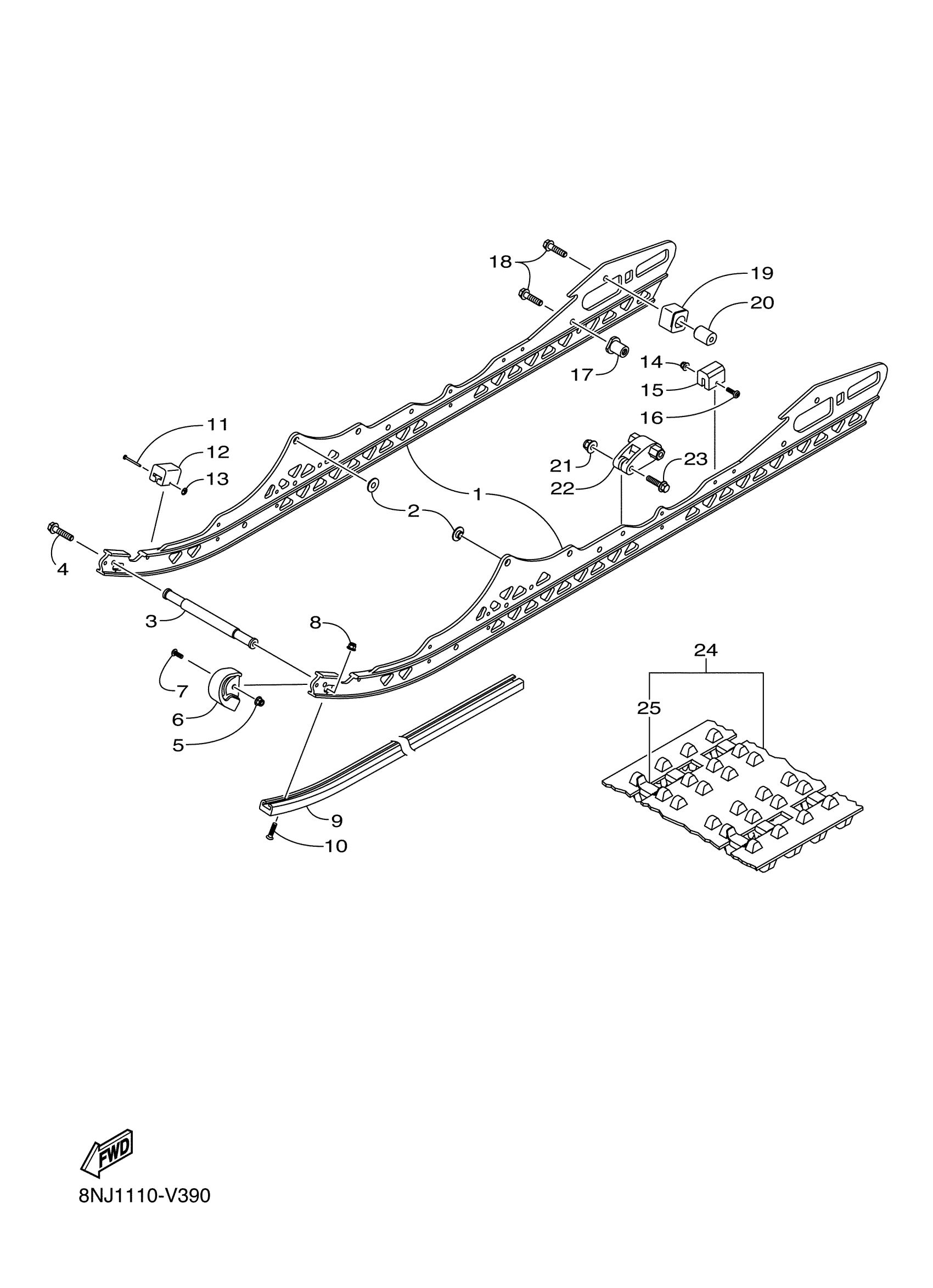

Yamaha SW1NSLR (SIDEWINDER S TX GT) 8NJ1 2020 TRACK SUSPENSION 1 Diagram

FRAME, SLIDING

COLLAR, 13

SHAFT 3

BOLT, FLG. M8X1.25

NUT,FLG. M6-1.0

RUNNER, SLIDING 2

SCREW, M6X1.0X30

NUT, FLG. LOCKING

RUNNER, SLIDING 1

SCREW,MACH-PHFH 1/4-20 X 1 1/8

RIVET, SOLID - 1/8 X 1.50

PAD, SHOCK - RUBBER

NUT, 0.125

NUT, FLG. LOCKING

DAMPER 2

SCREW, M5X0.8X40

NUT

BOLT, FLG. M10X1.2

STOPPER, CONT. 1

NUT

NUT,HEX FLG-NYL LOCK M8X1.25

BUSH, PIVOT

BOLT, HEX. M8X1.25

TRACK ASSY

PLATE,RNFCMNT
