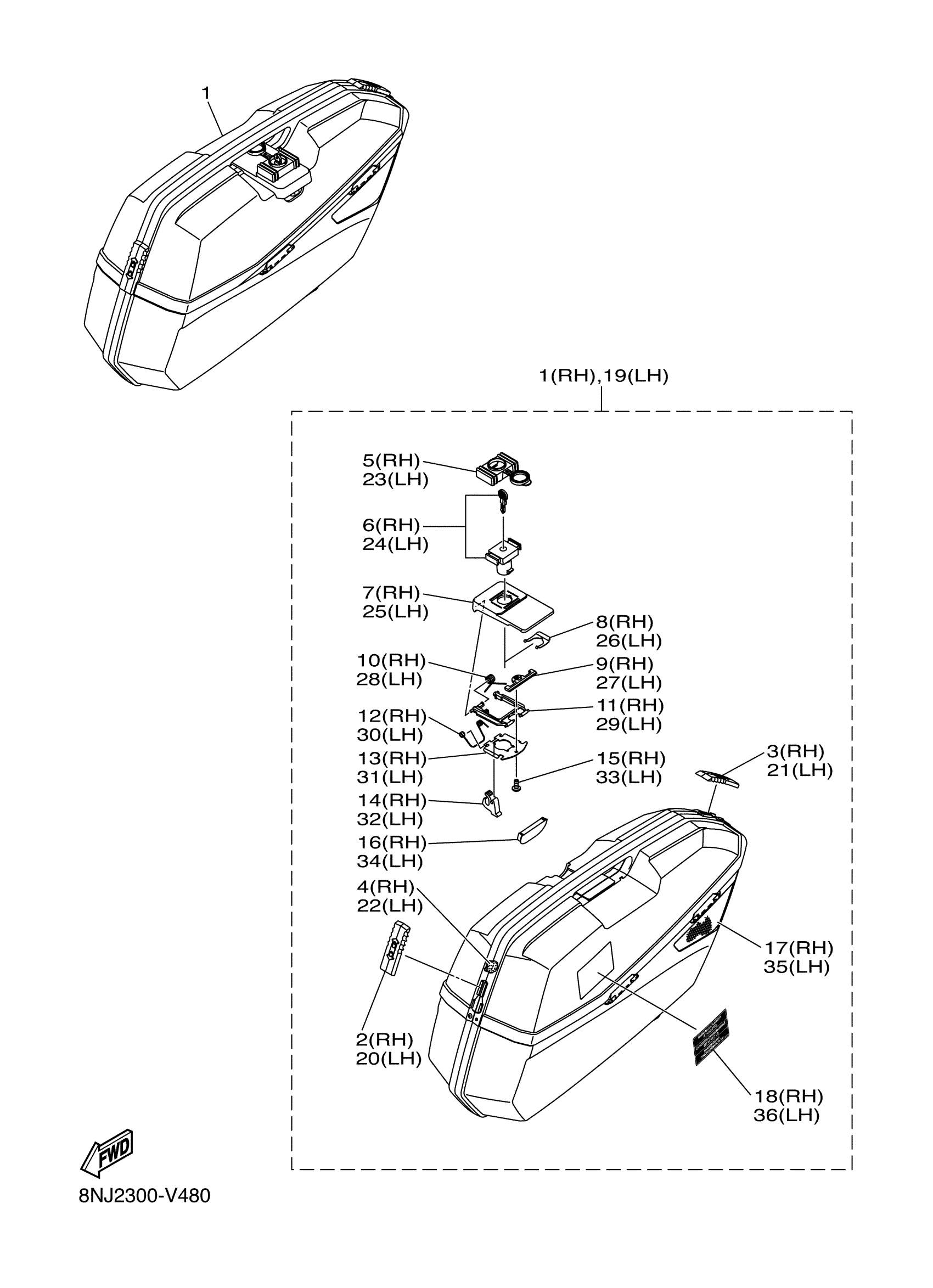

Yamaha SW1NSLR (SIDEWINDER S TX GT) 8NJ1 2020 STORAGE BOX Diagram
#
1
BOX, SIDE 2
8MU-F846D-00-00
$418.99
2
BODY, LATCH 2
8MU-K7172-00-00
$4.99
3
BODY, LATCH 4
8MU-K7182-00-00
Unavailable
4
SEAL
8MU-F475M-00-00
Unavailable
5
COVER
8MU-F4796-00-00
$10.49
6
KEY SET (FOR SWTCH
8MU-H250A-01-00
Unavailable
7
HANDLE, LATCH
8MU-F389F-00-00
Unavailable
8
CLIP
8MU-F4387-00-00
Unavailable
9
RETAINER
8MU-H5757-00-00
$15.99
10
SPRING
8MU-F479A-00-00
$7.49
11
HINGE
8MU-F4859-00-00
Unavailable
12
SPRG. 2
8MU-F479E-00-00
Unavailable
13
PLATE, LOCK
8MU-F479K-00-00
Unavailable
14
HOOK, SEAT
8MU-F4754-00-00
Unavailable
15
SCREW, TAPPING
8JP-RA291-00-00
Unavailable
16
STOPPER
8MU-F4768-00-00
Unavailable
17
REFLECTOR, 2
8MU-H334B-00-00
Unavailable
18
.. LABEL
8MU-F415C-00-00
Unavailable
19
BOX, SIDE 1
8MU-F846C-00-00
Unavailable
20
BODY, LATCH 1
8MU-K7171-00-00
Unavailable
21
BODY, LATCH 3
8MU-K7181-00-00
Unavailable
22
SEAL
8MU-F475M-00-00
Unavailable
23
COVER
8MU-F4796-00-00
$10.49
24
KEY SET (FOR SWTCH
8MU-H250A-01-00
Unavailable
25
HANDLE, LATCH
8MU-F389F-00-00
Unavailable
26
CLIP
8MU-F4387-00-00
Unavailable
27
RETAINER
8MU-H5757-00-00
$15.99
28
SPRING
8MU-F479A-00-00
$7.49
29
HINGE
8MU-F4859-00-00
Unavailable
30
SPRG. 2
8MU-F479E-00-00
Unavailable
31
PLATE, LOCK
8MU-F479K-00-00
Unavailable
32
HOOK, SEAT
8MU-F4754-00-00
Unavailable
33
SCREW, TAPPING
8JP-RA291-00-00
Unavailable
34
STOPPER
8MU-F4768-00-00
Unavailable
35
REFLECTOR 1
8MU-H333B-00-00
Unavailable
36
.. LABEL
8MU-F415C-00-00
Unavailable
