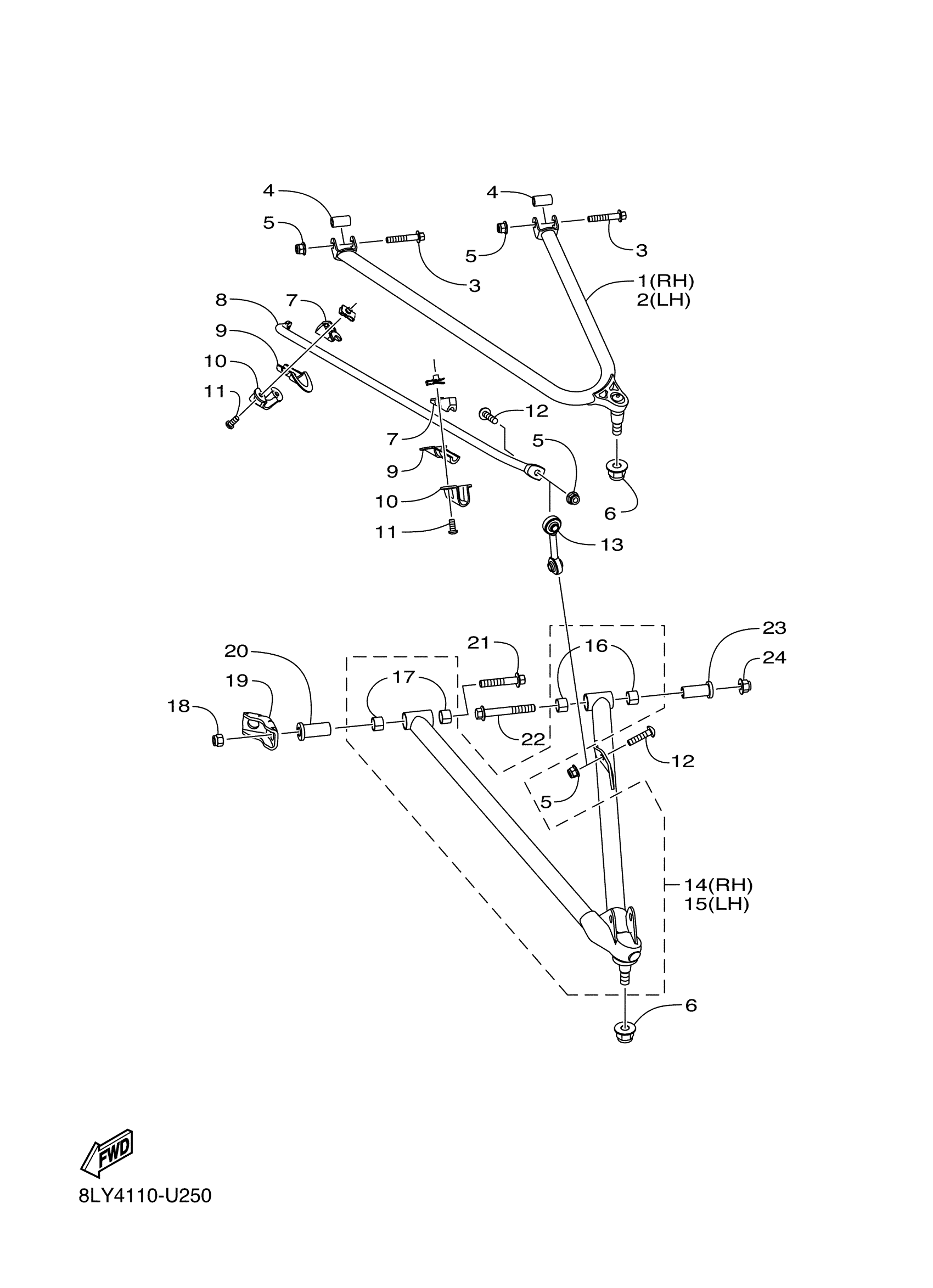

Yamaha SW1NSLR (SIDEWINDER S TX GT) 8NJ1 2020 FRONT SUSPENSION Diagram

#

Description
Price

1

ARM FRONT UPPER RH

8JP-F355A-40-00

Unavailable

2

ARM, FRONT UPPER

8JP-F354A-40-00

$200.99

3

BOLT, FLG. M8X1.25

8JP-RA190-00-00

$1.43

4

COLLAR, 8

8JP-RA720-00-00

$2.55

5

NUT,HEX FLG-NYL LOCK M8X1.25

8JM-RA301-00-00

$1.06

6

NUT, FLG. LOCKING

8JP-RA362-00-00

$1.75

7

HOLDER 2

8JP-F3867-00-00

$7.49

8

BAR, STABILIZER FR

8JP-F386E-00-00

$136.99

9

BUSH, STABILIZER F

8JP-F386G-00-00

$7.49

10

HOLDER, STABILIZER

8JP-F386C-00-00

Unavailable

11

SCREW, 1

8JP-RA235-00-00

Unavailable

12

SCREW, 1

8JP-RA235-10-00

$2.55

13

LINK, STABILIZER F

8JP-F386F-00-00

$42.99

14

ARM,FR. LWR. RH.

8JP-F358A-40-00

Unavailable

15

ARM,FR. LWR. LH.

8JP-F357A-40-00

$222.99

16

BUSH, 10DU10

8JP-RA807-00-00

Unavailable

17

BUSH, 1815DU

8JP-RA811-00-00

Unavailable

18

NUT, FLG. LOCKING

8JP-RA361-00-00

Unavailable

19

ARM, 1

8JP-F3543-00-00

Unavailable

20

COLLAR, 9

8JP-RA721-10-00

Unavailable

21

BOLT, FLG. M12X1.2

8JP-RA1A7-00-00

Unavailable

22

BOLT, FLG. M10-1.2

8JP-RA194-20-00

Unavailable

23

COLLAR, 7

8JP-RA719-00-00

Unavailable

24

NUT, FLG. LOCKING

8JP-RA360-00-00

Unavailable
