Description

Price

1

COVER, TAIL

8LN-F4756-00-00

Unavailable

2

HOLDER, LATCH

8LN-K7175-00-00

Unavailable

3

COVER, SIDE 2

8LN-F1721-00-00

$231.99

4

COVER, SIDE 1

8LN-F1711-00-00

Unavailable

5

BOX 1

8LN-F473R-00-00

Unavailable

6

LABEL

8LN-F415C-00-00

Unavailable

7

SCREW, 10-12X3/4

8KC-RA290-00-00

$1.86

8

COVER

8LN-F172W-00-00

$159.99

9

TERMINAL COMP.

8JP-H254B-10-00

$44.99

10

SCREW, TAPPING M6X

8JP-RA280-00-00

$1.75

11

NUT, CLIP M6

8JP-RA354-00-00

$0.96

12

SCREW, M6X1.0X20

8JP-RA261-00-00

Unavailable

13

COVER, SIDE 4

8LN-F1741-00-00

$206.99

14

COVER, SIDE 3

8LN-F1731-00-00

$197.99

15

LABEL, WARNING 2

8JP-K7762-S0-00

Unavailable

16

LABEL, WARNING 2

8JP-K7762-70-00

Unavailable

17

LABEL 3

8LN-F151F-00-00

Unavailable

18

LABEL 2

8LN-F151E-00-00

Unavailable

19

SEAL 1

8LN-F1732-00-00

Unavailable

20

SCREW,PT THD-TSTRH K60-2.69X16

8JM-RA200-00-00

Unavailable

21

BUMPER, REAR 1

8NJ-K7541-00-00

Unavailable

22

RIVET, 9

8JP-RA518-00-00

Unavailable

23

FRONT BUMPER COMP.

8KC-K7510-00-00

Unavailable

24

BRACKET, FRONT GUA

8KC-F194Y-00-00

Unavailable

25

RIVET, 3/16

8JP-RA528-00-00

Unavailable

26

CAP

8KC-K7517-00-00

Unavailable

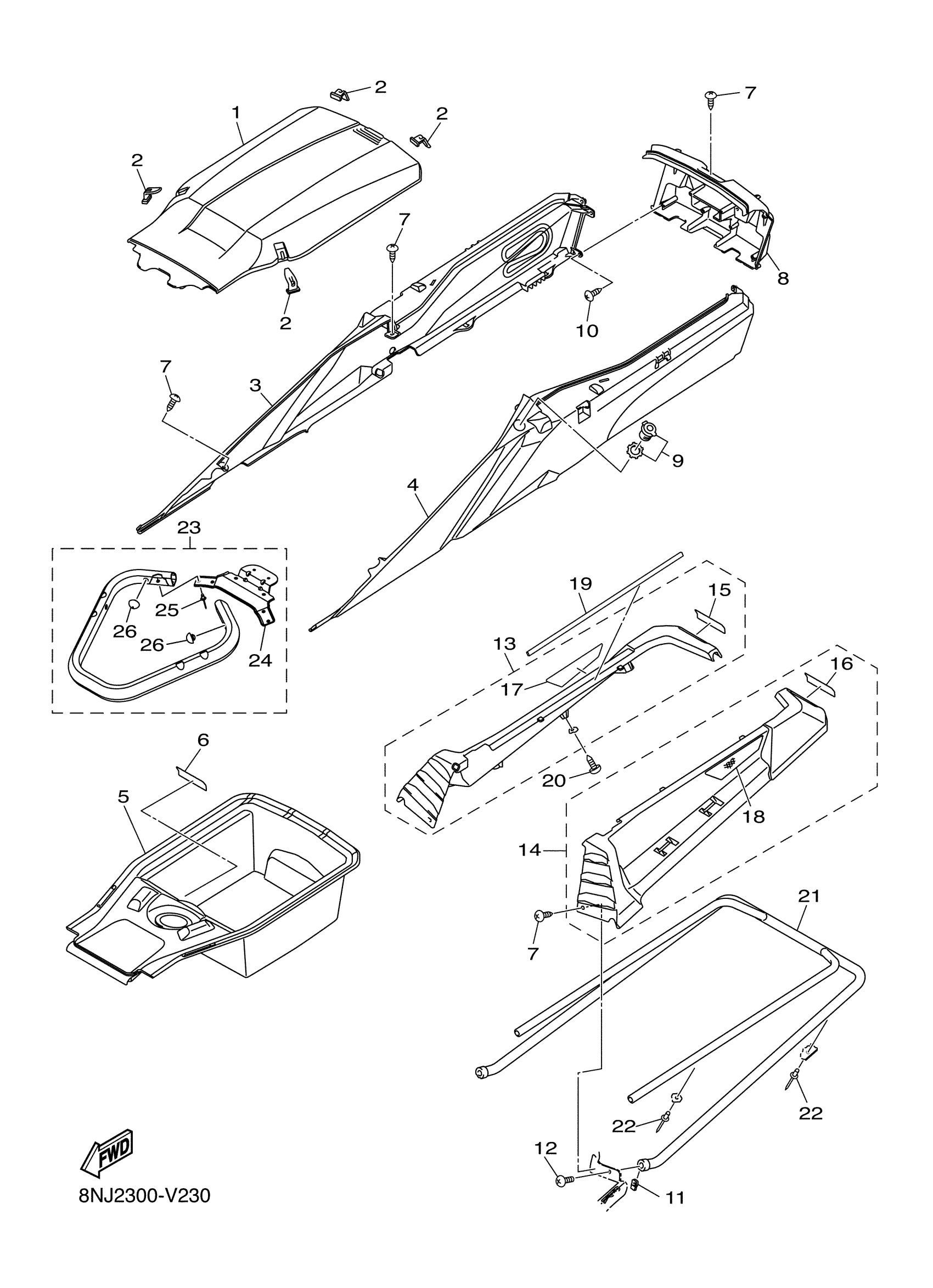

Yamaha SW1NSLR (SIDEWINDER S TX GT) 8NJ1 2020 BUMPER Diagram

COVER, TAIL

HOLDER, LATCH

COVER, SIDE 2

COVER, SIDE 1

BOX 1

LABEL

SCREW, 10-12X3/4

COVER

TERMINAL COMP.

SCREW, TAPPING M6X

NUT, CLIP M6

SCREW, M6X1.0X20

COVER, SIDE 4

COVER, SIDE 3

LABEL, WARNING 2

LABEL, WARNING 2

LABEL 3

LABEL 2

SEAL 1

SCREW,PT THD-TSTRH K60-2.69X16

BUMPER, REAR 1

RIVET, 9

FRONT BUMPER COMP.

BRACKET, FRONT GUA

RIVET, 3/16

CAP
