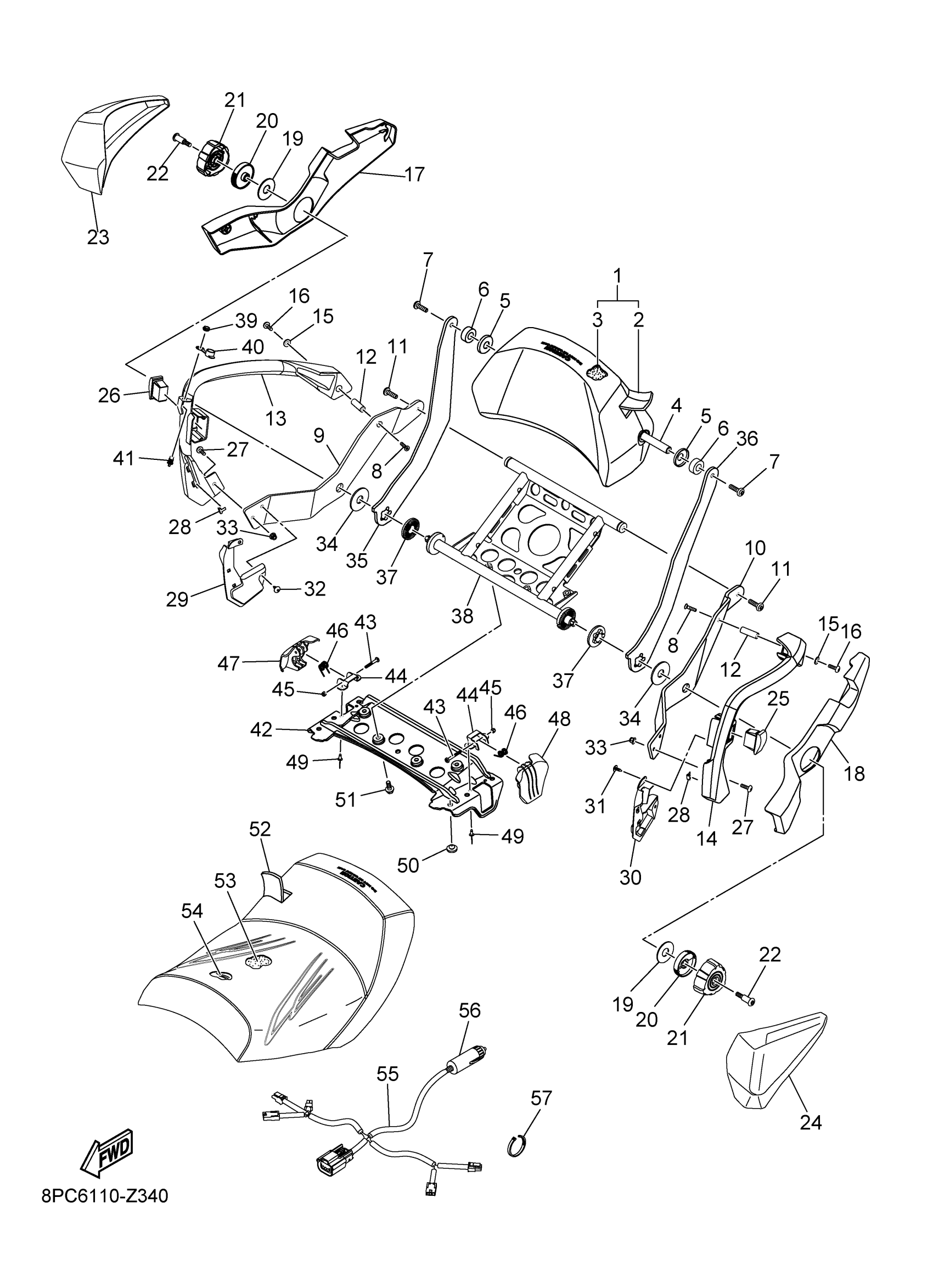

Yamaha SW1NSGPSR (SIDEWINDER STX GT EPS) 8PC8 2025 SEAT 2 Diagram
#
1
SEAT BACK ASSY
8MU-F4790-00-00
Unavailable
2
COVER, SEAT BACK
8MU-F4791-00-00
Unavailable
3
. CUSHION 1
8MU-F842R-00-00
Unavailable
4
SHAFT
8MU-F381E-00-00
Unavailable
5
WASHER, 1/4X0.625X
8MU-RA441-00-00
$11.49
6
SPACER
8MU-G7341-00-00
Unavailable
7
SCREW, 5
8JP-RA239-20-00
$21.99
8
SCREW
8JP-RA235-21-00
$5.60
9
BRKT., BODY MTG. 2
8MU-F2544-00-00
Unavailable
10
BRK., BODY MOUNTIN
8MU-F2543-00-00
Unavailable
11
SCREW, 1
8JP-RA235-00-00
Unavailable
12
SHAFT 1
8MU-F381K-00-00
$64.99
13
GRIP,ASSIST 2
8MU-K7572-01-00
$223.99
14
GRIP, ASSIST 1
8MU-K7571-00-00
$281.99
15
WASHER, PLAIN 5/16
8MU-RA403-00-00
$11.49
16
SCREW, M5X0.8X20
8JP-RA245-10-00
Unavailable
17
COVER, ARM REST 2
8MU-F843T-00-00
Unavailable
18
COVER, ARM REST 1
8MU-F843R-00-00
Unavailable
19
SPACER
8MU-G7341-10-00
Unavailable
20
TENSIONER
8MU-F2178-00-00
Unavailable
21
KNOB
8MU-F4288-00-00
Unavailable
22
BOLT
8MU-F3767-00-00
Unavailable
23
COVER, HANDLE UPPE
8MU-F6145-00-00
Unavailable
24
COVER, HANDLE UPPER 1
8MU-F6143-00-00
Unavailable
25
SWITCH
8JP-H2627-10-00
Unavailable
26
SWITCH ASSY
8MU-H259E-00-00
Unavailable
27
SCREW, M6X1.0X30
8JP-RA265-00-00
Unavailable
28
CLIP, 3
8JP-RAC12-00-00
Unavailable
29
COVER HARNESS 2
8MU-H722G-00-00
Unavailable
30
COVER HARNESS
8MU-H7228-00-00
Unavailable
31
SCREW, 10-12X3/4
8KC-RA290-00-00
Unavailable
32
SCREW,PT THD-TSTRH K60-2.69X16
8JM-RA200-00-00
Unavailable
33
NUT,FLG. M6-1.0
8JM-RA322-00-00
Unavailable
34
WASHER, SEAT
8MU-F4746-00-00
Unavailable
35
BRACKET, SEAT BACK
8MU-F479L-00-00
Unavailable
36
BRACKET, SEAT BACK
8MU-F4797-00-00
Unavailable
37
PLATE, LOCK 1
8MU-F471D-00-00
Unavailable
38
BASE SEAT SET
8MU-F472G-00-00
Unavailable
39
NUT
8LJ-K6169-00-00
Unavailable
40
COVER, 3
8LJ-K7563-00-00
Unavailable
41
PLUG, HEATER
8LJ-H3619-00-00
Unavailable
42
SEAT BASE, UNDER
8MU-F475B-00-00
Unavailable
43
SCREW, M5X0.8X40
8JP-RA249-10-00
Unavailable
44
BRACKET, SEAT
8MU-F4718-00-00
Unavailable
45
. NUT, HEX LOCKING
8JP-RA370-00-00
Unavailable
46
SPRG., LOCK
8MU-F478H-00-00
Unavailable
47
RPT LATCH HANDLE RH
SMA-8LN2P-RH-00
Unavailable
48
HOOK, SEAT LEVER 1
8MU-F477J-00-00
Unavailable
49
RIVET, 3/16
8JP-RA528-00-00
Unavailable
50
DAMPER, RADIATOR
8JP-E2465-00-00
Unavailable
51
SCREW, M5X0.8X12
8JP-RA240-10-00
Unavailable
52
SEAT COVER COMP. ,
8MU-F470H-00-00
Unavailable
53
CUSHION
8MU-F4753-00-00
Unavailable
54
HEATER, SEAT 2
8MU-H2961-10-00
Unavailable
55
EXTENSION, WIRE HA
8MU-H2386-00-00
Unavailable
56
GROMMET
8MU-H4762-00-00
Unavailable
57
TIE, CABLE-8.5/7.5/7.4
8JM-RAB01-00-00
Unavailable
