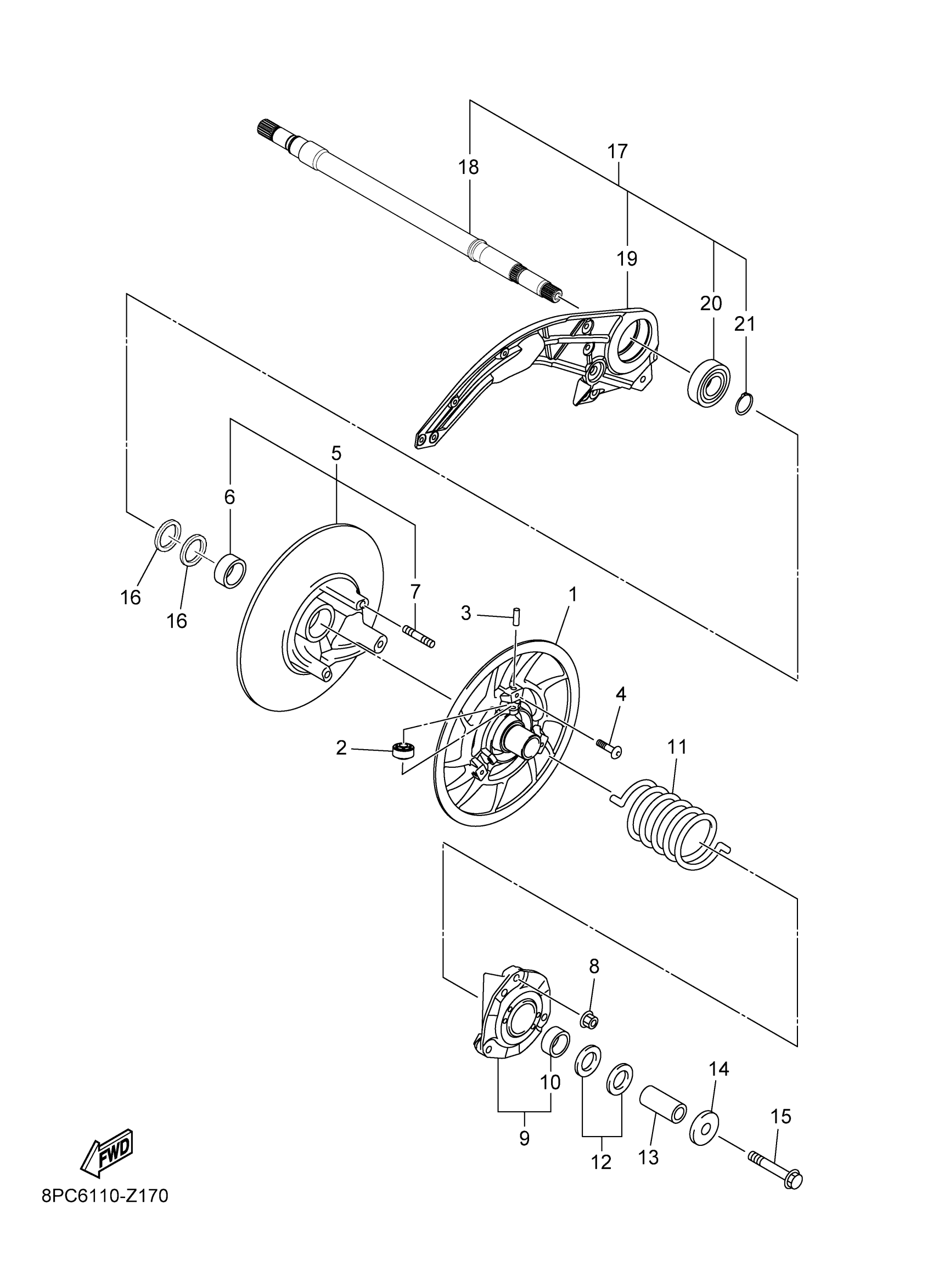

Yamaha SW1NSGPRL (SIDEWINDER STX GT EPS) 8PC6 2024 SECONDARY SHEAVE Diagram

#

Description
Price

1

SECONDARY FIXED SHEAVE COMP.

8KC-17660-00-00

$319.59

2

ROLLER, SHIFT LEVER

8KC-18178-01-00

$54.08

3

PIN, DOWEL (716)

93608-25148-00

$2.60

4

BOLT,HEX. SOCKET BUTTON

90111-05026-00

$6.34

5

SECONDARY SLIDING SHEAVE

8KC-17670-00-00

$297.82

6

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

$50.22

7

BOLT, STUD

95612-08635-00

$3.44

8

NUT(8BN)

90179-08655-00

$7.35

9

SEAT SPRING SET

8MA-17604-10-00

$64.42

10

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

$50.22

11

SPRING, TORSION

90508-60012-00

$39.96

12

WASHER, 25X36X1

8KC-RA446-00-00

$0.64

12

WASHER, 25X36X2

8KC-RA447-00-00

$0.59

13

COLLAR, 2

8KC-RA714-00-00

$7.02

14

WASHER, 10.5X33X4

8KC-RA442-00-00

$1.97

15

BOLT, FLG. M10X1.2

8JP-RA1A6-00-00

Unavailable

16

WASHER, 28X40X1

8JP-RA448-00-00

Unavailable

16

WASHER, 28X40X2

8JP-RA449-00-00

Unavailable

17

SECONDARY SHAFT CO

8JP-E7680-20-00

Unavailable

18

SHAFT, SECONDARY

8JP-E7681-30-00

Unavailable

19

HOUSING, BEARING

8JP-G7631-10-00

Unavailable

20

BEARING, 6206

8JP-RAG07-00-00

Unavailable

21

CIRCLIP, 1

8JP-RAH03-00-00

Unavailable
